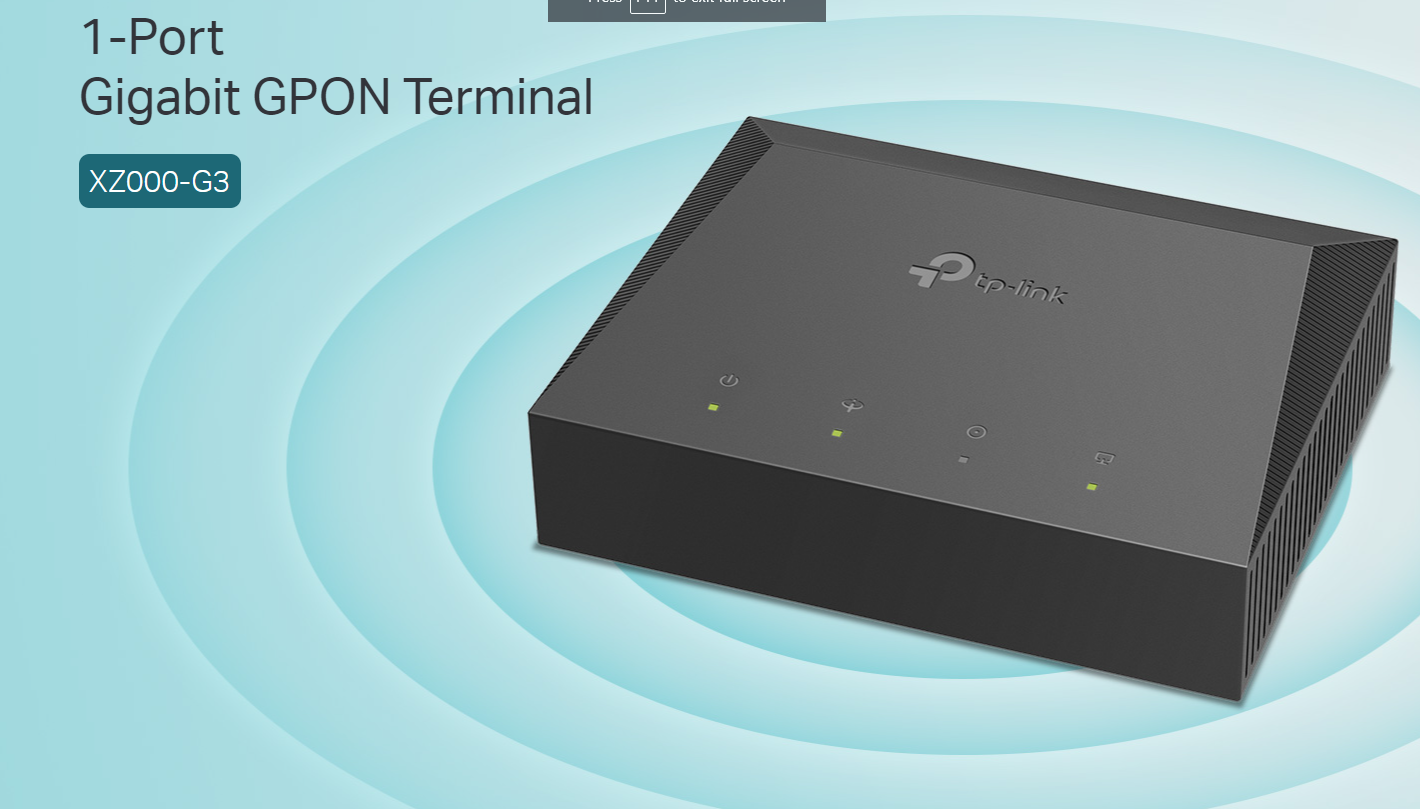

TP-Link XZ000-G3 / G7 Gigabit Terminal with Easy Remote Management

RM179.00 - RM209.00

Voucher

RM10.00 OFF
RM20.00 OFF
RM50.00 OFF
RM100.00 OFF
RM120.00 OFF
RM150.00 OFF

Product SKU

TL-XZ000-GX

Brand

TP-Link

color_family

TL-XZ000-G3
TL-XZ000-G7

Please select any variant

Quantity

1 unit available

Please input quantity

Description
Product Reviews

Highlights

XZ000-G3

Quality of Service: Quality of Service control for transaction prioritization and bandwidth management
Durability: Intelligent power-saving method
Easy Remote Management: TR-069 protocol enables an operator to remotely configure and manage end-user devices
Full Gigabit Port: Fiber access and gigabit port provide incredibly fast transfer speeds
3 Years TP-Link Local Manufacturer Warranty

XZ000-G7

Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds
XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
Durability: Intelligent power-saving method
Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

HARDWARE FEATURES

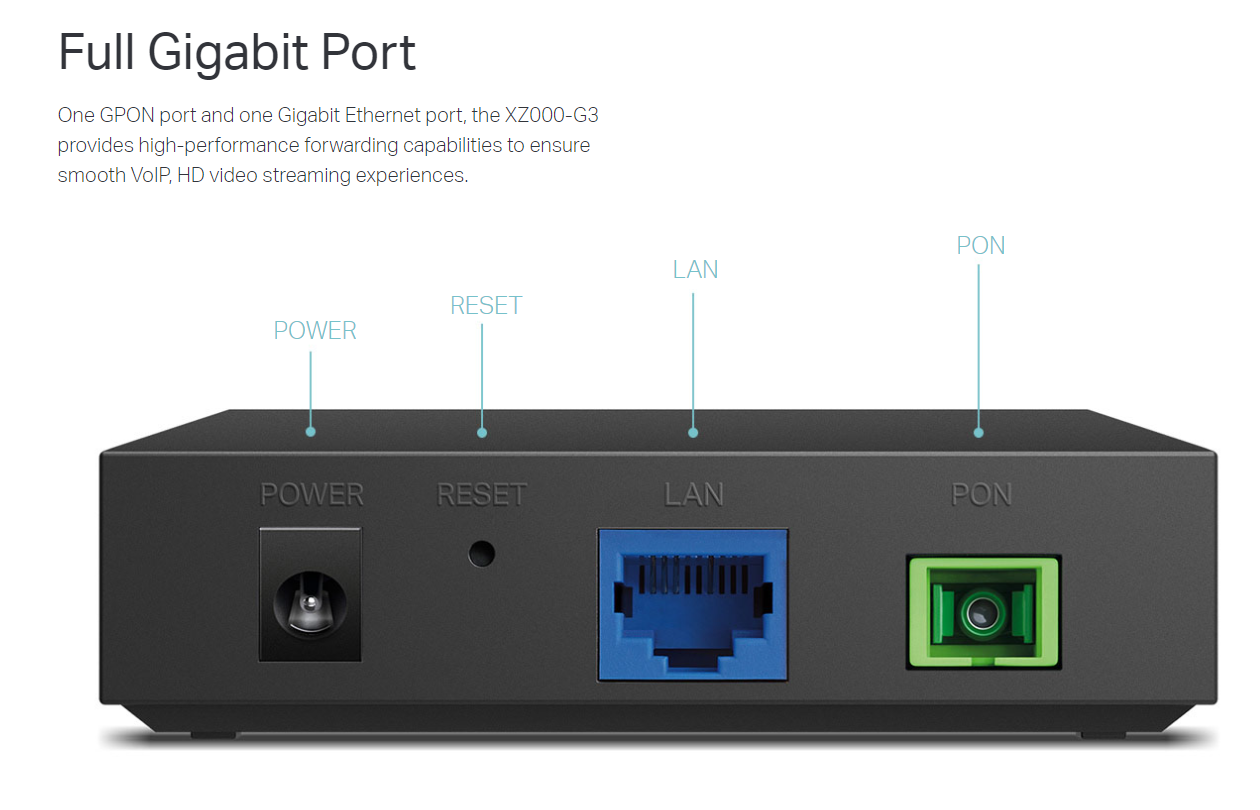

Interface	XZ000-G3 1 10/100/1000Mbps RJ45 Port, 1 SC/APC Port XZ000-G7 1 PON Port 1 10/100/1000 Mbps RJ45 Port
Button	1 Reset Button
External Power Supply	9VDC/0.6A
IEEE Standards	IEEE 802.3, 802.3u, 802.1p, 802.1Q

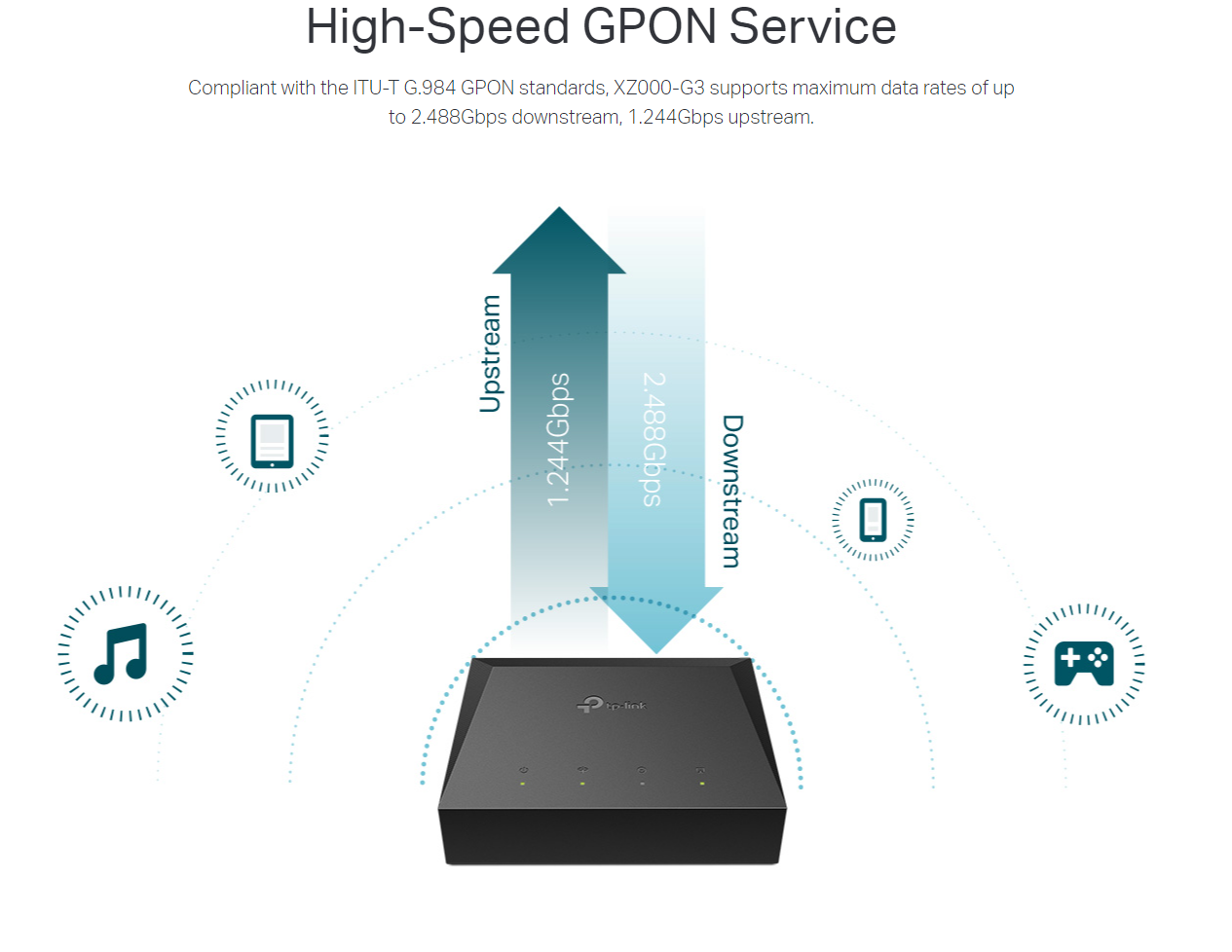

Data Rates	XZ000-G3 Upstream: 1.244Gbps Downstream: 2.488Gbps XZ000-G7 Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON) Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
Wavelength	Upstream: 1310 nm Downstream: 1490 nm
Dimensions ( W x D x H )	3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distance	0–20 Km Max
GPON Standards	ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical Module	Class B+
Receiver	Super-TIA
Transmitter	DFB Laser
SOFTWARE FEATURES
Advanced Features	XZ000-G3 Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection Dying Gasp Terminal Silent mechanism XZ000-G7 Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection Dying Gasp Terminal Silent mechanism
VLAN	802.1Q tag VLAN, VLAN transparent mode / VLAN translation mode / VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect
Security	AES Encryption, Packet Filter based on VLAN
Management	XZ000-G3 Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic XZ000-G7 Local management: WebGUI, Telnet Remote management: OMCI
IGMP	IGMP v1/v2/v3
OTHERS
Package Contents	XZ000-G3 XZ000-G3, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter XZ000-G7 XZ000-G7, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter
System Requirements	Microsoft Windows 8/7/Vista/XP, MAC OS, NetWare, UNIX or Linux
Certifications	XZ000-G3 CE, FCC, ROHS XZ000-G7 CE, RoHS
Environment	XZ000-G3 Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing XZ000-G7 Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
Warranty	3 years warranty

What's In The Box

1 x TP-Link XZ000-G3 / G7 Gigabit Terminal with Easy Remote Management
1 x FREE Exclusive Mystery Gift

Warranty

3 Years TP-Link Local Manufacturer Warranty

Highlights

XZ000-G3

Quality of Service: Quality of Service control for transaction prioritization and bandwidth management
Durability: Intelligent power-saving method
Easy Remote Management: TR-069 protocol enables an operator to remotely configure and manage end-user devices
Full Gigabit Port: Fiber access and gigabit port provide incredibly fast transfer speeds
3 Years TP-Link Local Manufacturer Warranty

XZ000-G7

Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds
XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
Durability: Intelligent power-saving method
Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

HARDWARE FEATURES
Interface	XZ000-G3 1 10/100/1000Mbps RJ45 Port, 1 SC/APC Port XZ000-G7 1 PON Port 1 10/100/1000 Mbps RJ45 Port
Button	1 Reset Button
External Power Supply	9VDC/0.6A
IEEE Standards	IEEE 802.3, 802.3u, 802.1p, 802.1Q
Data Rates	XZ000-G3 Upstream: 1.244Gbps Downstream: 2.488Gbps XZ000-G7 Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON) Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
Wavelength	Upstream: 1310 nm Downstream: 1490 nm
Dimensions ( W x D x H )	3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distance	0–20 Km Max
GPON Standards	ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical Module	Class B+
Receiver	Super-TIA
Transmitter	DFB Laser
SOFTWARE FEATURES
Advanced Features	XZ000-G3 Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection Dying Gasp Terminal Silent mechanism XZ000-G7 Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection Dying Gasp Terminal Silent mechanism
VLAN	802.1Q tag VLAN, VLAN transparent mode / VLAN translation mode / VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect
Security	AES Encryption, Packet Filter based on VLAN
Management	XZ000-G3 Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic XZ000-G7 Local management: WebGUI, Telnet Remote management: OMCI
IGMP	IGMP v1/v2/v3
OTHERS
Package Contents	XZ000-G3 XZ000-G3, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter XZ000-G7 XZ000-G7, RJ-45 Ethernet Cable, Quick Installation Guide, Power Adapter
System Requirements	Microsoft Windows 8/7/Vista/XP, MAC OS, NetWare, UNIX or Linux
Certifications	XZ000-G3 CE, FCC, ROHS XZ000-G7 CE, RoHS
Environment	XZ000-G3 Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing XZ000-G7 Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
Warranty	3 years warranty

What's In The Box

1 x TP-Link XZ000-G3 / G7 Gigabit Terminal with Easy Remote Management
1 x FREE Exclusive Mystery Gift

Warranty

3 Years TP-Link Local Manufacturer Warranty
