TP-Link TX201 2.5 Gigabit Ethernet PCIe Network Adapter

RM119.00

Product SKU

TL-TX201

Please select any variant

Quantity

5 unit available

Please input quantity

Highlights

Blazing Speed - 2.5 Gigabit Ethernet unlock the highest performance of your Multi-Gig bandwidth and devices. Whether local data transfer or Internet access, the TX201 is up to the task.

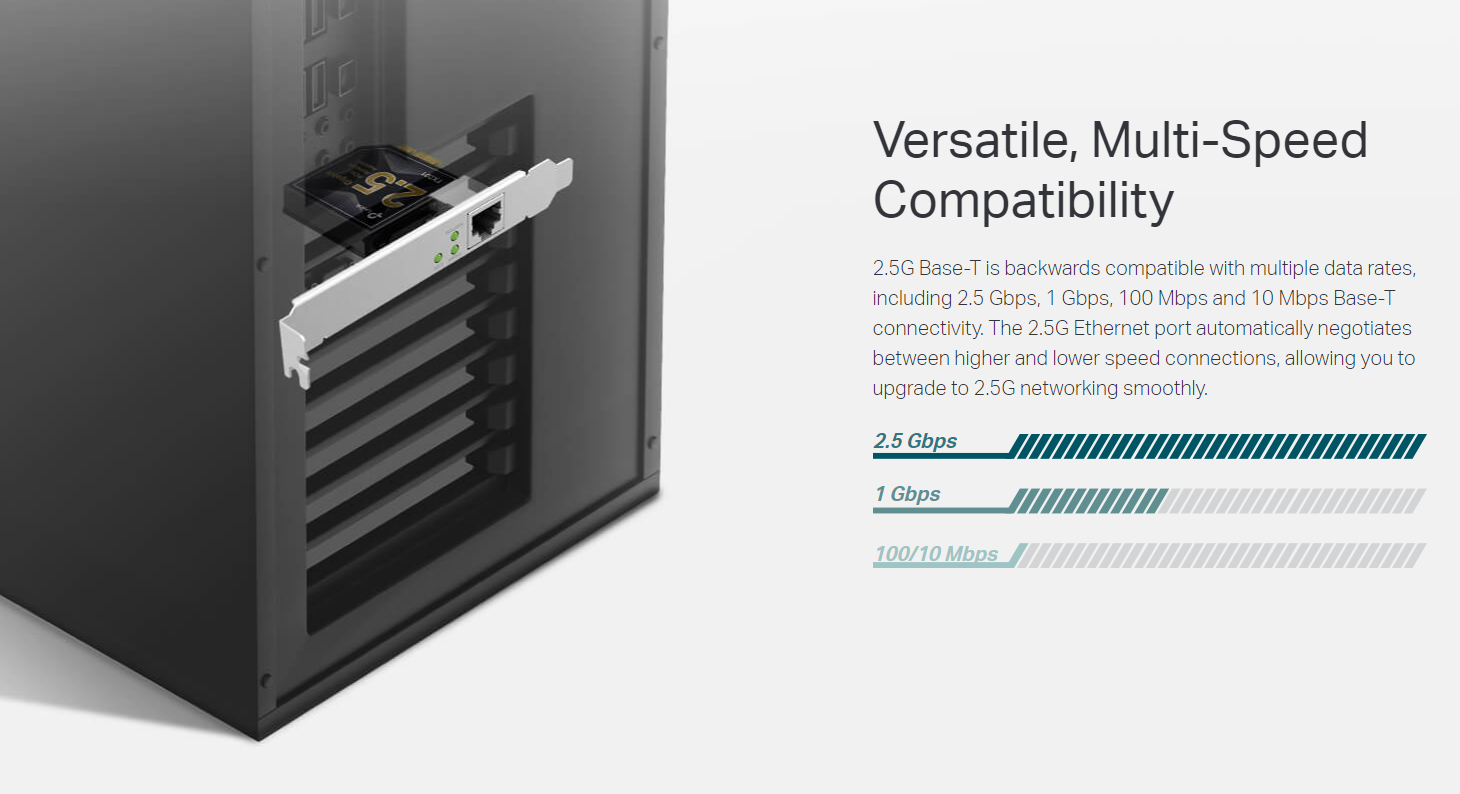

Versatile Compatibility - With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x

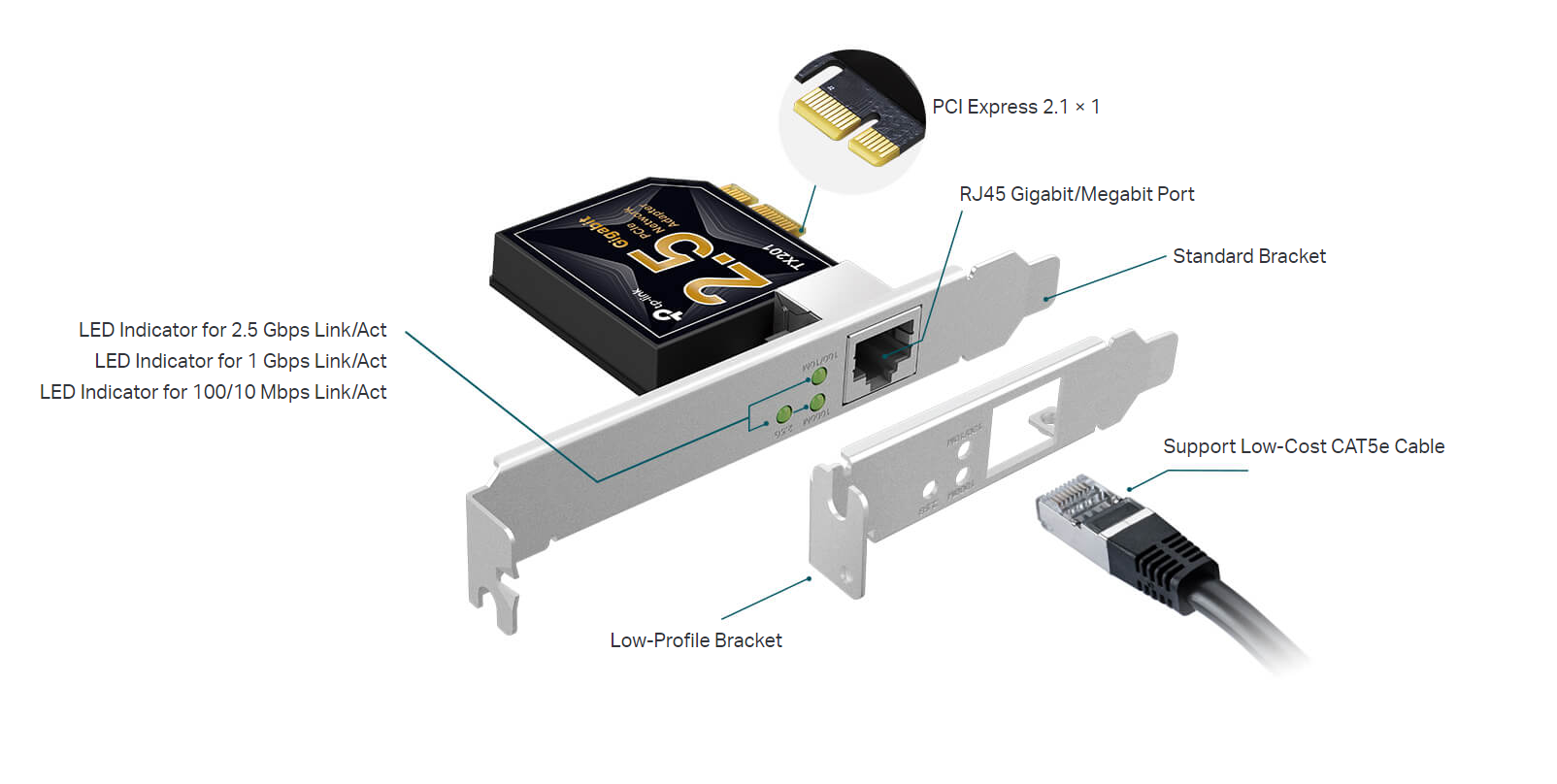

Interface	1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Network Media	2.5GBASE-T/1000BASE-T/100BASE-TX
LED	2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Data Rates	10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode, 20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Dimensions	120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control	802.3x
OTHERS
Certification	FCC, CE, RoHS
Package Contents	2.5 Gigabit PCIe Network Adapter (TX201) Standard/Low-Profile Brackets Quick Installation Guide Resource CD
System Requirements	Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	3 Years TP-Link Local Manufacturer Warranty

What’s in the Box

Warranty

Highlights

Blazing Speed - 2.5 Gigabit Ethernet unlock the highest performance of your Multi-Gig bandwidth and devices. Whether local data transfer or Internet access, the TX201 is up to the task.
Versatile Compatibility - With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Interface	1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Network Media	2.5GBASE-T/1000BASE-T/100BASE-TX
LED	2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Data Rates	10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode, 20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Dimensions	120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control	802.3x
OTHERS
Certification	FCC, CE, RoHS
Package Contents	2.5 Gigabit PCIe Network Adapter (TX201) Standard/Low-Profile Brackets Quick Installation Guide Resource CD
System Requirements	Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	3 Years TP-Link Local Manufacturer Warranty

What’s in the Box

Warranty
