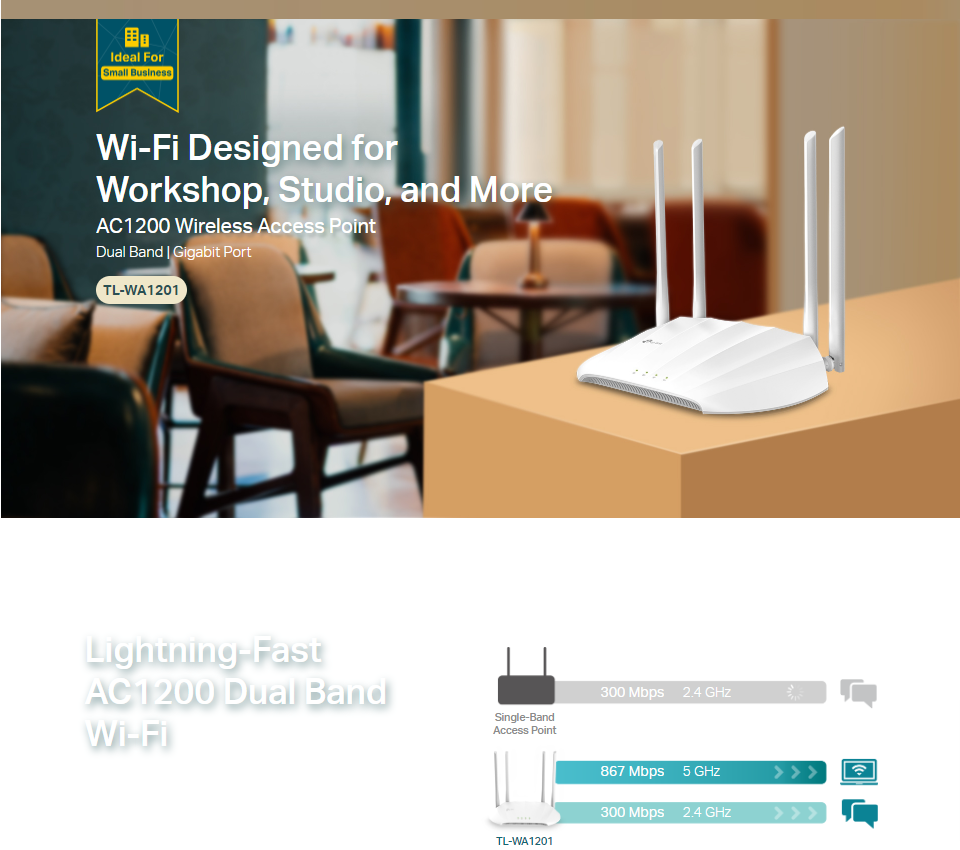

TP-Link TL-WA1201 AC1200 Wireless Business Access Point Dual-Band Wi-Fi with MU-MIMO Technology

HARDWARE FEATURES

Interface

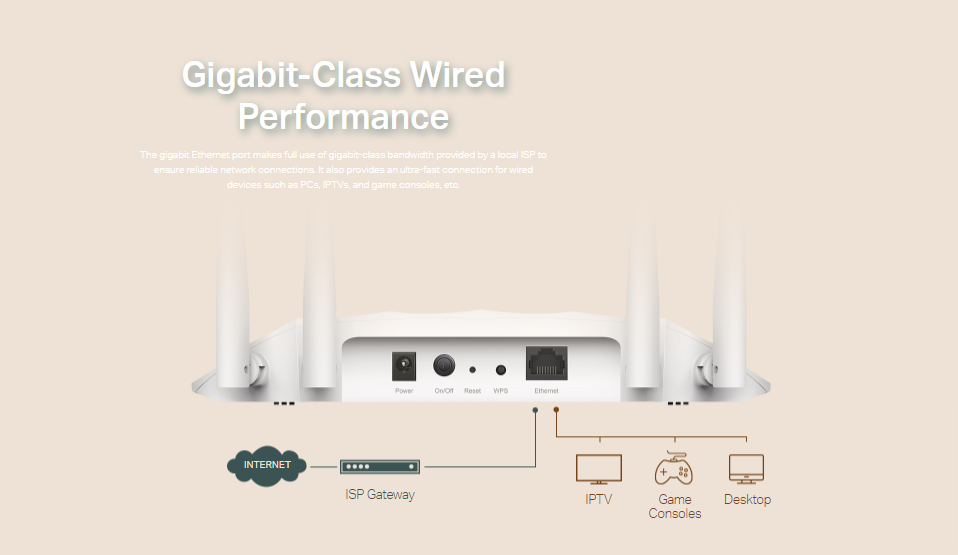

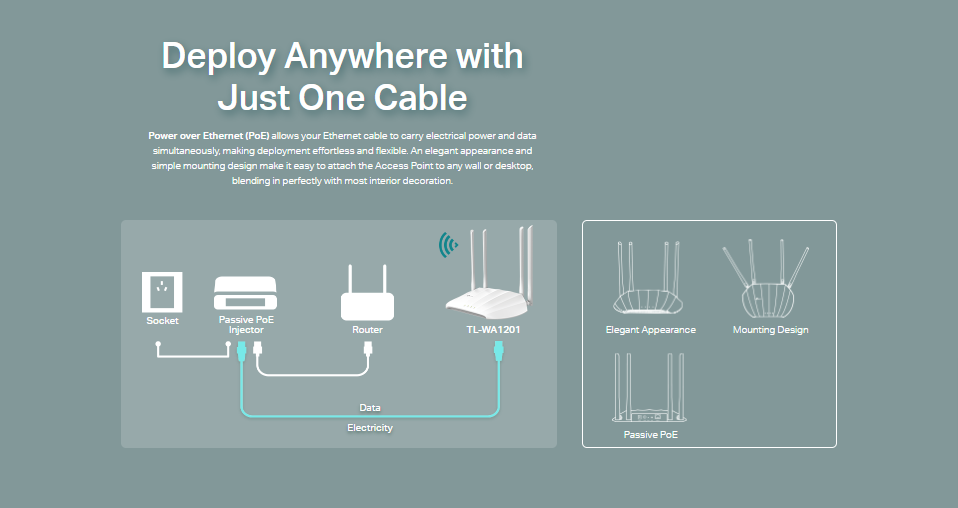

1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

External Power Supply

12V/1.5A

Wireless Standards

IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions ( W x D x H )

225×145.5×37 in (400×255×72 mm)

Antenna Type

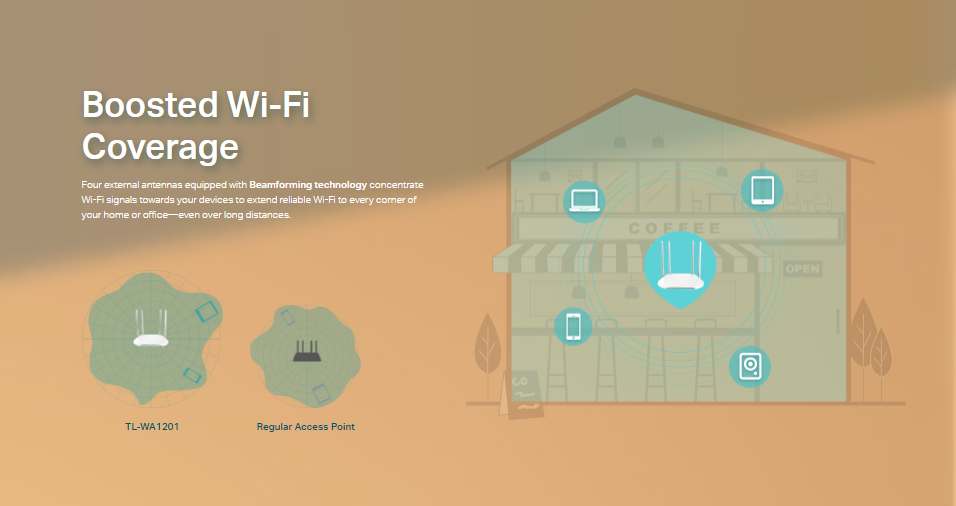

4 Fixed High Performance Antennas

WIRELESS FEATURES

Frequency

2.4 GHz and 5 GHz

Signal Rate

867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity

5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4 GHz: 11g 54Mbps: -78 dBm 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power

CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes

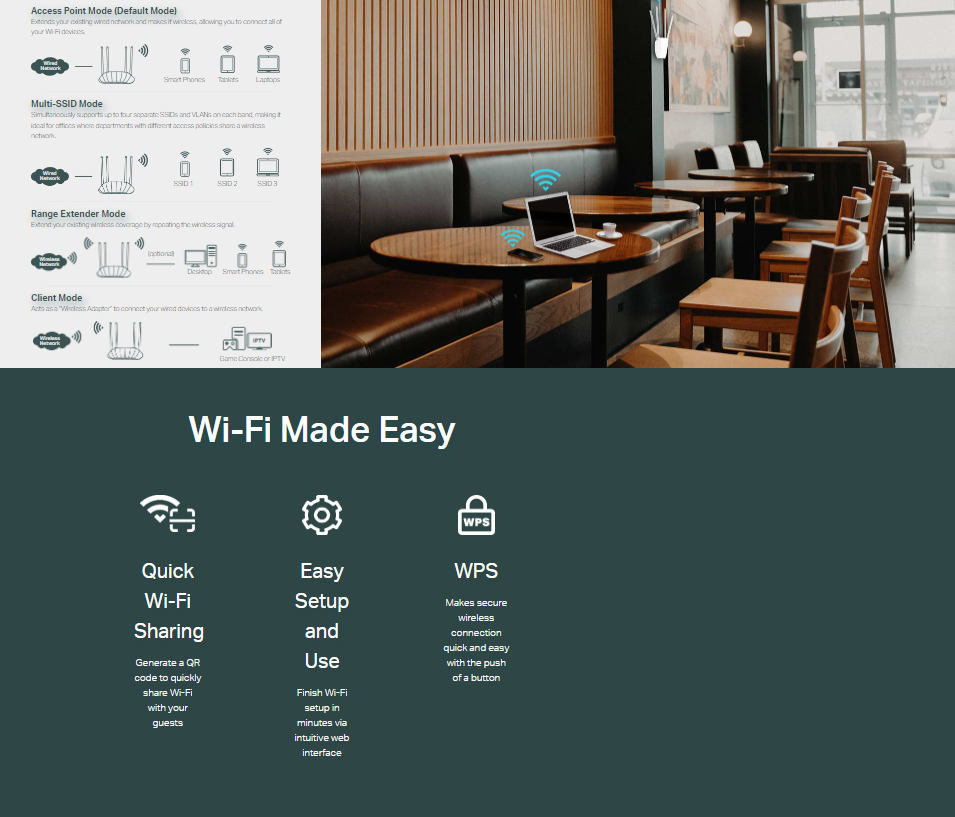

Access Point, Range Extender, Client, Multi-SSID

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP

Server, DHCP Client List

Quality of Service

WMM

Advanced Functions

Captive Portal

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Wireless Access Point TL-WA1201 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment

Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Protocol Support

IPv4, IPv6

Warranty

3 Years TP-Link Local Manufacturer Warranty
