Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter 100VAC ~ 240VAC (Output: 48VDC / 1.25A) |

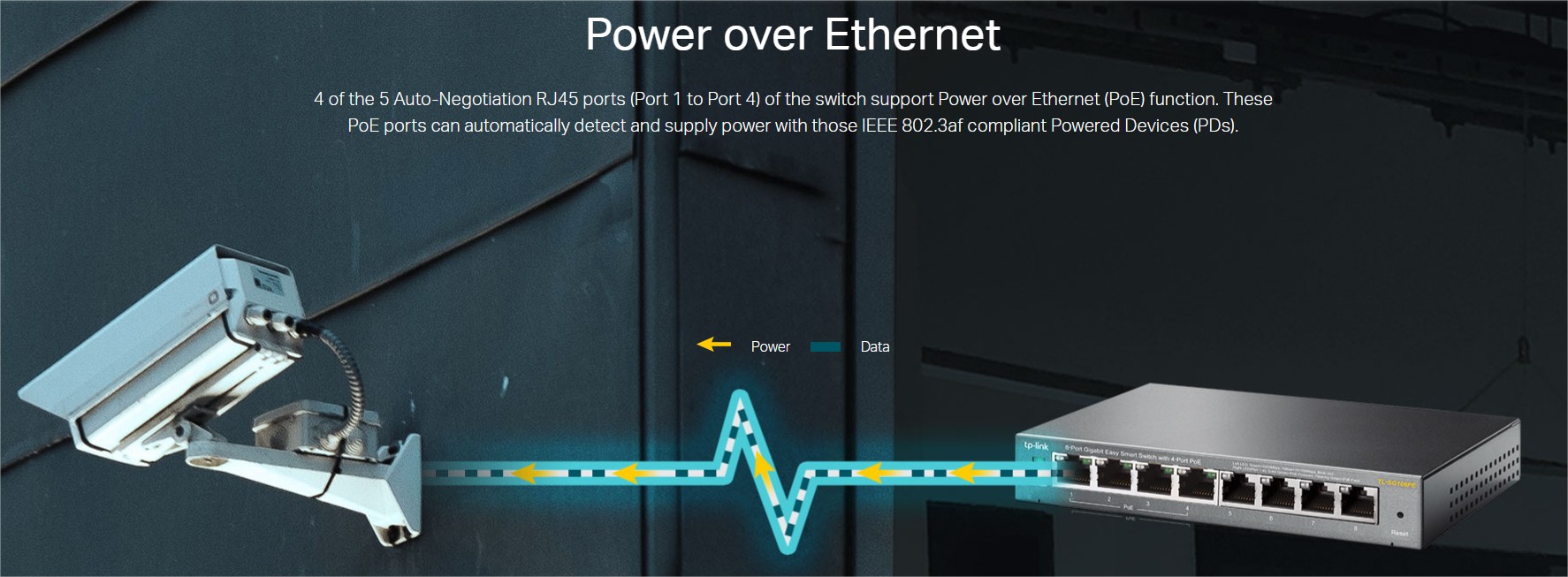

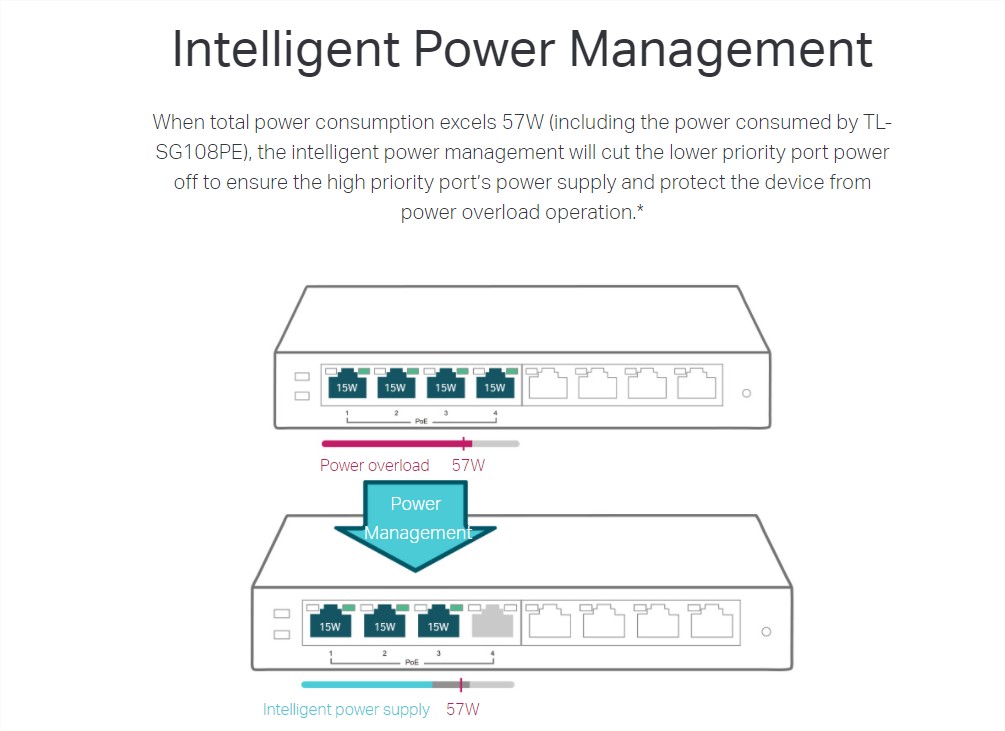

| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max Power Consumption | 5.2W with no PoE device connected 65.2W with 55W PoE devices connected |
| Max Heat Dissipation | 17.6 BTU/h (with no PD connected) 222.4 BTU/h (with 55W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |

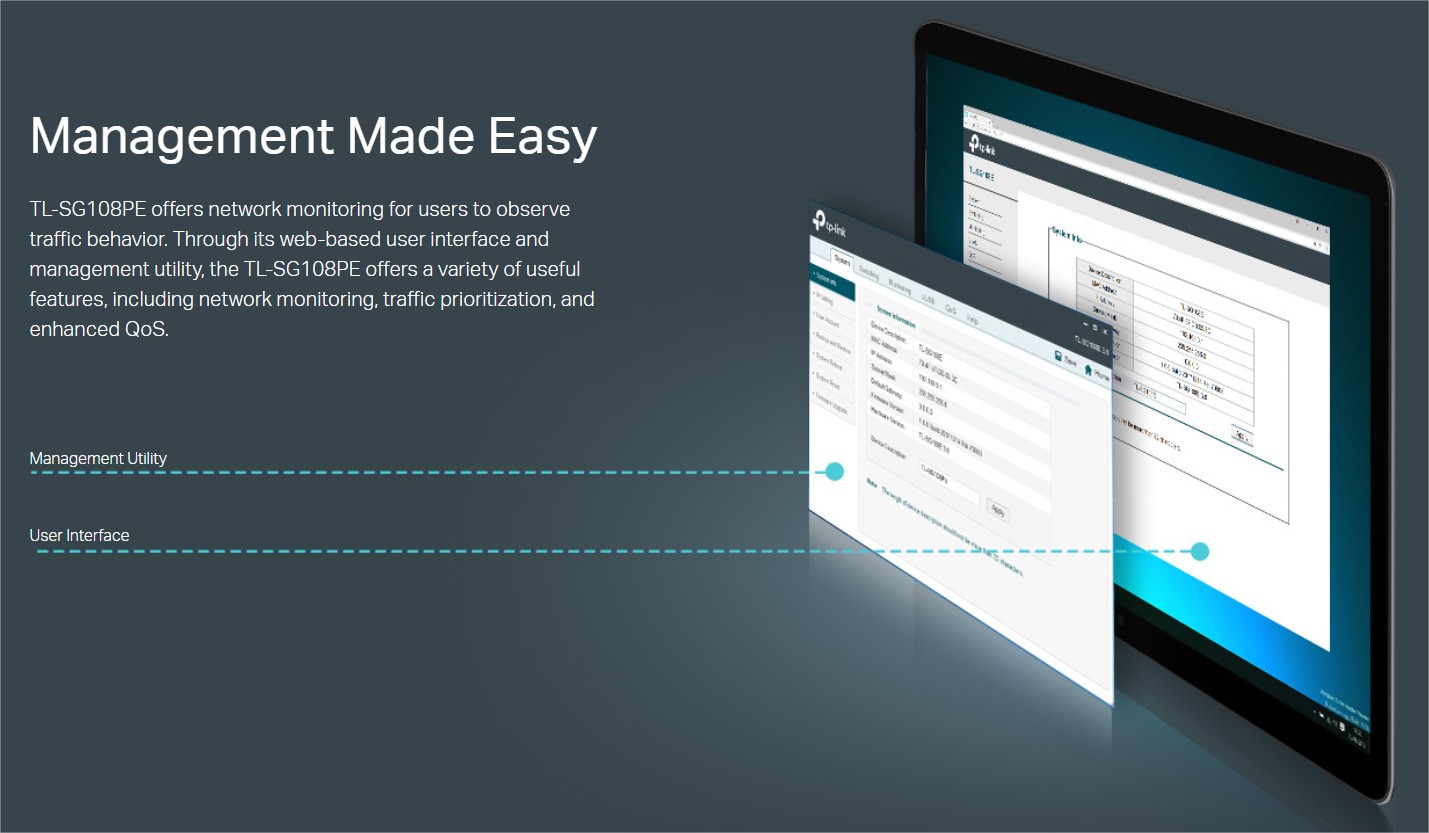

| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | TL-SG108PE Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
