Highlights
Product Description
Specifications
| HARDWARE FEATURES | |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Packet Forwarding Rate | 11.904 Mpps |

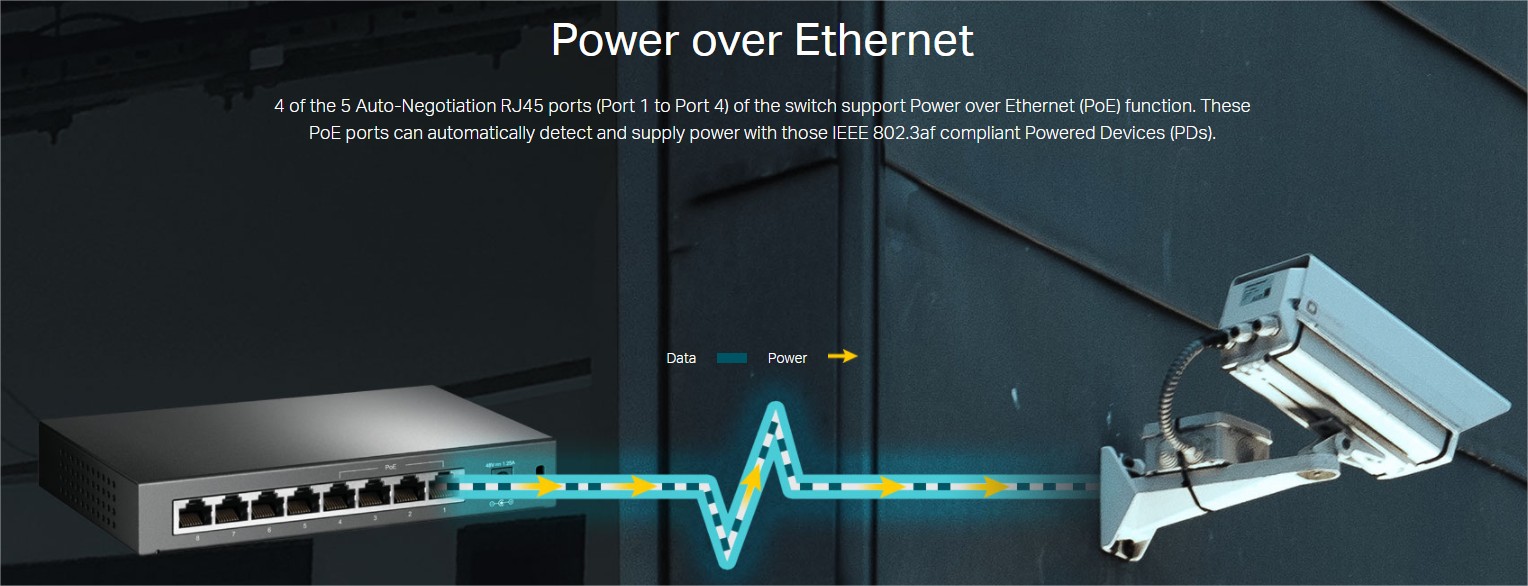

| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 55W |
| Backbound Bandwidth | 16Gbps |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Max Power Consumption | 5.49W(220/50Hz. no PD connected) 65.24W(220/50Hz. with 55W PD connected) |
| Max Heat Dissipation | 18.73BTU/h(no PD connected) 222.60BTU/h(with 55W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging EEE802.3x Flow Control 802.1p/DSCP QoS |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1008P, Power Adapter, Installation Guide |
| Consumption | 65.2W (max. with 55w PoE device connected) 5.5W (max. no PoE device connected) |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
What's In The Box
Warranty
