| HARDWARE FEATURES | |
| Interface | 1610/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter(Output: 9.0VDC / 0.6A) |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 7.9*5.6*1.6 in. (200*142*40 mm) |
| Max Power Consumption | 2.06W(220V/50Hz) |
| Max Heat Dissipation | 7.03BTU/h |
| SOFTWARE FEATURES | |
| Transfer Method | Store and Forward |

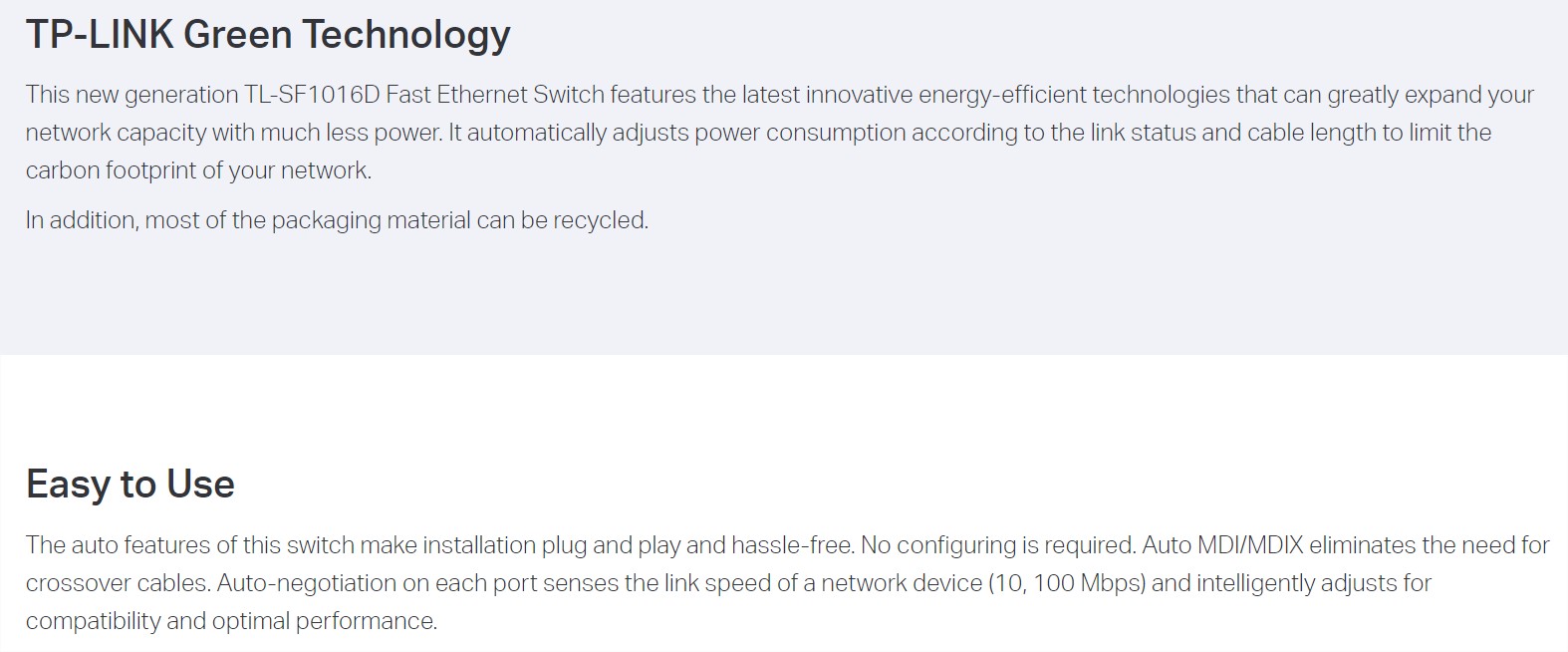

| Advanced Functions | Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure |
| OTHERS | |
| Certification | FCC, CE, RoHs |
| Package Contents | 16-Port 10/10Mbps Desktop Switch TL-SF1016D Power Adapter User Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
