| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 4 mm Aperture: F2.0 Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical) |

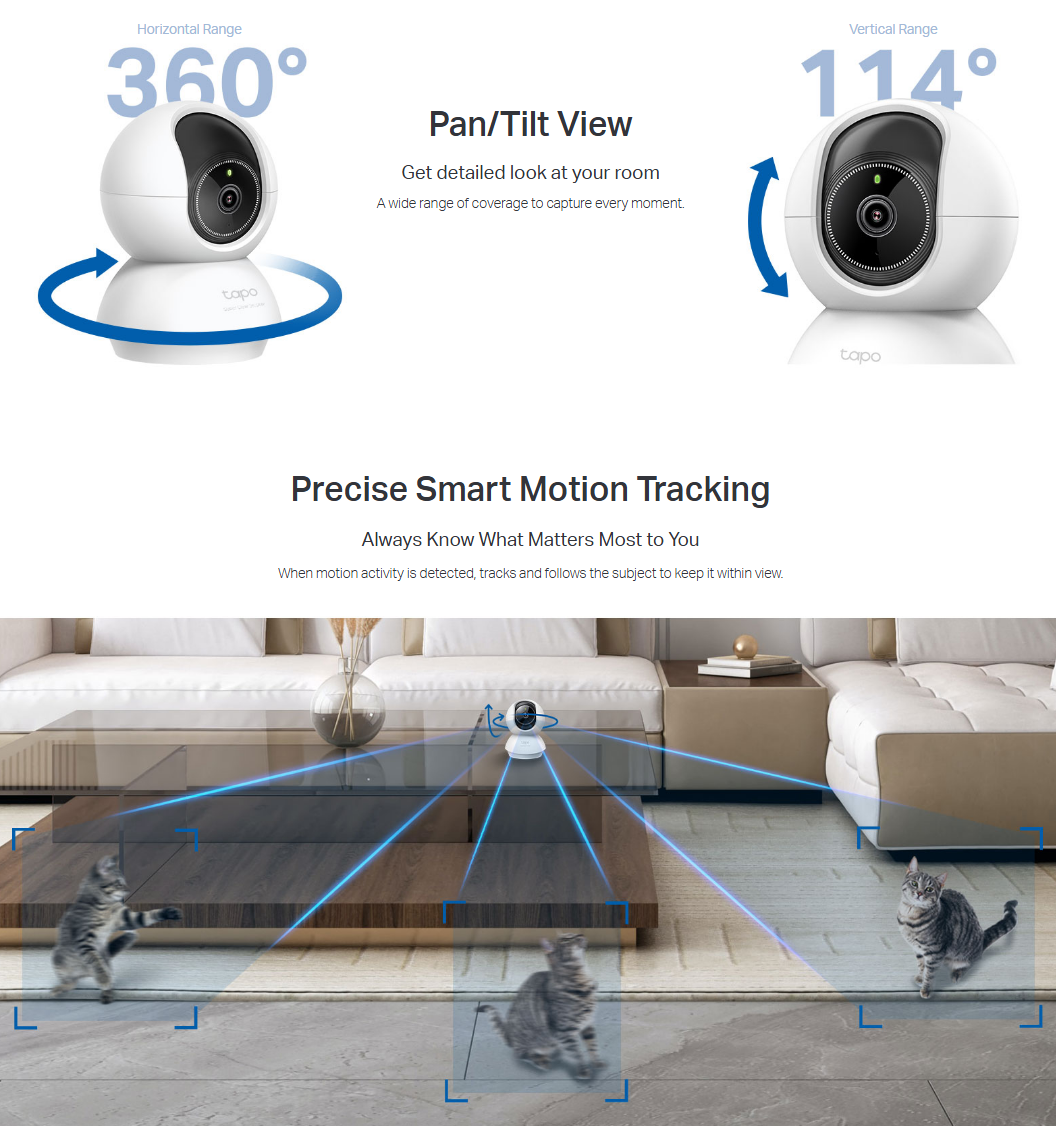

| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 69° |
| Night Vision | 850 nm IR LED (40 ft / 12 m) |
| Interface & Button | 1 × RESET Button 1 × MicroSD Card Slot (Up to 512GB) |
| VIDEO & AUDIO | |
| Maximum Resolution | 3K 5MP (2880×1620 px) |
| Frame Rate | 15/20/25/30 fps (Default 15fps) |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR BLC |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |

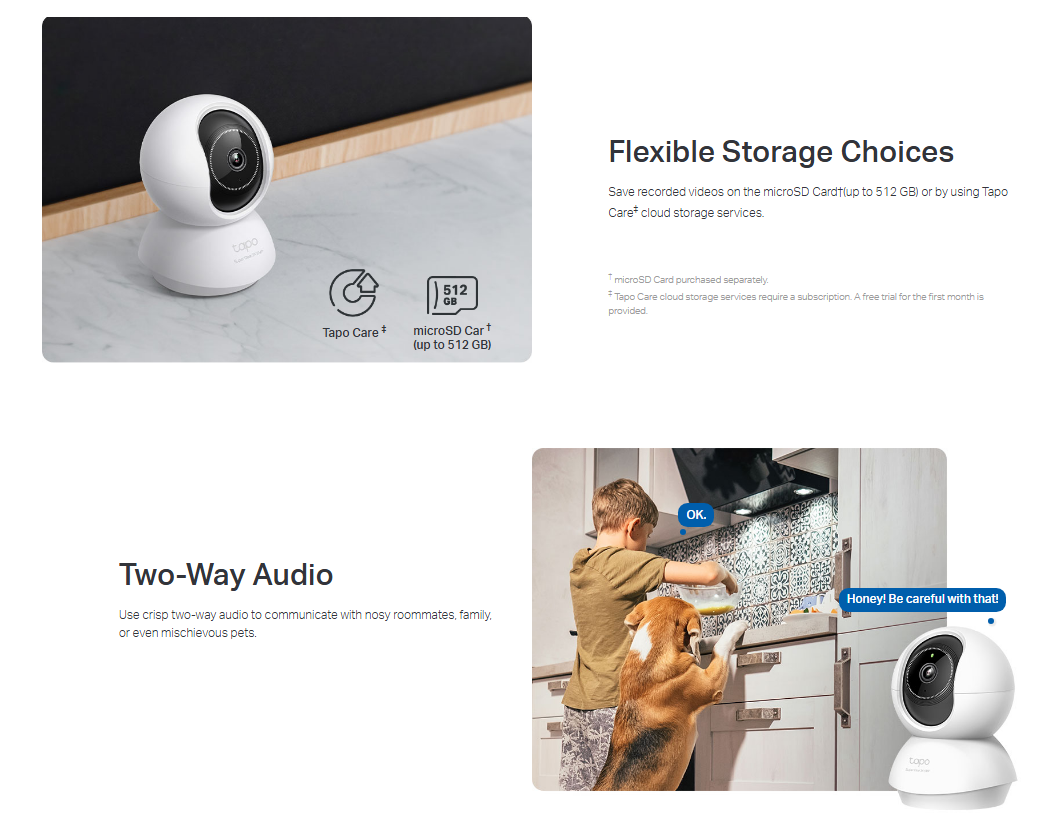

| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
| AI Detection | Motion Detection Person Detection Line-Crossing Detection Tamper Detection BabyCry Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
| RTSP | Yes |
| ONVIF | Yes |
| SECURITY | |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| POWER | |
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9V, 0.6 A (DC Power) |
| GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Mounting Options | Tabletop Ceiling-Mounted |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions | 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |
| Package Contents | Tapo C230 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Anchors Mounting Template Camera Base |
| Certifications | CE, FCC, RCM, WEEE, EAC |
| OTHERS | |
| Warranty | 2 years TP-Link Local Manufacturer Warranty |
