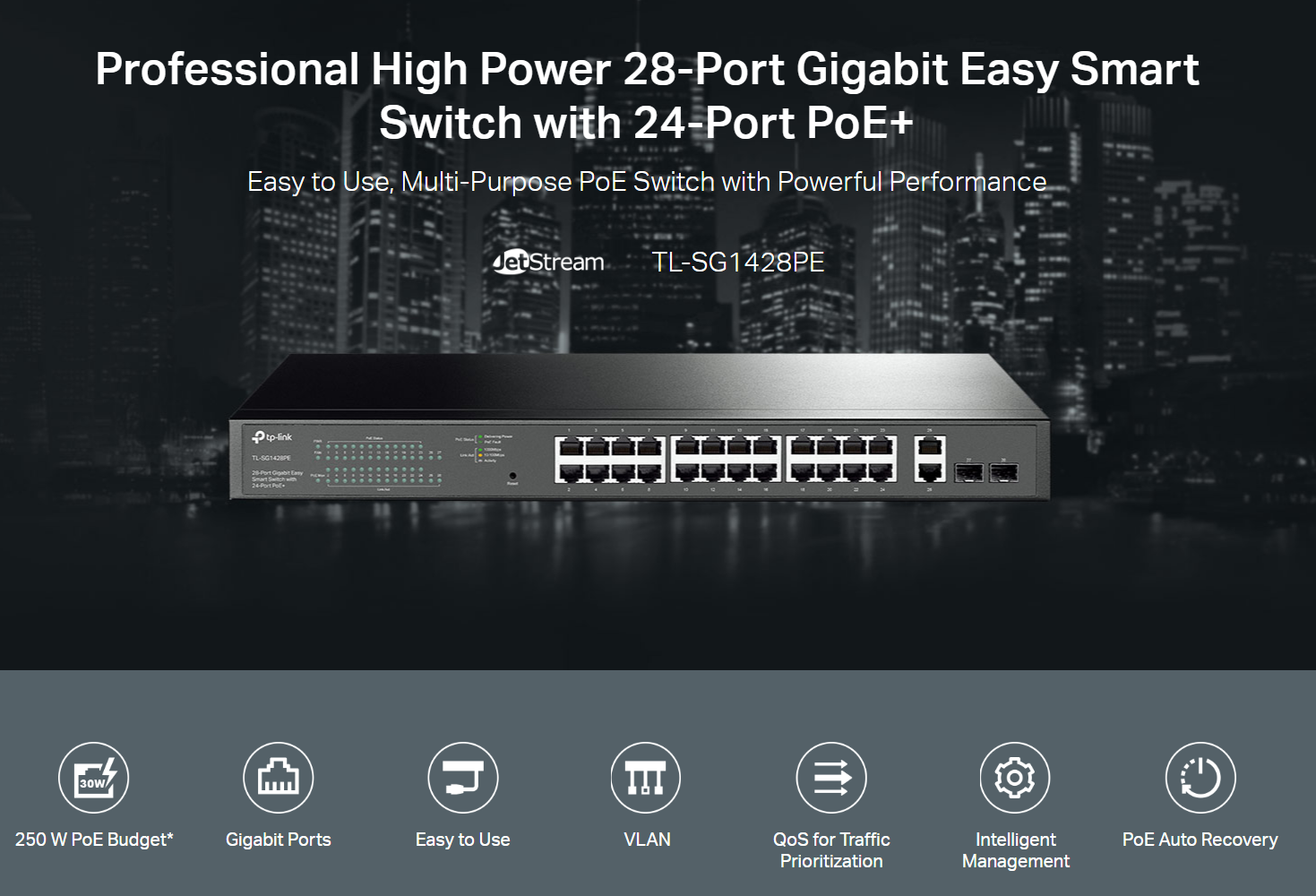

TP-Link SG1428PE 28 Port Gigabit Easy Smart PoE Switch With 24 Port PoE+

RM1,389.00

Voucher

RM10.00 OFF
RM20.00 OFF
RM50.00 OFF
RM100.00 OFF
RM120.00 OFF
RM150.00 OFF

Product SKU

TL-SG1428PE

color_family

TL-SG1428PE

Please select any variant

Quantity

5 unit available

Please input quantity

Description
Product Reviews

Highlights

24 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports

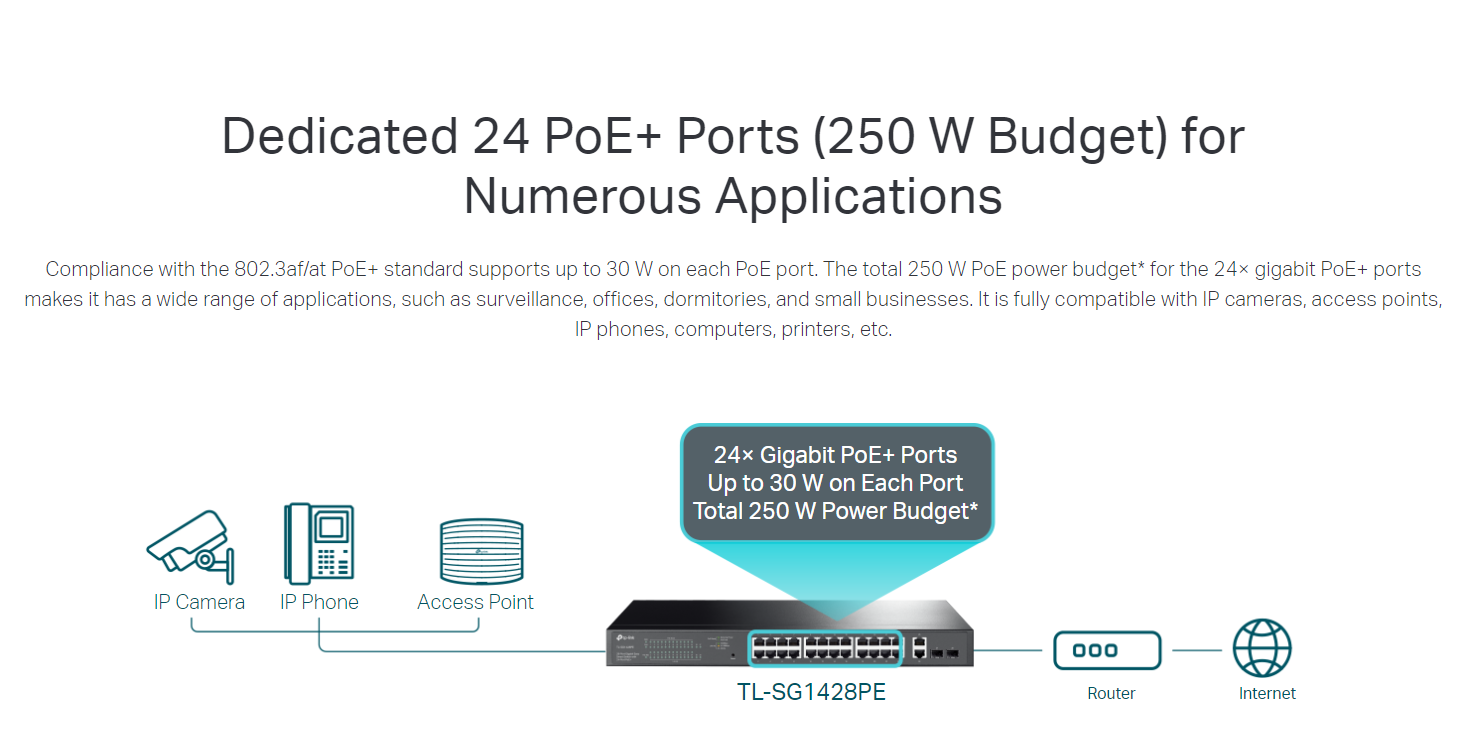

PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

Hardware Features
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100-240V AC, 50/60 Hz
PoE Ports (RJ45)	Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W
Dimensions ( W x D x H )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting	19" 1U rack mountable
Max Power Consumption	27 W (no power device connected) 304.7 W (with 250W power device connected)
Max Heat Dissipation	92.1 BTU/h (no PD connected) 1,039.0 BTU/h (with 250 W PD connected)
Performance
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.7 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	16 KB
Software Features
Quality of Service	Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery
VLAN	Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-Based GUI Easy Smart Configuration Utility
Transmission Method	Store-And-Forward
Others
Certification	CE, FCC, RoHS
Package Contents	TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	3 Years TP-Link Local Manufacturer Warranty

What's in the box

1 x TP-Link SG1428PE 28 Port Gigabit Easy Smart PoE Switch With 24 Port PoE+
1 x Free Exclusive Mystery Gift

Warranty

3 Years TP-Link Local Manufacturer Warranty

Highlights

24 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
Priority Mode helps to guarantee the quality of sensitive application like video monitoring
PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Intelligent power management can protect the switch from overload
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

Hardware Features
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100-240V AC, 50/60 Hz
PoE Ports (RJ45)	Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W
Dimensions ( W x D x H )	17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting	19" 1U rack mountable
Max Power Consumption	27 W (no power device connected) 304.7 W (with 250W power device connected)
Max Heat Dissipation	92.1 BTU/h (no PD connected) 1,039.0 BTU/h (with 250 W PD connected)
Performance
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.7 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	16 KB
Software Features
Quality of Service	Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery
VLAN	Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-Based GUI Easy Smart Configuration Utility
Transmission Method	Store-And-Forward
Others
Certification	CE, FCC, RoHS
Package Contents	TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	3 Years TP-Link Local Manufacturer Warranty

What's in the box

1 x TP-Link SG1428PE 28 Port Gigabit Easy Smart PoE Switch With 24 Port PoE+
1 x Free Exclusive Mystery Gift

Warranty

3 Years TP-Link Local Manufacturer Warranty
