TP-Link Omada ER605 5 Port Gigabit VPN Router

RM379.00

Voucher

RM10.00 OFF
RM20.00 OFF
RM50.00 OFF
RM100.00 OFF
RM120.00 OFF
RM150.00 OFF

Product SKU

TL-OMADA-ER605

Brand

TP-Link

Quantity

1 unit available

Please input quantity

Description
Product Reviews

Highlights

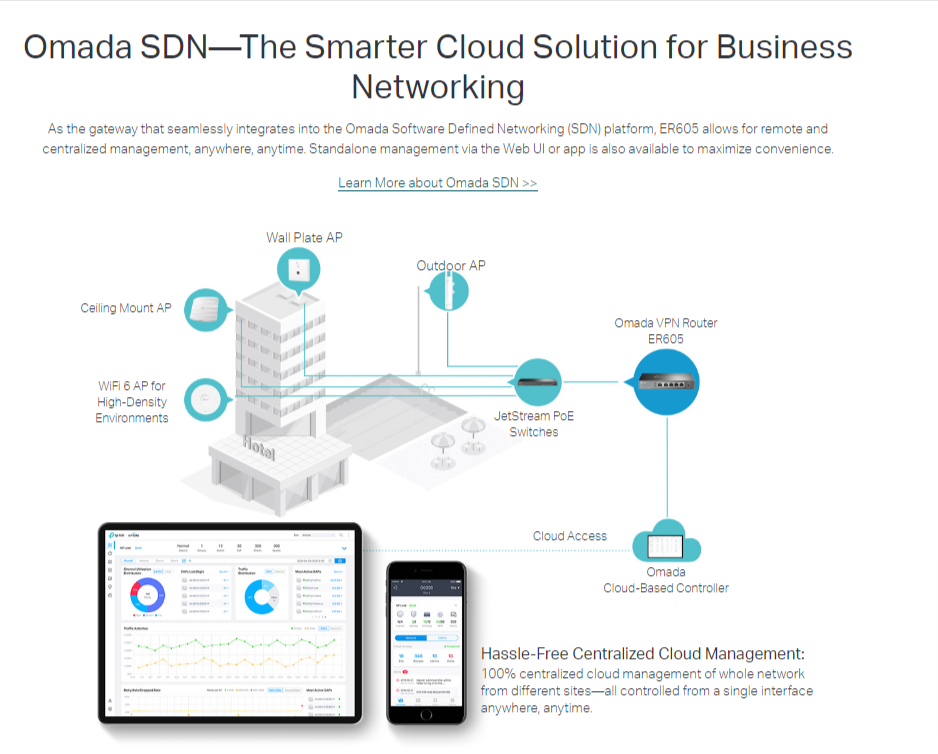

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

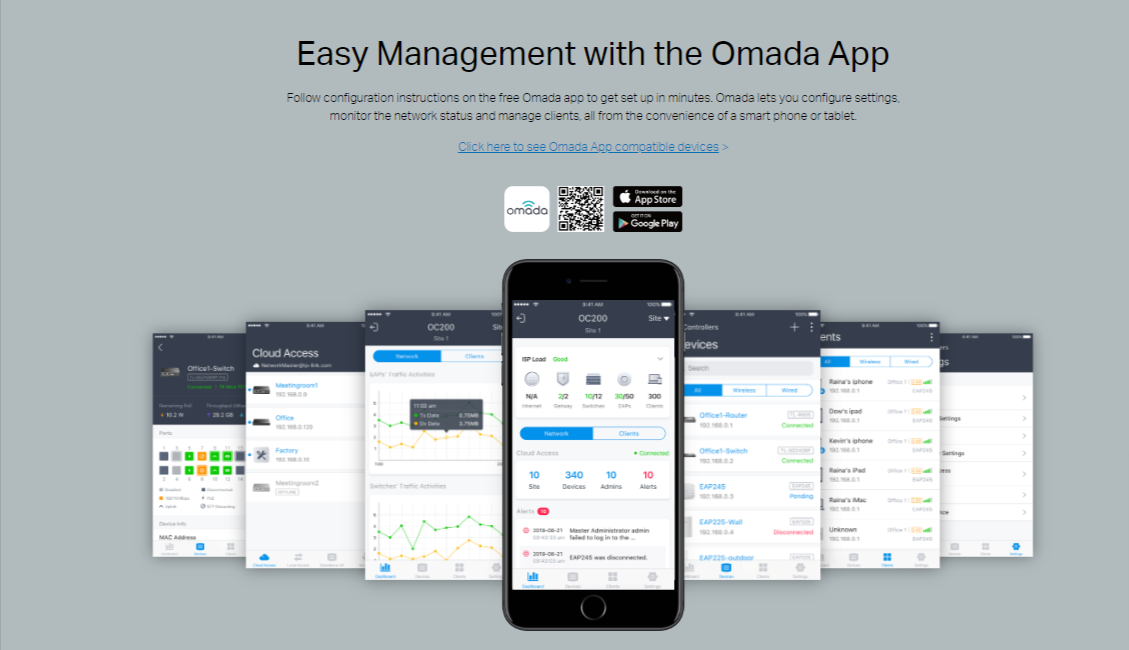

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.

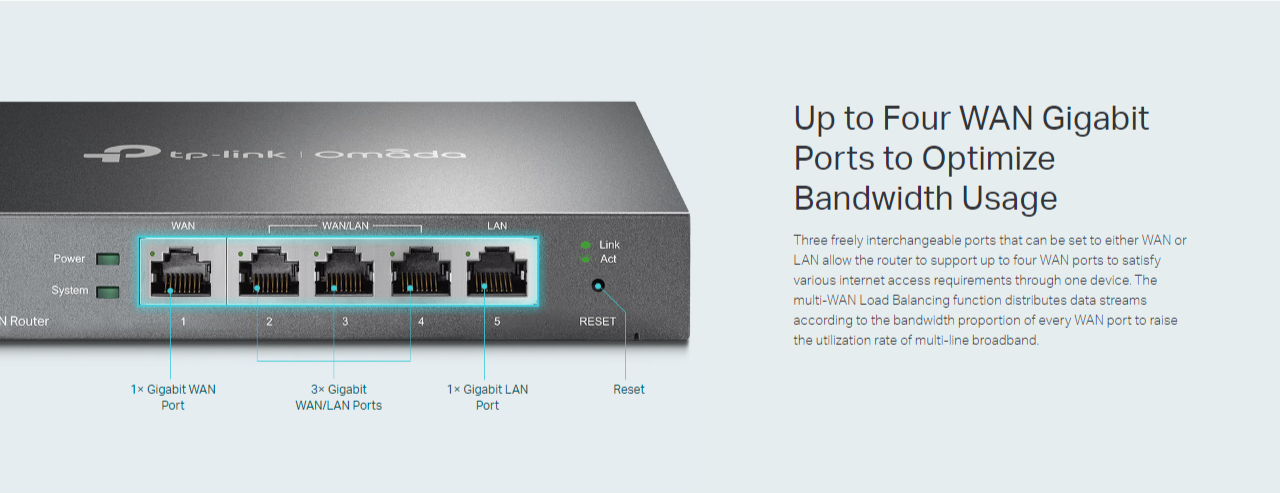

Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

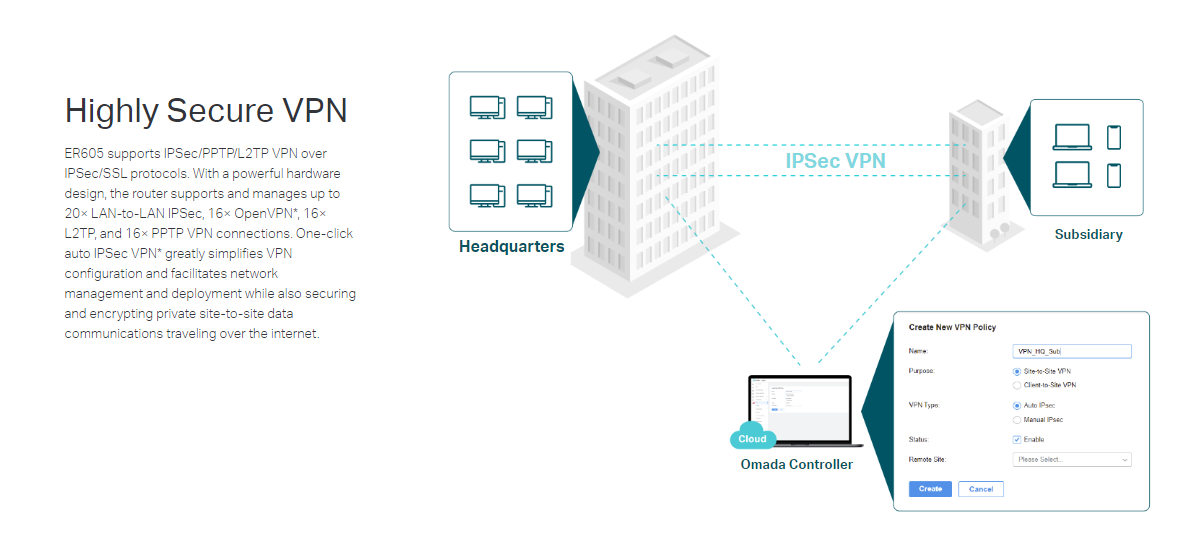

Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN, 16x L2TP, and 16x PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

Product Descriptions

Specifications

HARDWARE FEATURES
Interface	1 Fixed Gigabit WAN Port 1 Fixed Gigabit LAN Port 3 Changeable Gigabit WAN/LAN Ports
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	External 9V/0.9A DC Adapter
Flash	SPI 16MB
DRAM	128 MB
LED	PWR, SYS, WAN, LAN
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm)
PERFORMANCE
Concurrent Session	25,000
IPsec VPN Throughput	41.5 Mbps
BASIC FUNTIONS
WAN Connection Type	Static/Dynamic IP PPPoE PPTP L2TP
MAC Clone	Modify WAN/LAN MAC Address
DHCP	DHCP Server/Client DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
IP/Port/Protocol/Domain Name Filtering	Static Routing Policy Routing
Bandwidth Control	IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth
Load Balance	Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection
NAT	One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security	SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG DoS Defence, Ping of Death Local Management
Session Limit	IP-based Session Limit
VPN
IPsec VPN	20 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IKEv1/v2* MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
PPTP VPN	PPTP VPN Server 10 PPTP VPN Clients 16 Tunnels PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server 10 L2TP VPN Clients 16 Tunnels L2TP over IPSec
OpenVPN	OpenVPN Server 10 OpenVPN Clients 16 OpenVPN Tunnels
SECURITY
Filtering	WEB Group Filtering URL Filtering Web Security
ARP Inspection	Sending GARP Packets ARP Scanning IP-MAC Binding
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Access Control	Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication	No Authentication Simple Password Hotspot（Local User / Voucher / SMS / Radius） External Radius Sever External Portal Sever Facebook
MANAGMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	Time Setting Diagnostic Firmware Upgrade Factory Defaults/Reboot Backup&Restore System Log Remote Management Statistics Controller Settings SNMP
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
Management Features	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning)
OTHERS
Certification	CE, FCC, RoHS
Package Contents	Gigabti VPN Router ER605 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

What's In The Box

1 x TP-Link Omada ER605 5 Port Gigabit VPN Router
1 x FREE Exclusive Mystery Gift

Warranty

3 Years TP-Link Local Manufacturer Warranty
