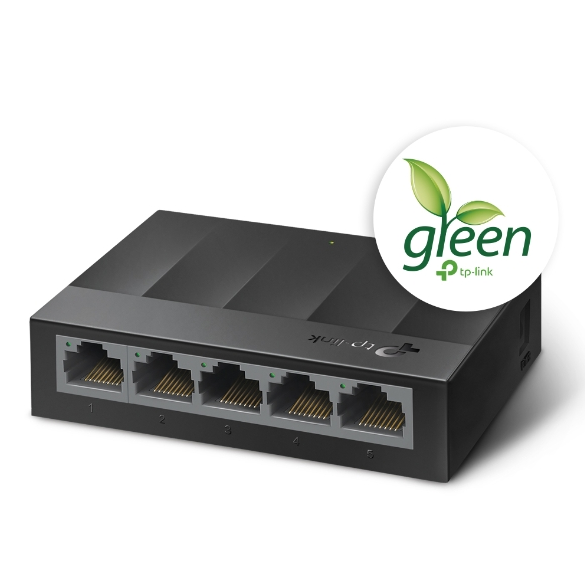

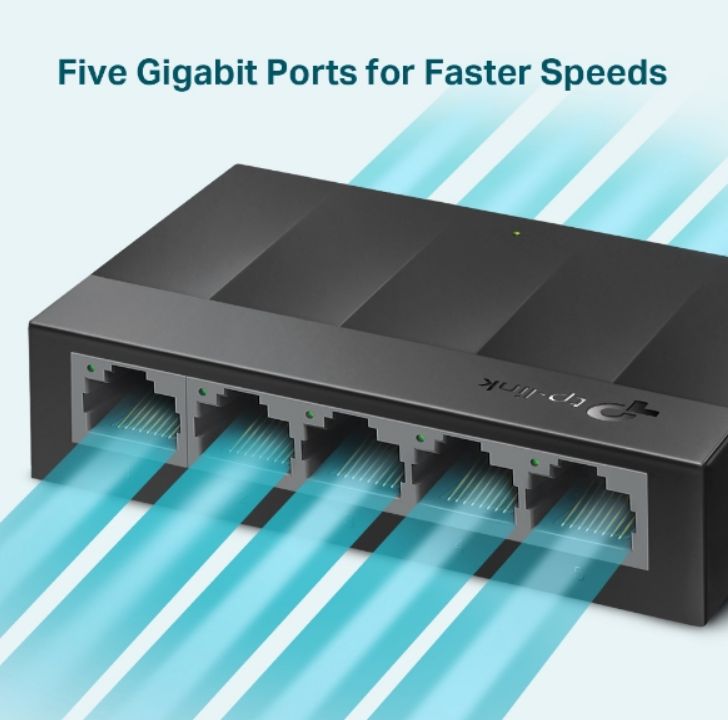

LS1005G

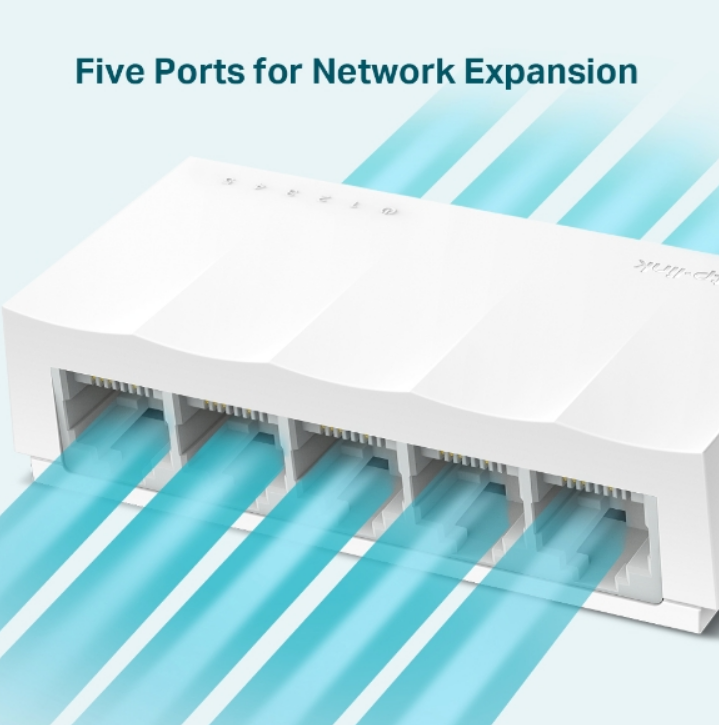

LS1005
Product Descriptions
Specifications
| Model | ||
| Name | LS1005G | LS1005 |
| Hardware Features | ||
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x | |

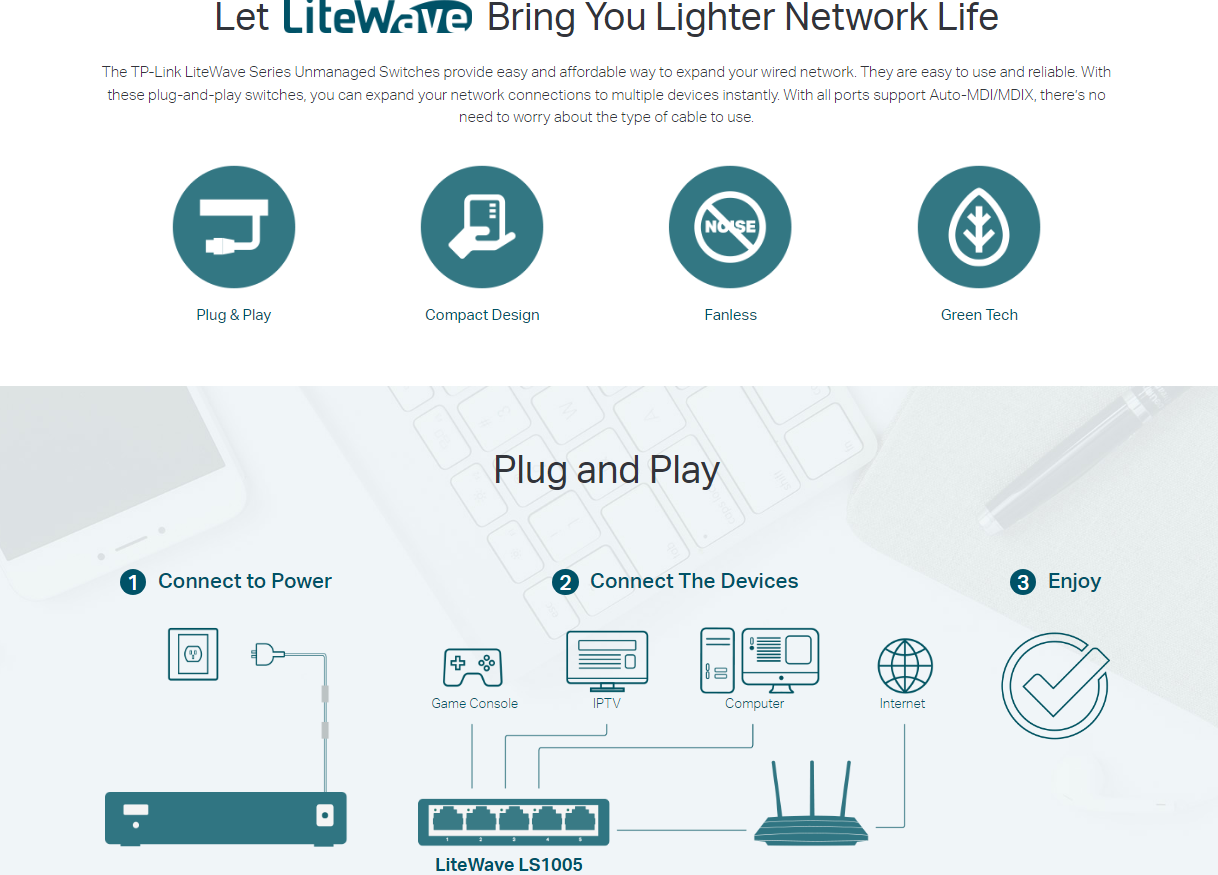

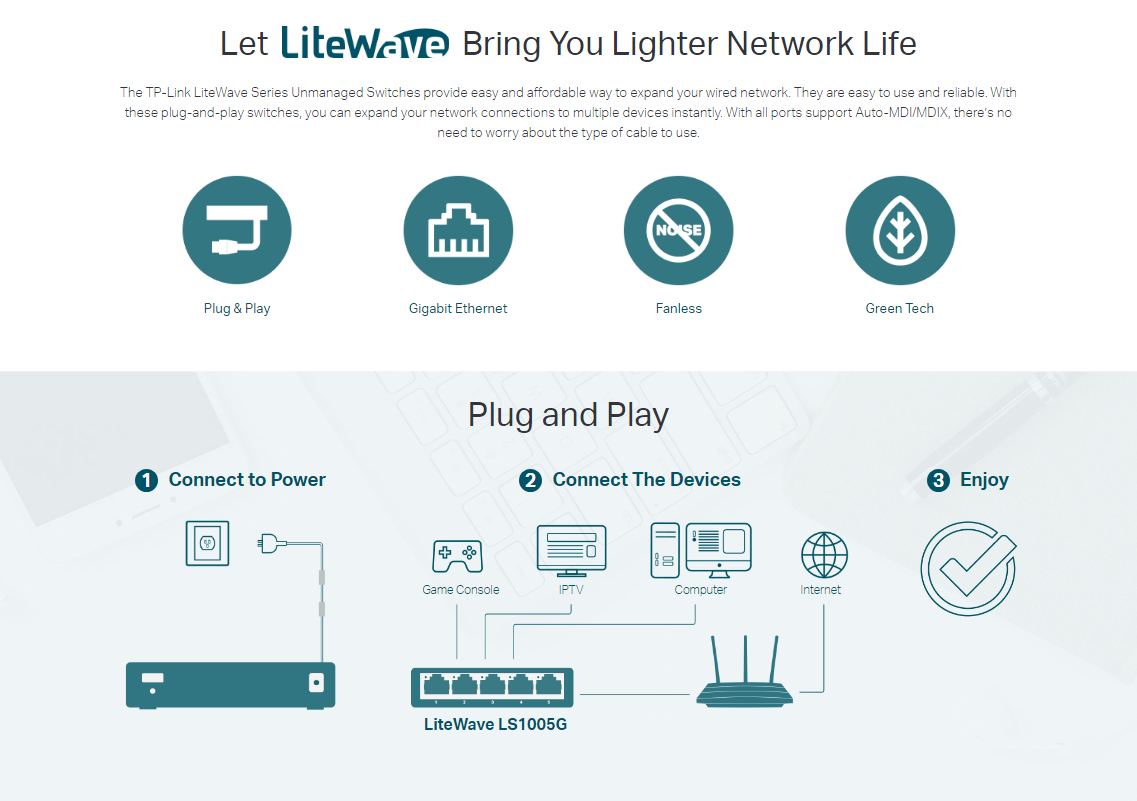

| Interface | 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports | |

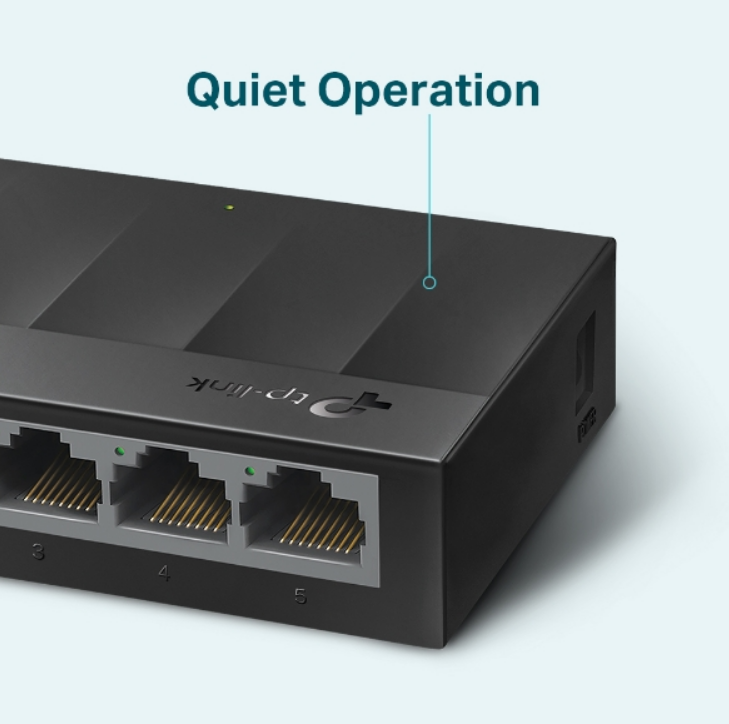

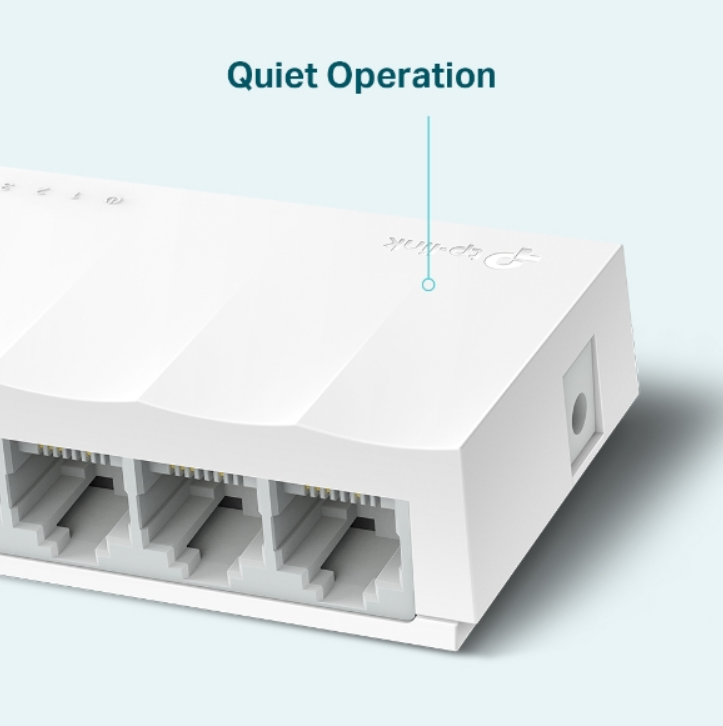

| Fan Quantity | Fanless | |
| External Power Supply | External Power Adapter (Output: 5VDC/0.6A) | |
| Dimensions ( W x D x H ) | 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm) | 3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm) |
| Max Power Consumption | 3.7W | 1.65W |
| Max Heat Dissipation | 12.617 BTU/h | 5.627 Btu/hr |
| PERFORMANCE | ||
| Switching Capacity | 10 Gbps | - |
| Packet Forwarding Rate | 7.4 Mpps | - |
| MAC Address Table | 2K | - |
| Packet Buffer Memory | 1.5 Mb | - |
| Jumbo Frame | 16 KB | - |
| SOFTWARE FEATURES | ||
| Advanced Features | Green Technology 802.3X Flow Control Back Pressure | |
|---|---|---|
| Transfer Method | Store and Forward | |
| Others | ||
| Certification | CE, FCC, RoHS | |
| Package Contents | 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing | |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty | |
