| HARDWARE FEATURES | |

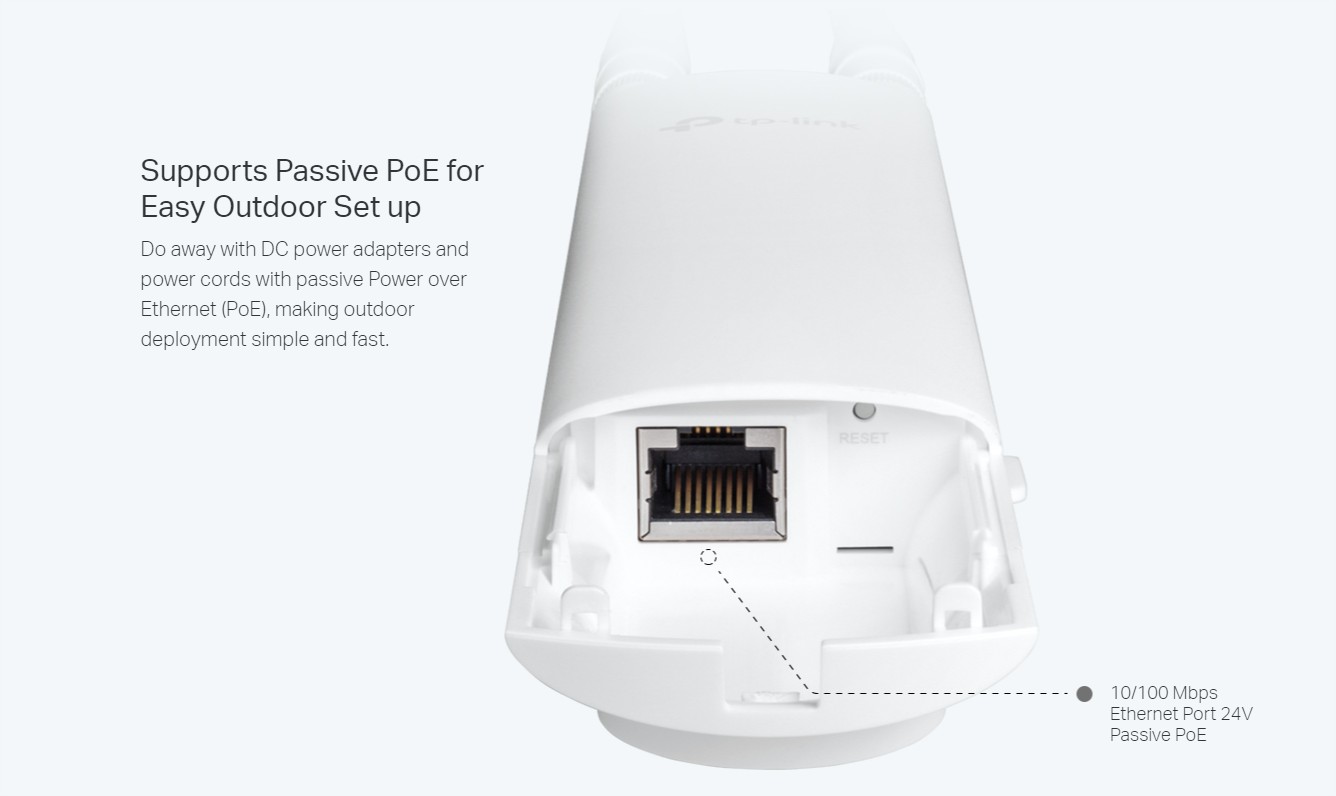

| Interface | Fast Ethernet (RJ-45) Port *1（Support Passive PoE） |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 3.12 W |

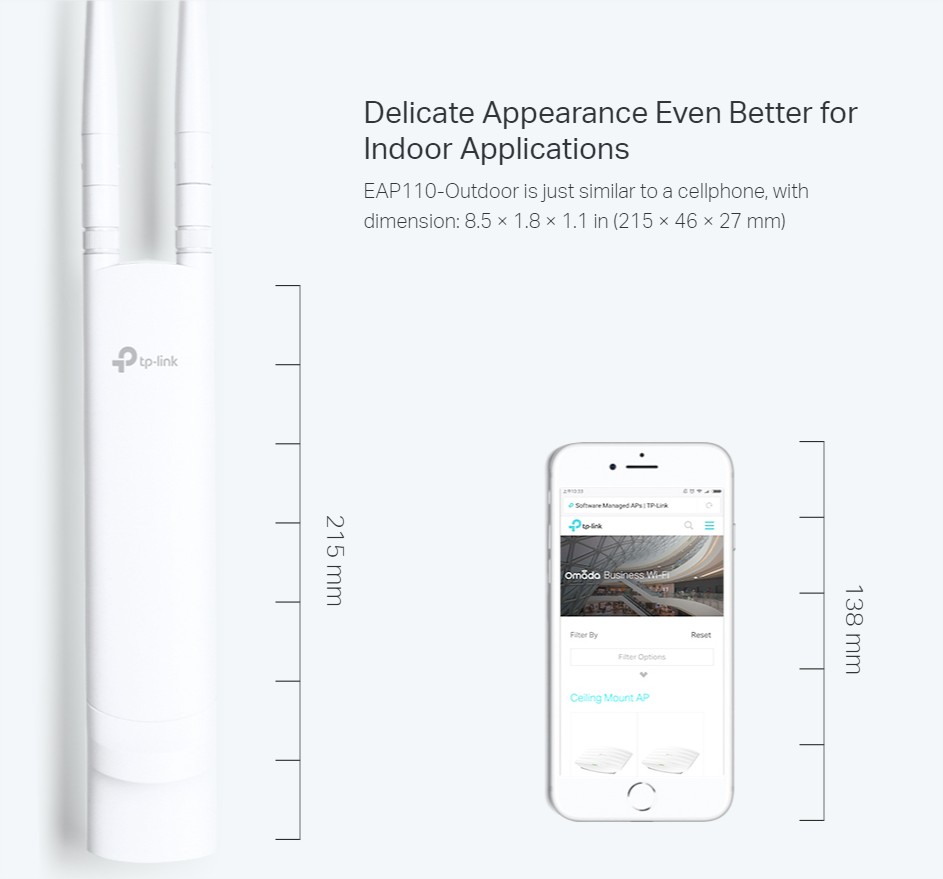

| Dimensions ( W x D x H ) | 8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm) |

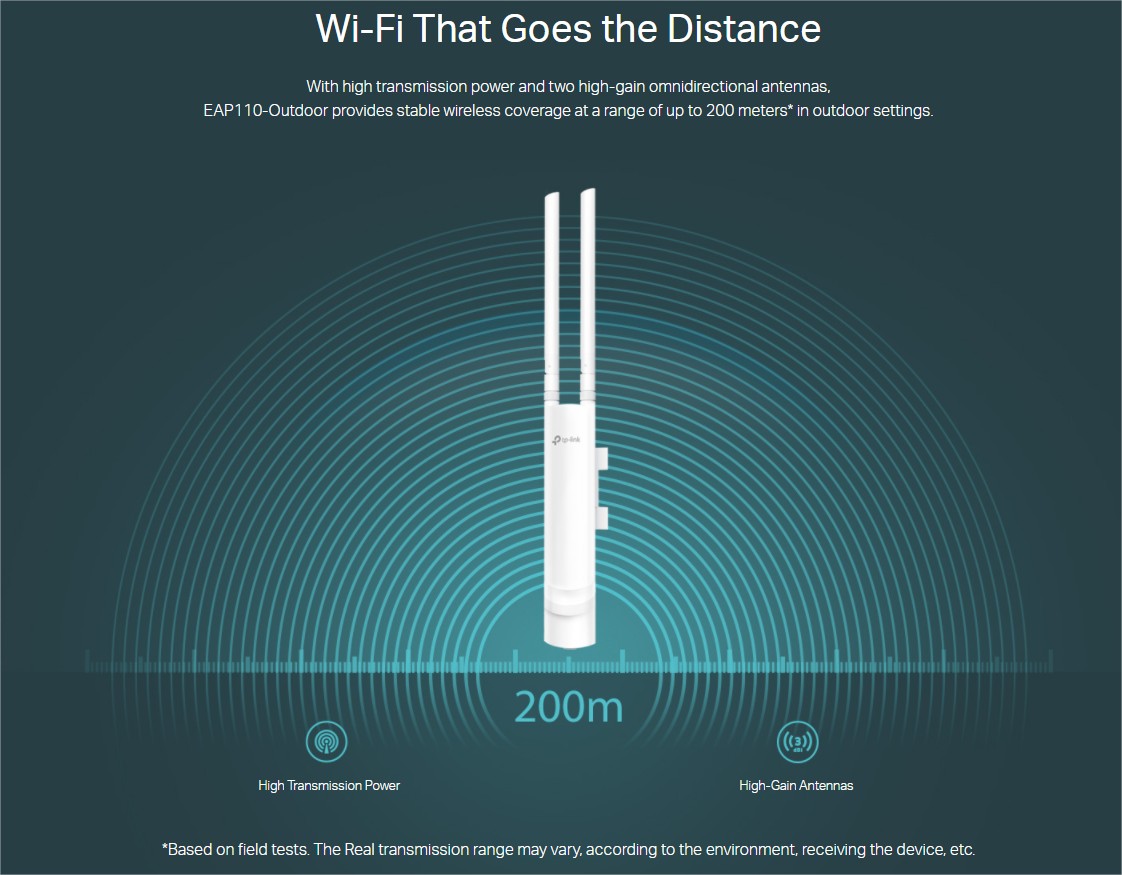

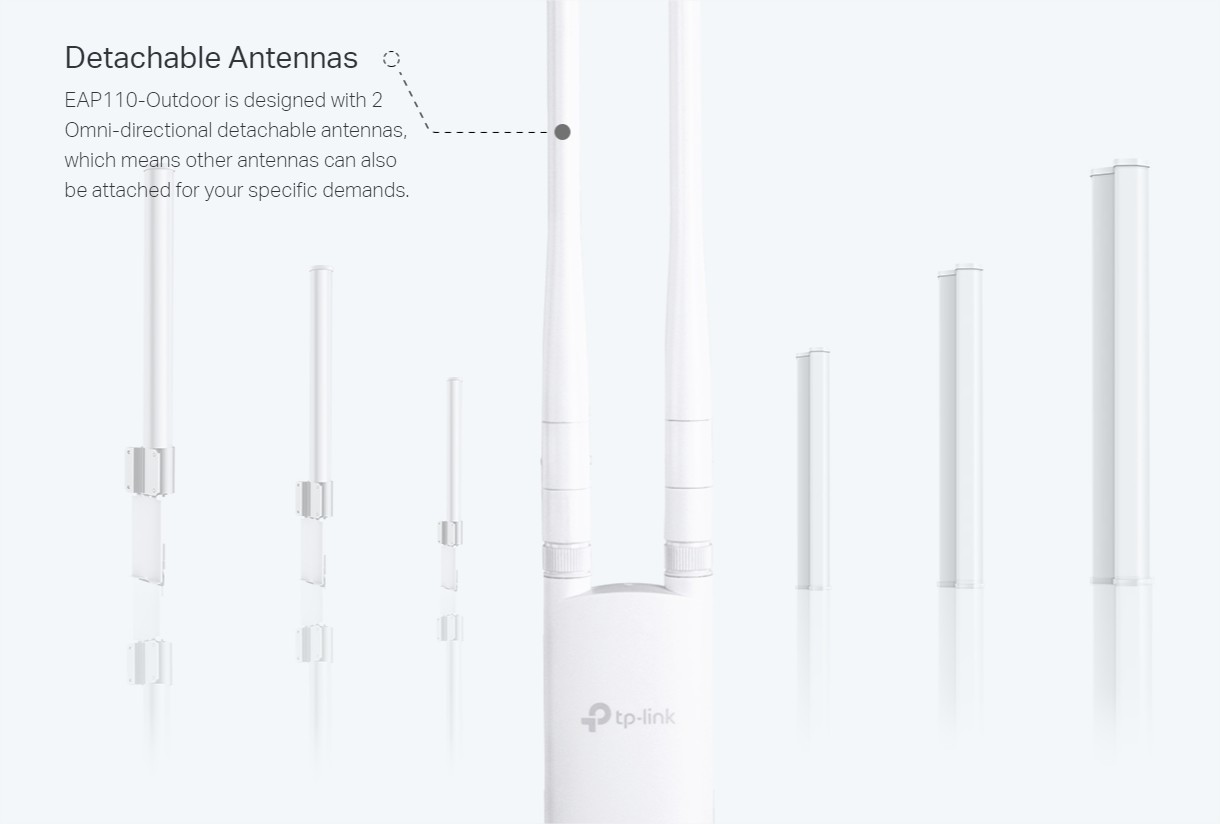

| Antenna Type | 2*3dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |

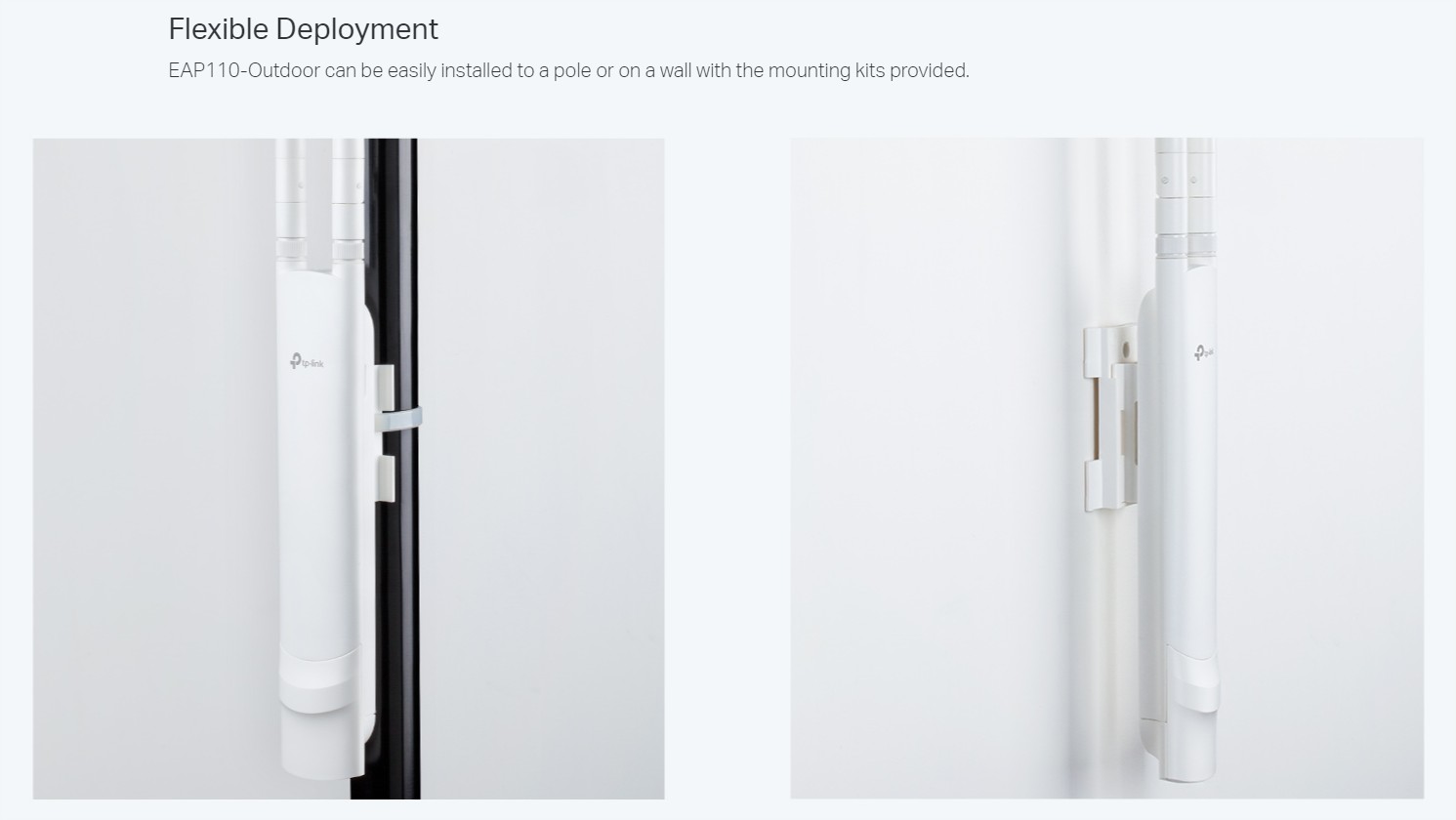

| Mounting | Pole / Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Transmit Power | CE： ≤20dBm (EIRP) FCC: ≤22dBm |
| Wireless Functions | Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |

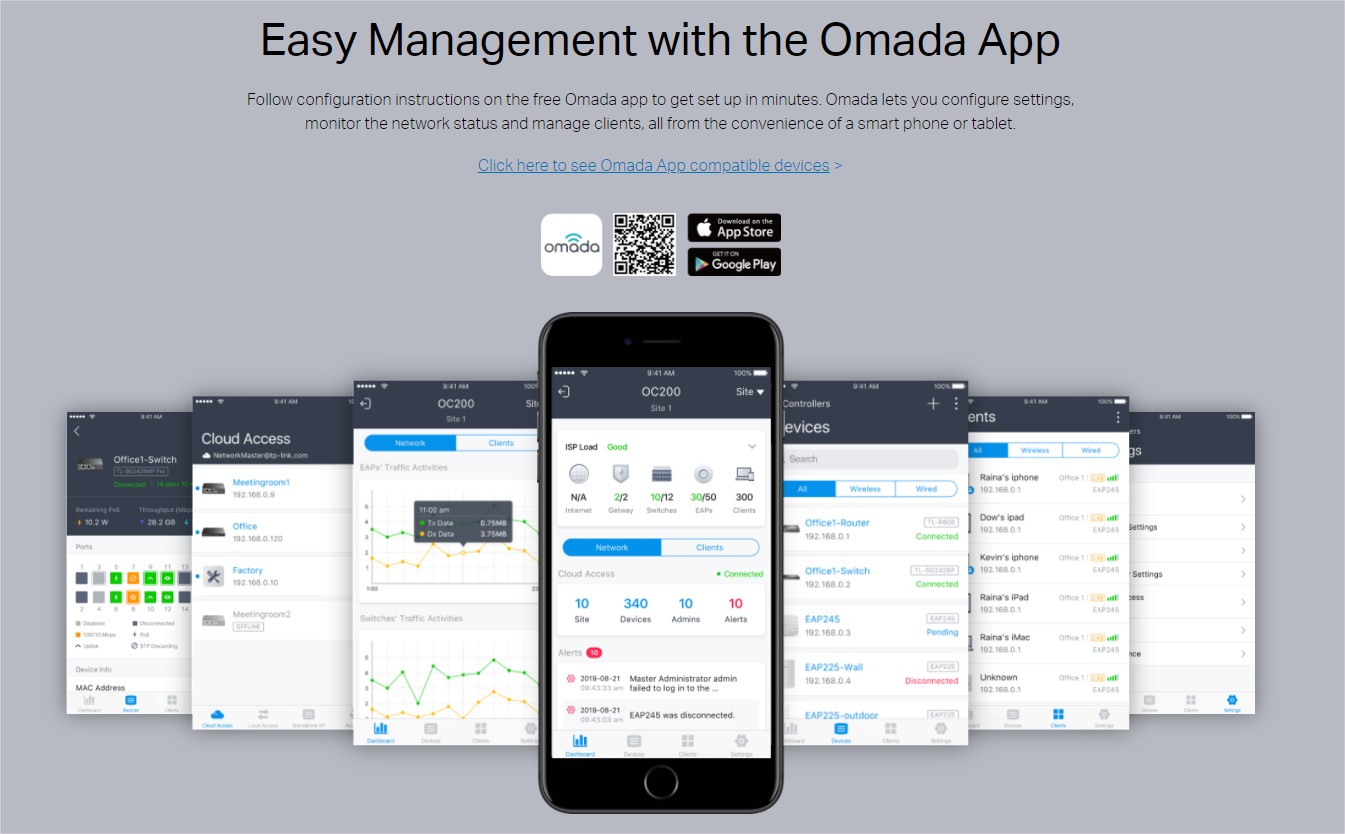

| Omada App | Yes |
| Auranet Controller Software | Yes |

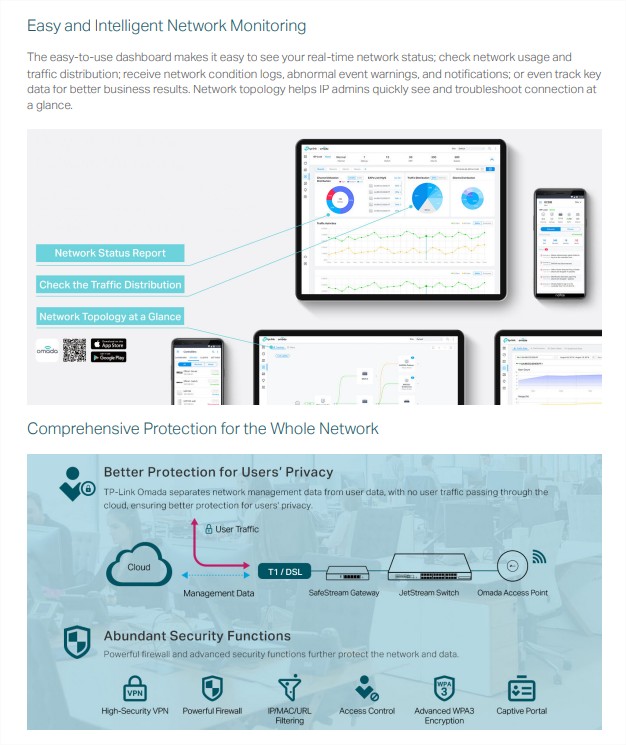

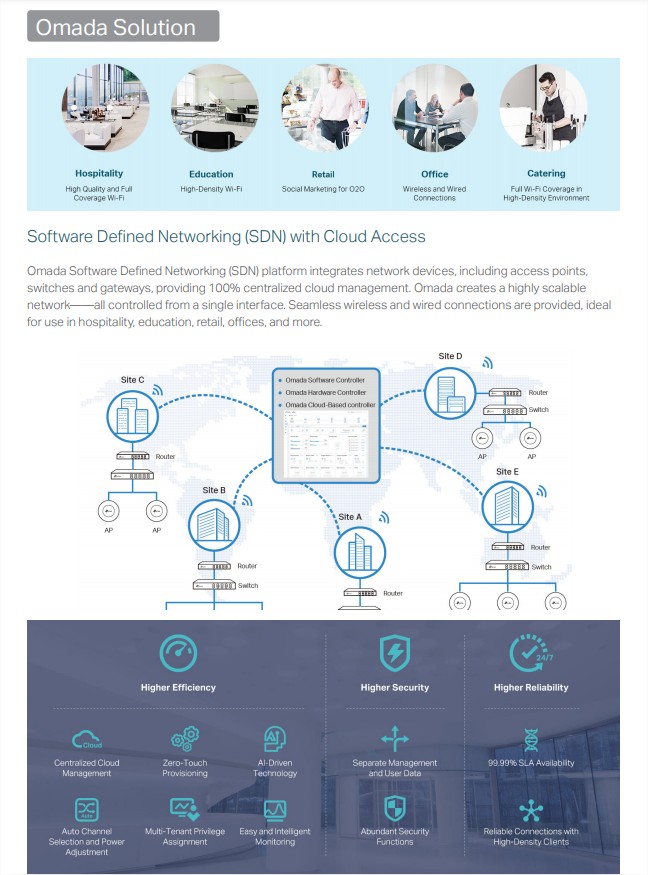

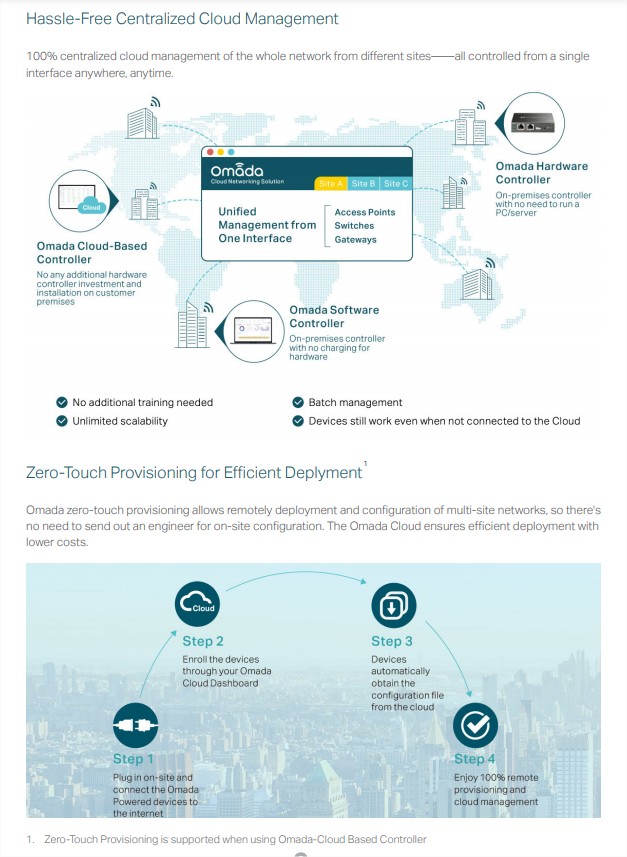

| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |

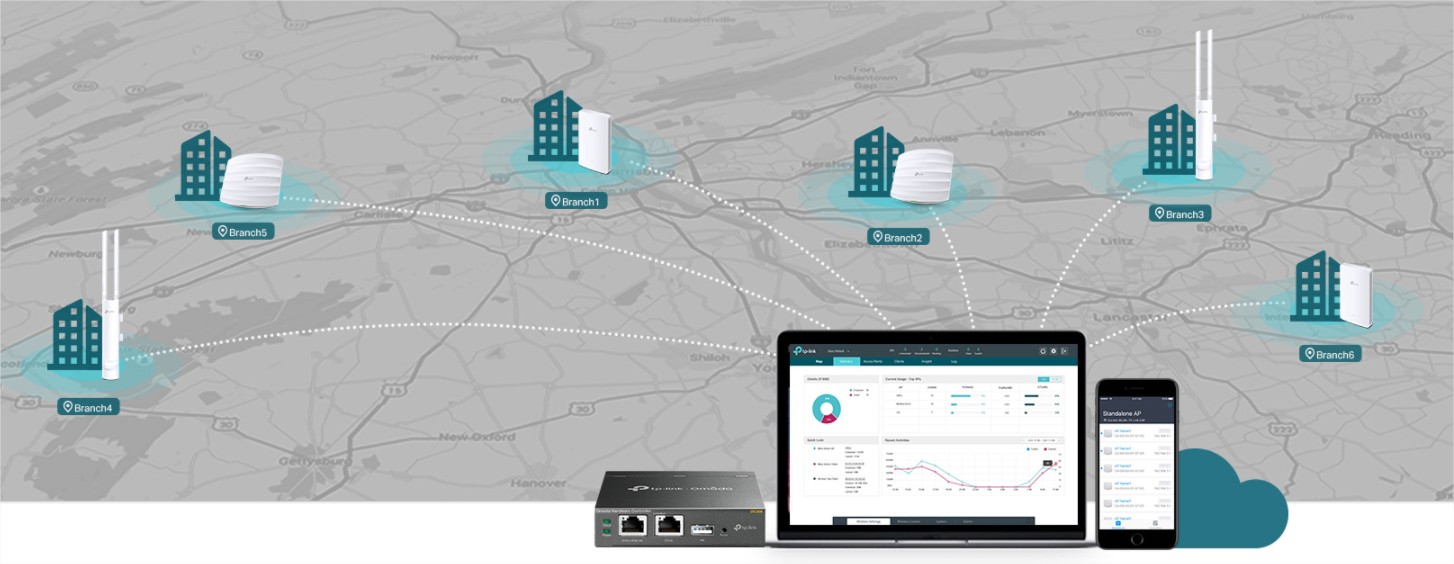

| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: -30℃~65℃ (-22℉~149℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
