Product Description
Specifications
| HARDWARE | |
| Ports | Deco M4R: 2 WAN/LAN Gigabit Ethernet Ports, 1 Power Port Deco M3W: None |
| Buttons | Deco M4R: 1 Reset button Deco M3W: 1 Reset button |
| Antenna Type | Deco M4R: 2 internal dual-band antennas Deco M3W: 2 internal dual-band antennas |
| Dimensions | Deco M4R: 190 × 90.7 × 90.7 mm Deco M3W (without plug): 124 × 69 × 35 mm |
| Power Adapter Input | Deco M4R: 100-240V~ 50/60Hz 0.4A Deco M3W: 100-240V~ 50/60Hz 0.3A |
| Power Adapter Output | Deco M4R: 12V ⎓ 1.2A Deco M3W: N/A |
| SOFTWARE | |
| Working Mode | Router, Access Point |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| DHCP | Server, Client |
| Quality of Service | WMM |
| Firewall Security | SPI Firewall |
| Protocols | Support IPv4 and IPv6 |
| Guest Network | Guest Network x 1 |

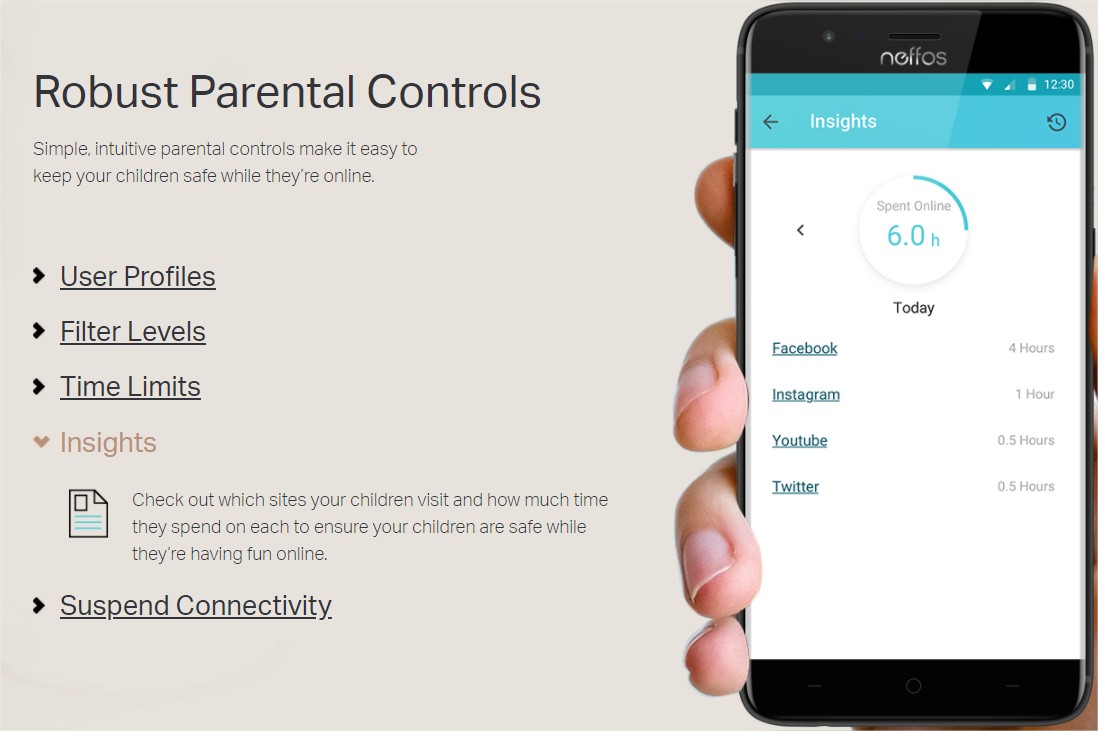

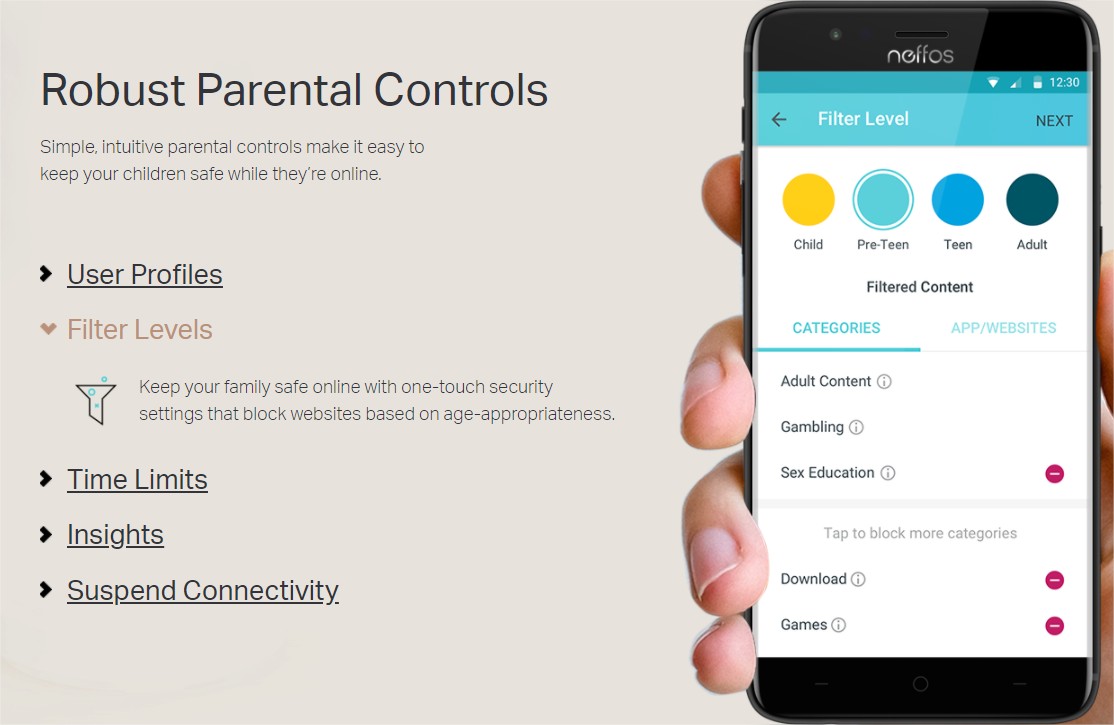

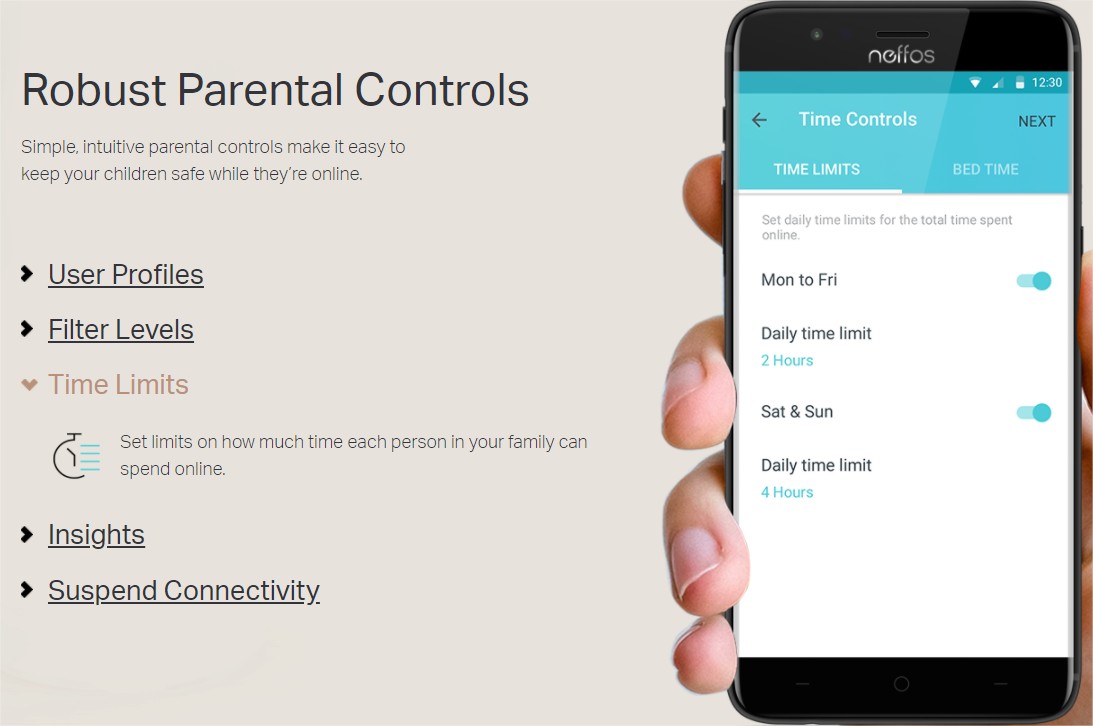

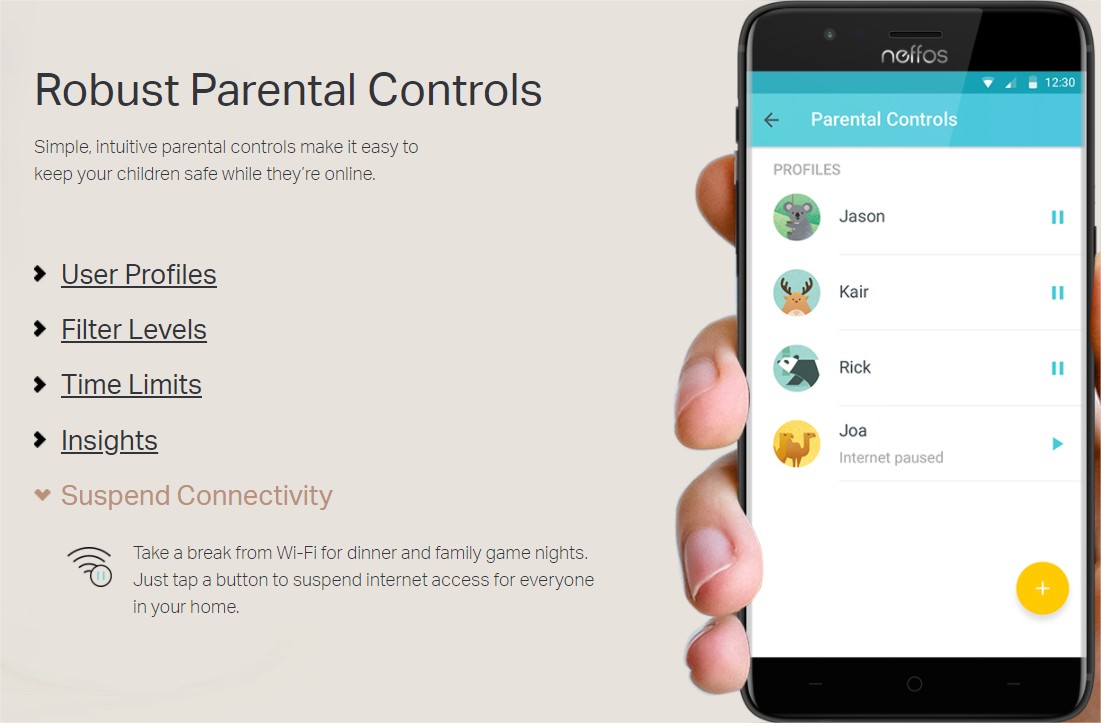

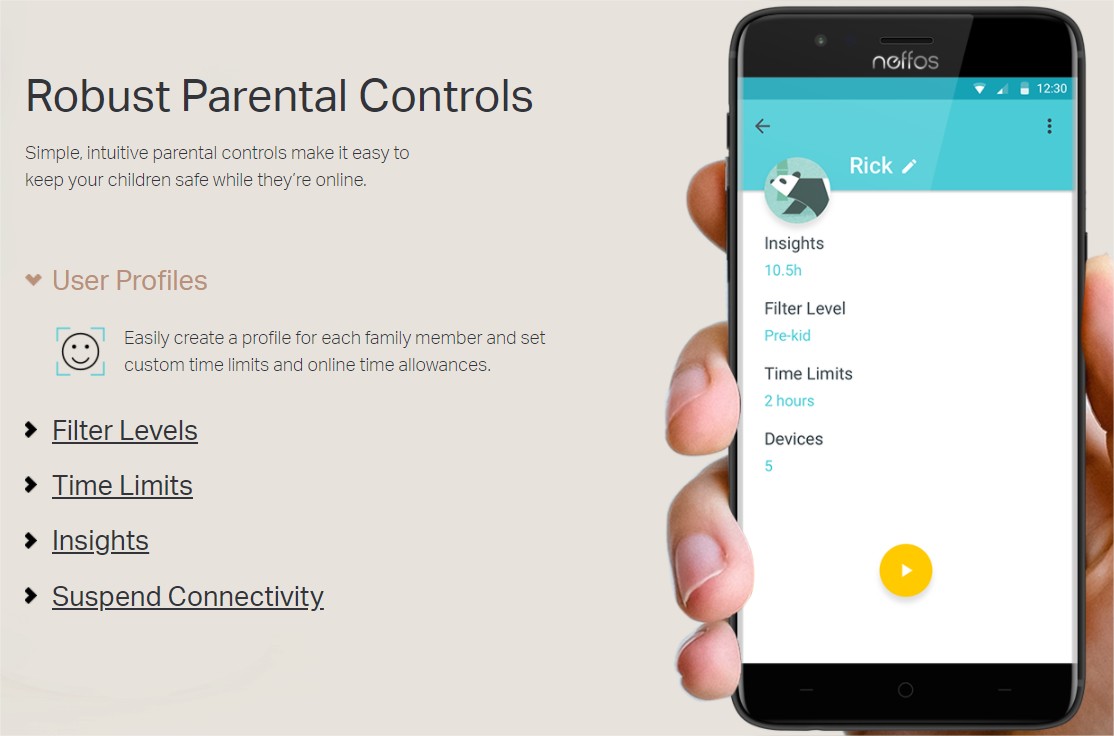

| Features | Parental Controls QoS (Quality of Service) Reporting Assisted Setup Address Reservation Port Forwarding TP-Link DDNS VLAN IPv6 LED Control MU-MIMO |
| Management | Local Management, Remote Management |
| WIRELESS | |
| Wireless Standards | IEEE 802.11 ac/n/a 5 GHz IEEE 802.11 b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |

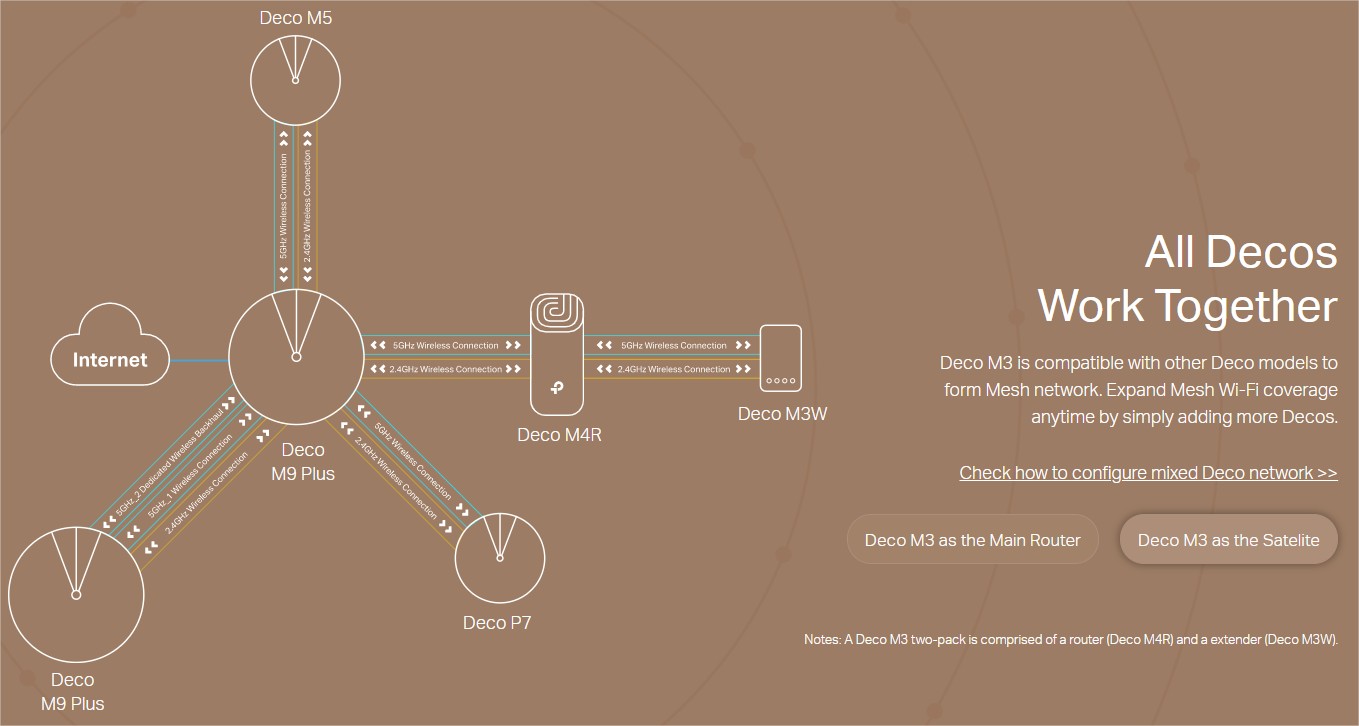

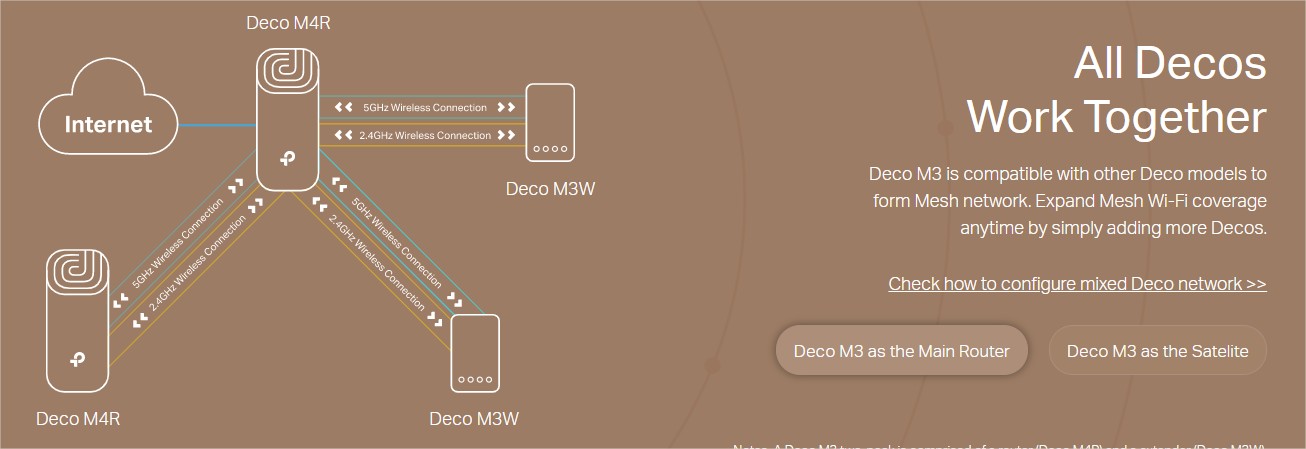

| Mesh Protocol | 802.11k/v/r |
| Signal Rate | 867 Mbps at 5 GHz 300 Mbps at 2.4 GHz |
| Transmit Power | FCC: <30 dBm CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Wireless Security | WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification | CE, RoHS |
| Smartphone/Tablet Requirements | iOS 9.0 or later Android 4.4 or later |
| Package Contents | 1 router Deco M4R 2 wall-plug extenders Deco M3W 1 RJ45 Ethernet cable 1 power adapter 1 quick installation guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
What's In The Box
Warranty
