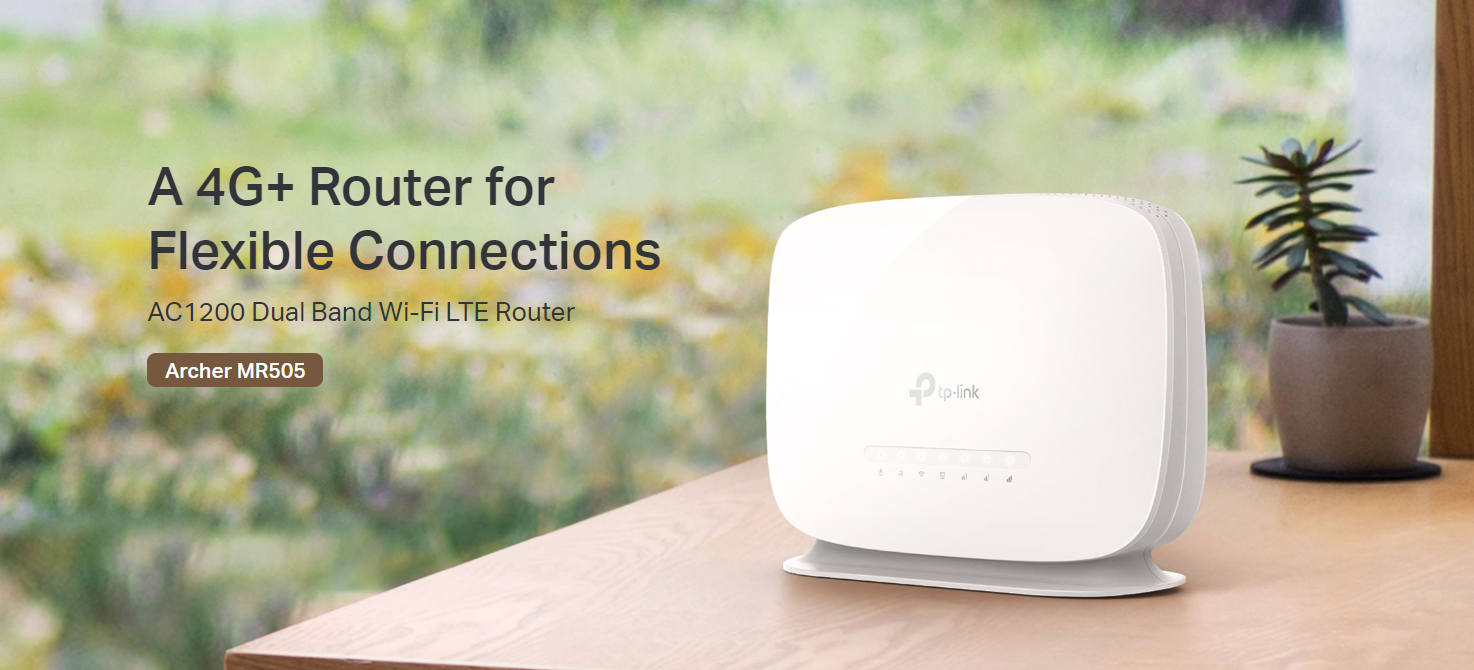

TP-Link Archer MR505 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router with EasyMesh-Compatible and MU-MIMO supported

RM429.00

Product SKU

TL-ARC-MR505

Quantity

10 unit available

Please input quantity

Highlights

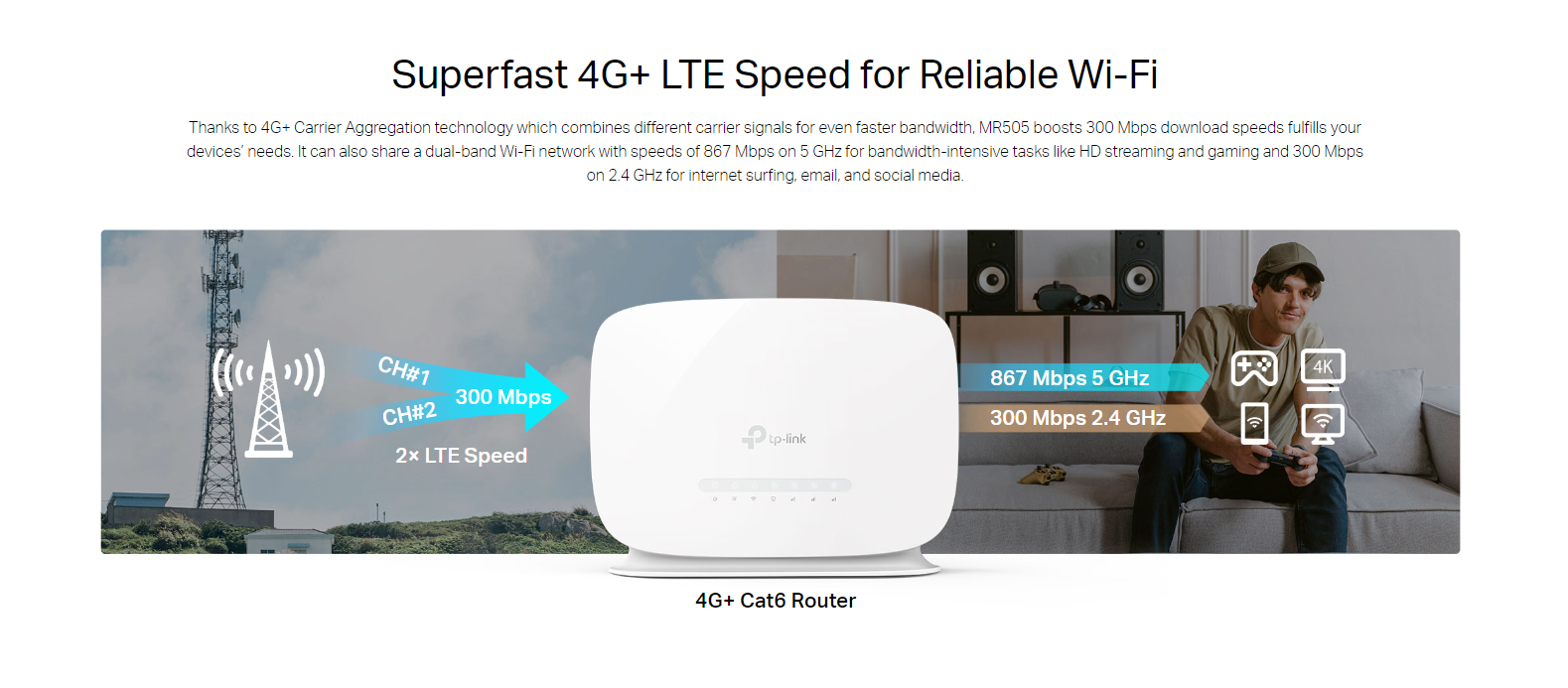

Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps.
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external detachable LTE antennas
Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs

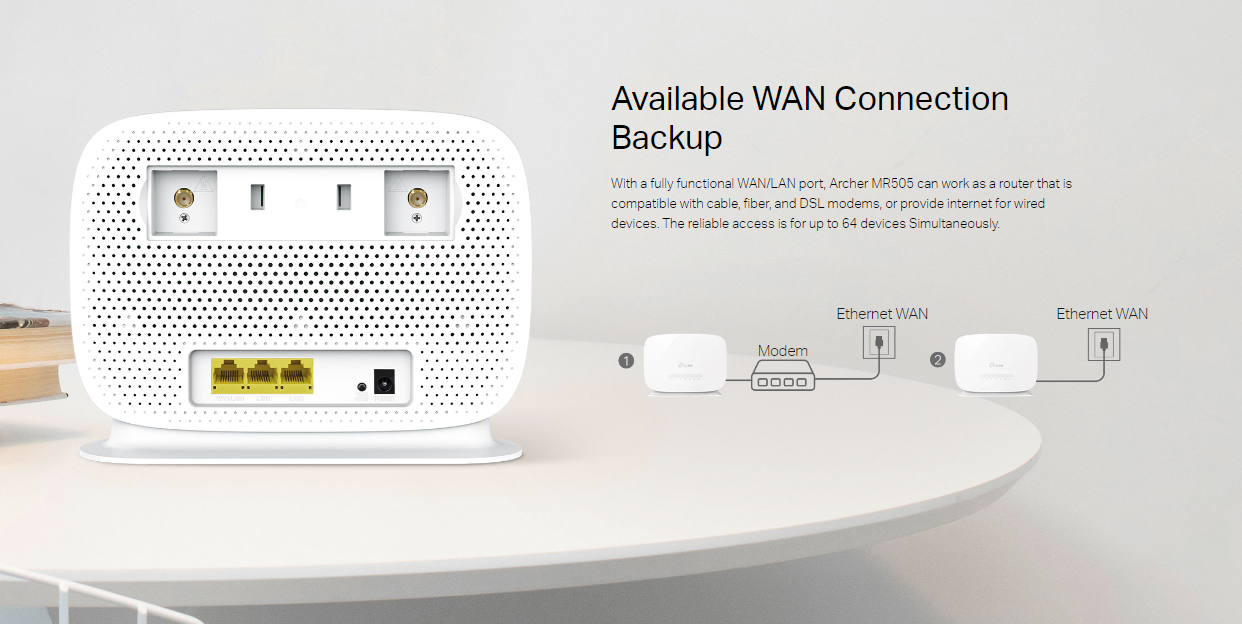

Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection

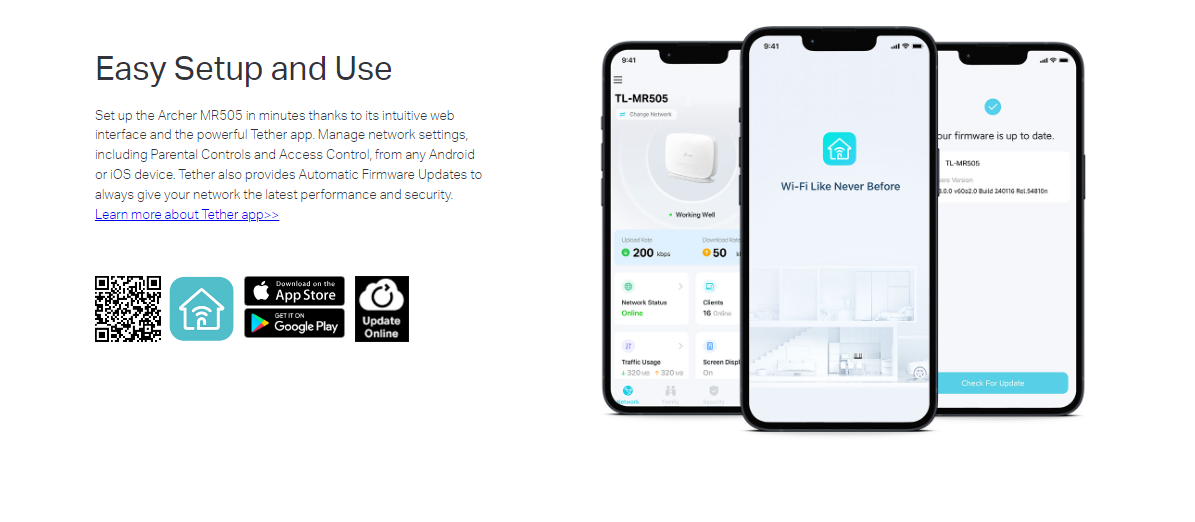

Easy setup and management all by Tether app
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

HARDWARE FEATURES
Interface	1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
Power Supply	12V/1.5A
Dimensions ( W x D x H )	212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in)
Antenna	2 Detachable External LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity	5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover	Yes
Wireless Security	64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Network Type	Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
Quality of Service	Prioritizes network traffic by device
Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management	TP-Link Cloud, Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
VPN	VPN Server: PPTP VPN, OpenVPN
Parental Controls	URL Filtering, Time Controls
Protocols	IPv4, IPv6
Guest Network	2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

OTHERS
Certification	CE, RoHS
Package Contents	4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

What's in the Box

1 x TP-Link Archer MR505 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router with EasyMesh-Compatible and MU-MIMO supported
1 x Free Exclusive Mystery Gift

Warranty

Highlights

Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps.
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external detachable LTE antennas
Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection
Easy setup and management all by Tether app
3 Years TP-Link Local Manufacturer Warranty

Product Descriptions

Specifications

HARDWARE FEATURES
Interface	1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
Power Supply	12V/1.5A
Dimensions ( W x D x H )	212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in)
Antenna	2 Detachable External LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity	5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
Transmit Power	< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover	Yes
Wireless Security	64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Network Type	Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
Quality of Service	Prioritizes network traffic by device
Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management	TP-Link Cloud, Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
VPN	VPN Server: PPTP VPN, OpenVPN
Parental Controls	URL Filtering, Time Controls
Protocols	IPv4, IPv6
Guest Network	2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

OTHERS
Certification	CE, RoHS
Package Contents	4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

What's in the Box

1 x TP-Link Archer MR505 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router with EasyMesh-Compatible and MU-MIMO supported
1 x Free Exclusive Mystery Gift

Warranty
