TP-Link Archer C24 AC750 Dual-Band (5Ghz + 2.4GHz) Wi-Fi Router with Parental Controls

WIRELESS

Standards

Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses

4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

Medium

Dual-Band
Allocate devices to different bands for optimal performance

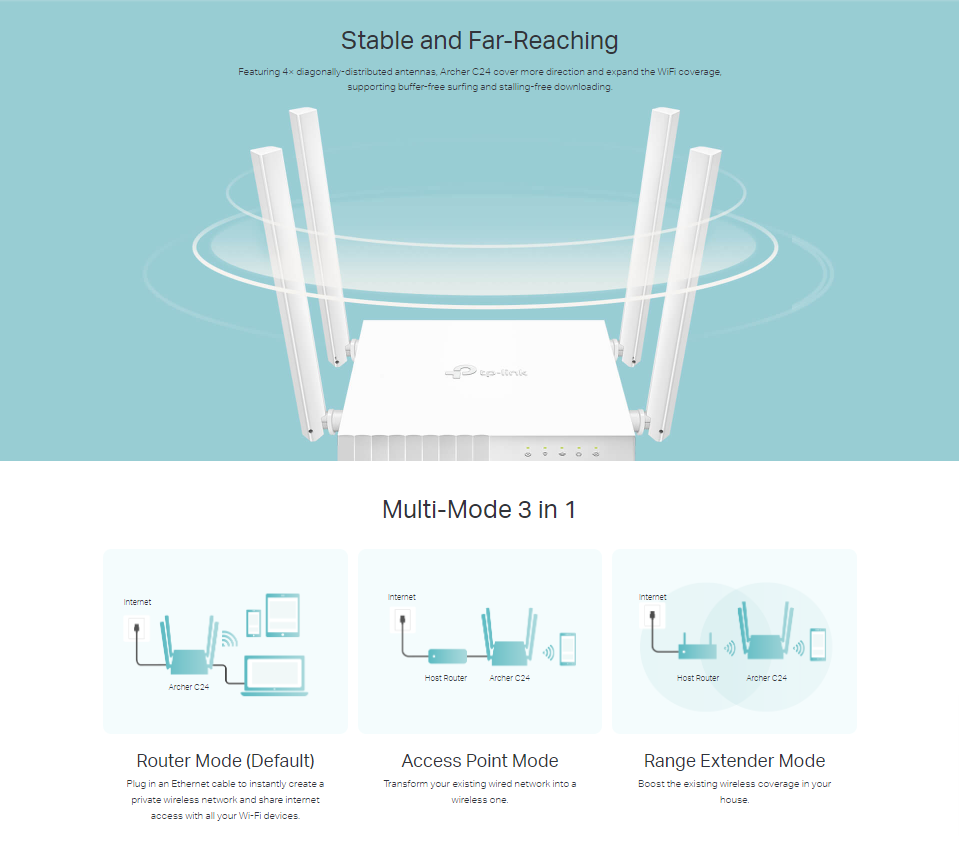

Working Modes

Router Mode
Access Point Mode
Range Extender Mode

HARDWARE

Processor

Single-Core CPU

Ethernet Ports

1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports

Buttons

WPS/Reset Button

Power

9 V ⎓ 0.6 A

SECURITY

WiFi Encryption

WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

SOFTWARE

Protocols

IPv4
IPv6

Parental Controls

URL Filtering
Time Controls

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

QoS by Device

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP

Address Reservation
DHCP Client List
Server

DDNS

NO-IP
DynDNS

Management

Tether App
Webpage

PHYSICAL

Dimensions (W×D×H)

4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)

Package Contents

Wi-Fi Router Archer C24
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:
<20dBm(2.4GHz)
<23dBm(5GHz)

WiFi Reception Sensitivity

5GHz:
11a 54M: -76dBm;
11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm;
11ac VHT80 MCS9: -62dBm
2.4GHz:
11g 54M: -76dBm;
11n HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
