Highlights
Product Descriptions
Specifications
| Standard&Protocol | IEEE802.3, IEEE802.3u,IEEE802.3ab |

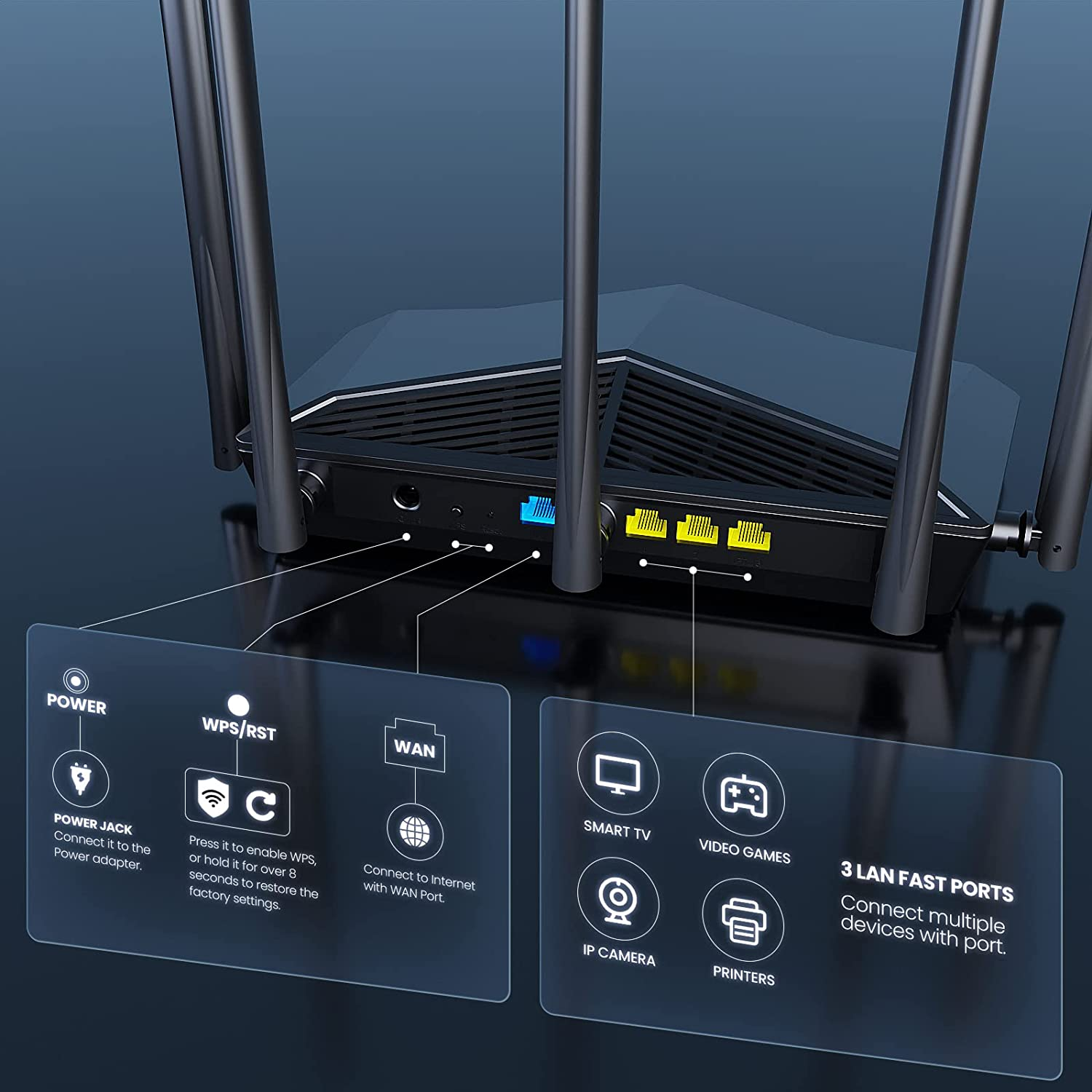

| Interface | 1*10/100/1000Mbps WAN port |
| Antenna | 5*6dBi external antennas |
| Button | 1 × WPS/Reset button |
| Power | Input：AC 100-240V~50/60Hz 0.6A Output：DC 12V⎓2A |
| Dimension | (L*W*H)261*168*60mm |
| LED indicator | SYS*1 |
| Wireless Standards | IEEE 802.11ax 6GHz IEEE 802.11ac/a/n/ax 5GHz IEEE 802.11b/g/n/ax 2.4GHz |
| Data Rate | 6GHz:Up to 2402Mbps 5GHz:Up to 2402Mbps 2.4GHz: Up to 861Mbps |
| Frequency | 2.4GHz & 5GHz & 6GHz |
| Transmit Power | CE: |
| Basic Features | SSID Broadcast: Enable/Disable Transmission Power: high, medium, low 1024QAM High Data Rate 160MHz Bandwidth Beamforming MU-MIMO OFDMA TWT BSS Color |
| Wireless Security | 2.4G/5G：WPA2-PSK WPA3-SAE/WPA2-PSK 6G：WPA3-SAE Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) Fast Encryption |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) Unify,Maxis,Maxis-special,Celcom,Digi |
| Operating Mode | AP Mode Wireless Router Mode Universal Repeater Mode（Client+AP,WISP） |
| DHCP Server | DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server | Port Forwarding DMZ Host UPnP |
| Security | Client Filter Parental Control(support black list and white list) Remote Web Management |
| Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid flood attack Forbid WAN PING from internet |
| DDNS | NO-IP, Oray.com |

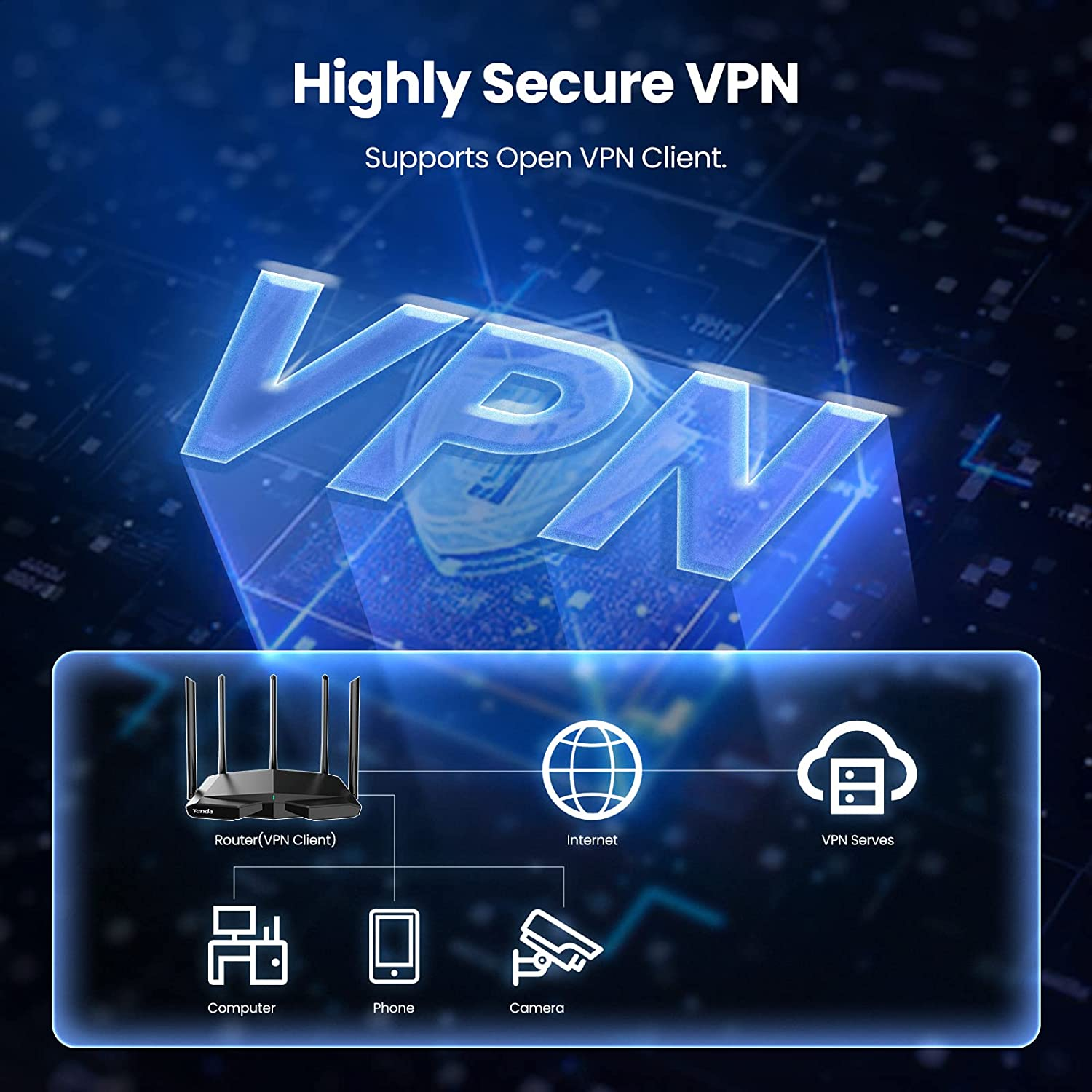

| VPN | IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client |
| Special Features | Alexa WiFi+(Mesh System) TR069 VLAN ID Smart diagnosis |
| Other | IPTV Smart Traffic Prioritisation Smart WiFi Schedule Smart Power Saving Smart LED on/off PPPoE Username/Password Clone Tenda App Bandwidth Control Guest Network System Log MAC Clone Backup & Restore Configurations Support Automatic Access Detection Firmware Upgrade Online Firmware Upgradeable via Browser |
| Temperature | Operating Temperature: 0°C ~ 40°C Storage Temperature: -40°C ~ 70°C. |
| Humidity | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. |
| Default Settings | Default Access: tendawifi.com |
| Certification | CE/FCC/RoHS |
| Package Content | Wireles Router*1 Power Adapter *1 Install Guide*1 Ethernet Cable*1 |
| REMARK | 3 Years Local Manufacturer Warranty |
