Highlights
Product Descriptions
Specifications
| Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at |
| LED Indicator | 24*Link/Act per device 24*PoE per device 1*Power per device |
| Interfaces | 24*10/100/1000 Base-T ports(Data/Power) |
| Tranmission Media | Recommended: CAT5/5e UTP or better |
| Fan Quantity | 1 |
| Dimension | 440.0mmx178.0mmx44.0mm(L*W*H) |
| Protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| Buffer | 2M |
| MAC Address | 8K |
| Jombo Frame | - |

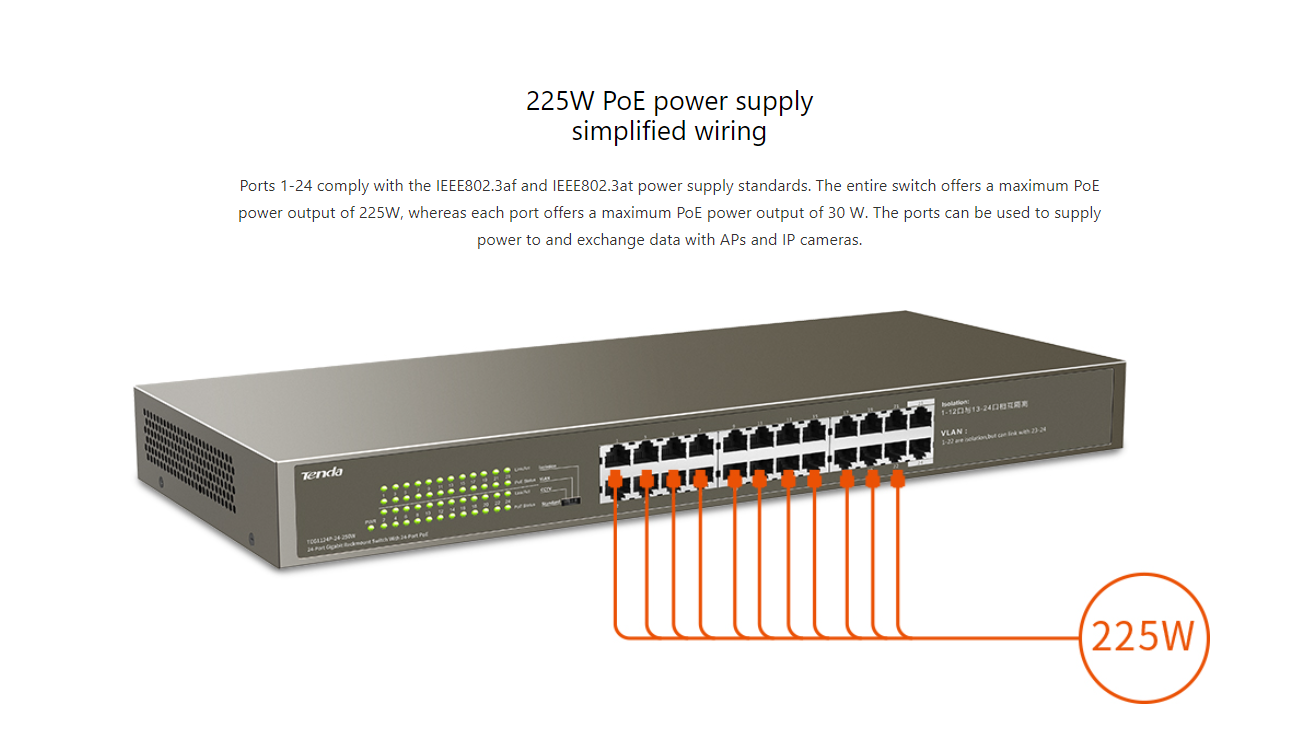

| PoE Budget | Single port: AF: 15.4W, AT: 30W Whole device: 225W |
| Power Consumption | / |
| Input Voltage | 100-240V AC 50/60Hz |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting : support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | FCC、CE、RoHS |
| Remark | 1 Year Local Manufacturer Warranty |
What's in the Box
Warranty
