Specifications
| Hardware | |
| Dimension | 184*184*40 |
| Ethernet Interface | 1 x 10/100Base TX |

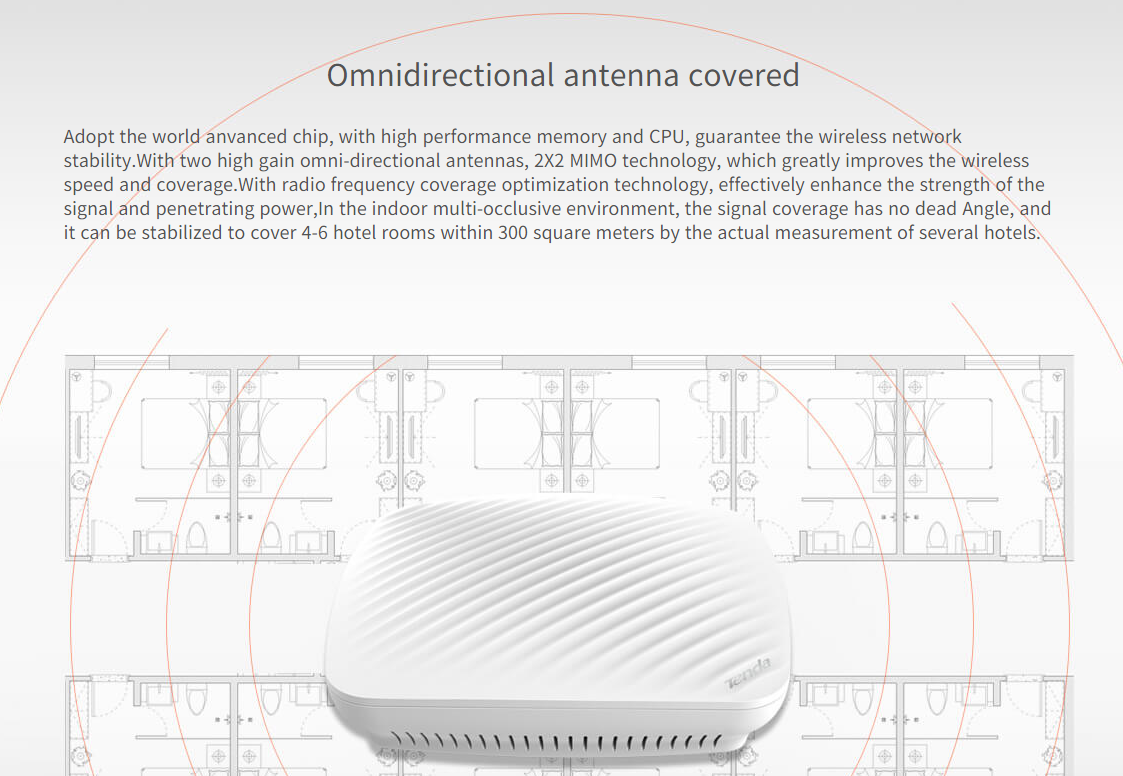

| Antenna | 2.4GHz: 2 x 4dBi |
Button | 1 x RESET |
| LED Indicator | 1 x SYS |
| Maximum Power Consumption | <8W |
| Power supply standard | 802.3af/at and DC: 12V 1A |
| Wireless | |
| Frequency Band | 2.4GHz |
| Data Rate | 2.4GHz:300Mbps |
| Wireless Standard | 802.11b/g/n |
| Max Transmit Power | 2.4GHz: 19.81dbm |
| Sensitivity | 802.11G: -77dbm |
| Software | |
| MU-MIMO | - |
| Operating Mode | AP/Client AP |
| Hide SSID | Support |
| Max. No. of SSID | 4 |
| Max. connected clients | 128 |
| WEP | Support |
| WPA-PSK | Support |
| WPA2-PSK | Support |
| WPA | Support |
| WPA2 | Support |
| Access control | Support |
| Adjustable power transmit | Support |
| AP isolation | Support |
| Connected clients control | Support |
| RSSI Threshold | Support |
| WMM | Support |
| VLAN tagging for SSID | Support |
| LED control | Support |
| Diagnostics | Support |
| Schedule Reboot | Support |
| Reboot at specified interval | Support |

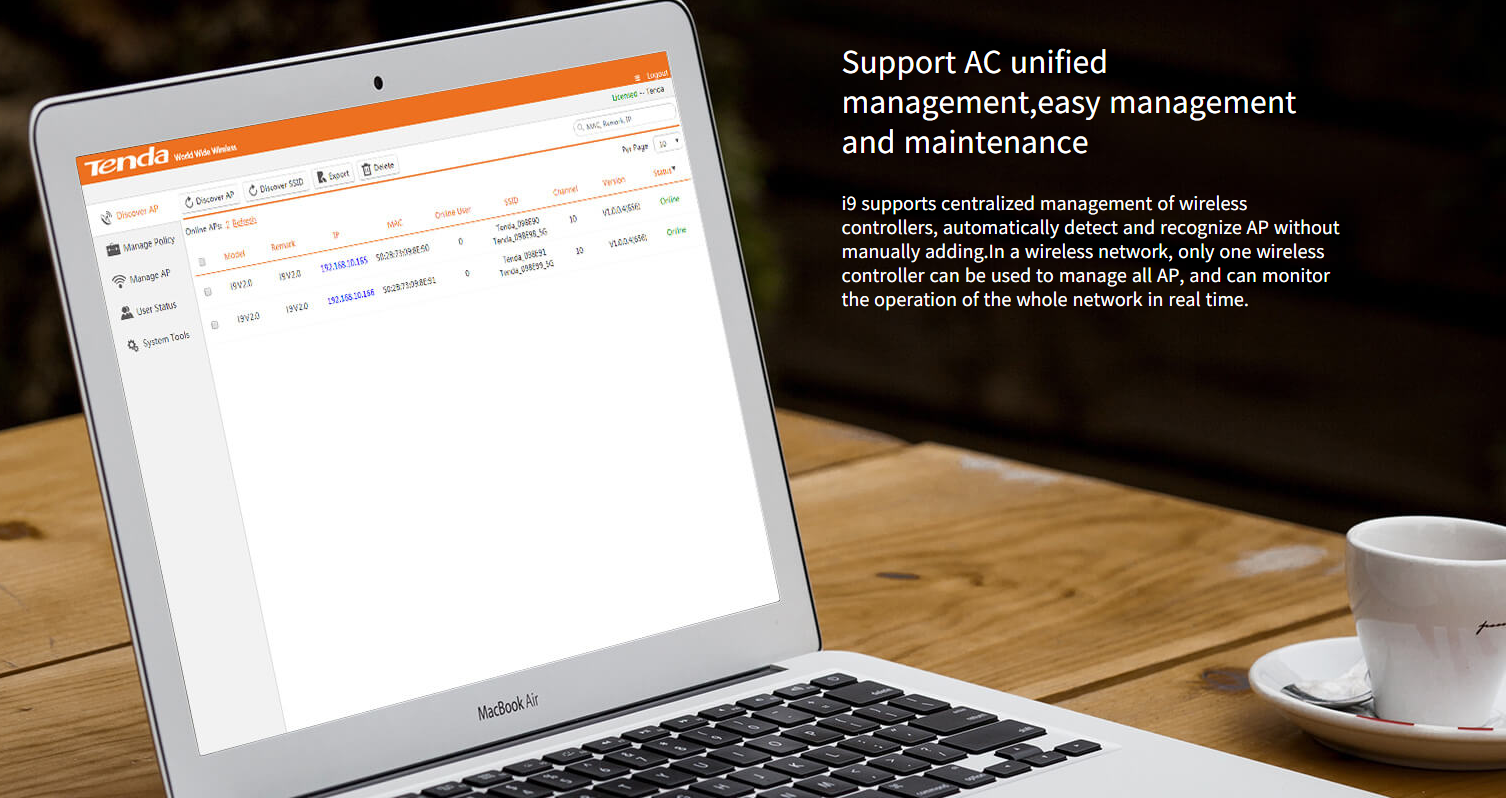

| Centralized Management | Support |
| System Logs | Support |
| Firmware upgrade | Support |
| Reboot | Support |
| Reset Button | Support |
| Backup configuration | Support |
| Restore configuration | Support |
| Others | |
| Default login IP | 192.168.0.254 |
| Default Login Username | admin |
| Default Login Password | admin |
| Operation Temperature | -10℃ ~ 40℃ |
| Operating humidity | 10%~90% non-condensing |
| Storage temperature | -30℃ ~ 70℃ |
| Storage humidity | 10%~90% non-condensing |
| Warranty | 1 Year Tenda Local Manufacturer Warranty |
