Product Description
Specifications
| Standard&Protocol | IEEE802.3, IEEE802.3u,IEEE802.3ab |
| Interfaces | 1*10/100Mbps WAN port 3*10/100Mbps LAN ports |

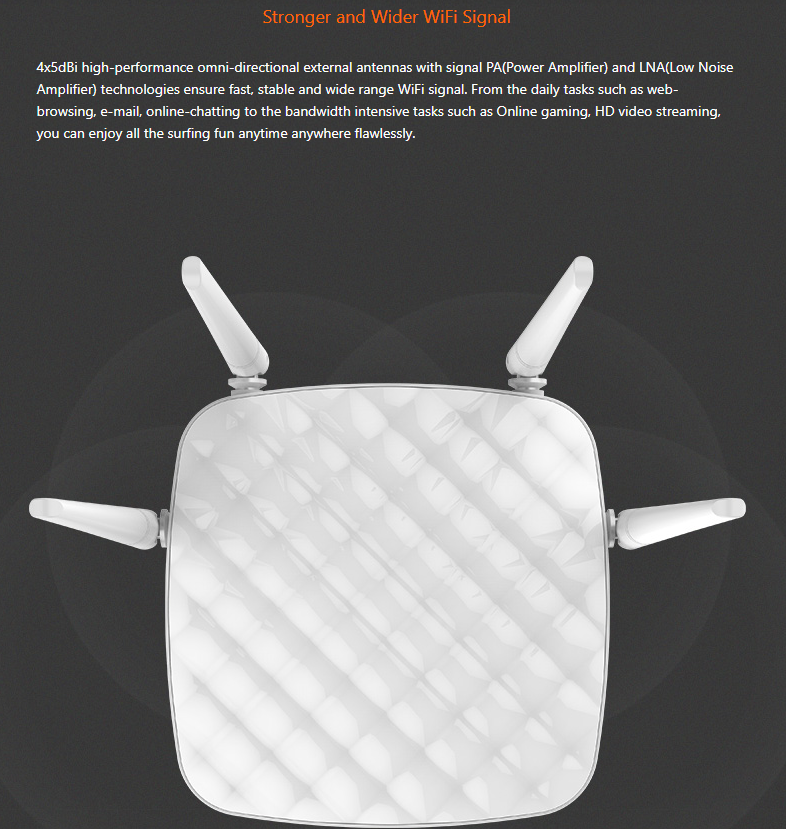

| Antenna | 4*5dBi external antennas |

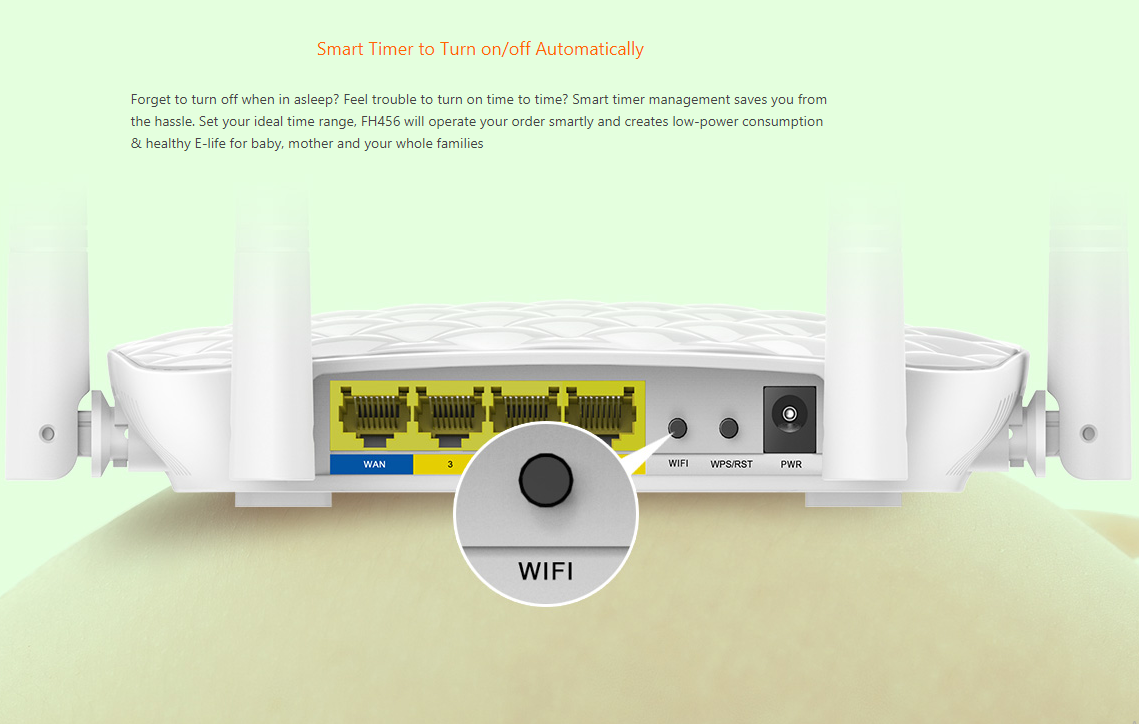

| Button | 1*WPS/RST,1*WIFI |
| Power | Input：AC 100-240V~50/60Hz 0.6A Output：DC 9V0.6A |
| Dimension | 171.3*171.3*36.4mm |
| LED Indicator | SYS 、WiFi、 1、 2、 3、 WAN 、 WPS |
| Wireless Standard | IEEE 802.11b/g/n 2.4GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| Frequency | 2.4GHz |
| Transmission Power | CE:<20dBm |
| Basic Features | WiFi On/Off Transmission Power: high, low |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP PPPoE,PPTP,L2TP |
| Operating Mode | Wireless Router Mode Universal Repeater Mode WISP Mode AP Mode |
| DHCP Server | DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server | Port Forwarding DMZ Host UPnP |
| Security | Client Filter Parental Control(support black list and white list) Remote Web Management |
| Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP attack Forbid WAN PING from internet |
| DDNS | no-ip,DynDNS,Oray |
| VPN | IPsec pass through PPTP pass through L2TP pass through |
| Special Features | PPPoE Username/password Clone Smart WiFi Schedule |
| Remark | 3 Year Local Manufacturer Warranty |
