Search
Highlights
Product Descriptions
Specifications
| Standard & Protocol | IEEE802.11a/b/g/n/ac/ax IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |

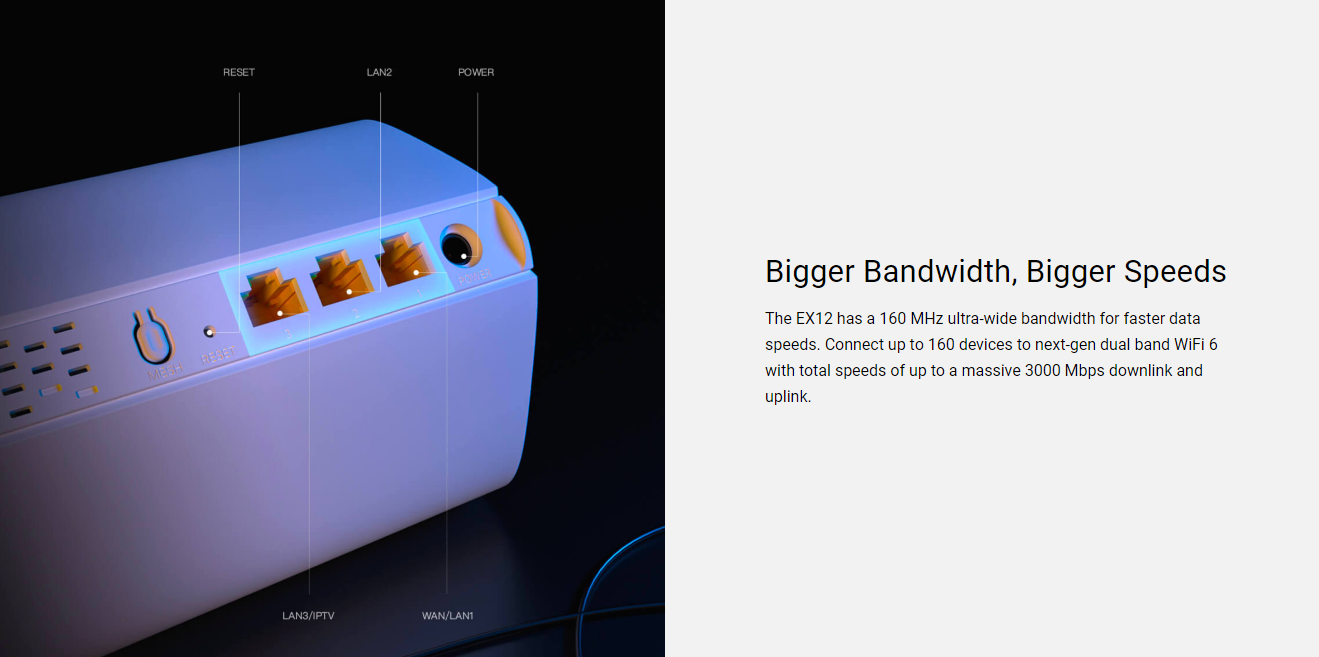

| Ethernet Interface | 3 x 10/100/1000Mbps RJ45 ports per node |
| Antenna | 4 x 3dBi Internal antenna |
| Button | 1 x Reset Button 1 x MESH Button |
| Power | Input: AC 100-240V, 50/60Hz Output: DC 12 V ⎓ 1.5 A |
| Dimension | 86x86x190mm (3.39 x3.39 x 7.48 in) |
| LED Indicator | 1 x Tri-color LED Indicator(Green, Yellow, Red) |
| Wireless Standard | IEEE802.11a/b/g/n/ac/ax |
| Wireless Roaming | Comply with IEEE802.11k/v |
| Mesh Network Standard | Wi-Fi EasyMesh |
| Rate | 2.4GHz: 574Mbps (802.11ax) 5GHz: 2402Mbps (802.11ax) |
| Frequency | CE: <2.4G: 2412-2472MHz(CH1-CH13) <5G: 5150-5350MHz(CH36-CH64) FCC: <2.4G: 2412-2462MHz(CH1-CH11) <5G: 5150-5350MHz(CH36-CH64) <5725-5850MHz(CH149-CH165) |
| Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Basic Features | Beam Forming MU-MIMO AP Steering Band Steering OFDMA 1024-QAM |
| Wireless Security | WPA3-SAE/WPA2-PSK |
| Operating Mode | PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| DHCP Server | DHCP Server, DHCP Client List |
| Virtual Server | Port Forwarding, DMZ Host, UPnP |
| Parental Control | Client Filter URL Filter Time Limit |
| Firewall | Forbid TCP/UDP flood attack |
| VPN | PPTP Server, PPTP/L2TP Client |
| DNS | Support manually setting DNS server |
| Special Features | Ethernet Backhaul IPv6 IPTV |
| Others | Support App and web management Guest Network Firmware upgrade online |
| Operation Temperature | 0 ~ 40 ℃ |
| Storage Temperature | -40 ~ 70 ℃ |
| Operating Humidity | 10%~90% RH non-condensing |
| Storage Humidity | 5%~90% RH non-condensing |
| APP installation | Available in iOS 9.0 or later, Android 4.4 or later |
| Certification | CE, FCC, RoHS |
| Remark | 3 Years Manufacturer Warranty |
What's in the Box
Warranty
