Search
Highlights
Product Descriptions
Specifications
| Hardware | |

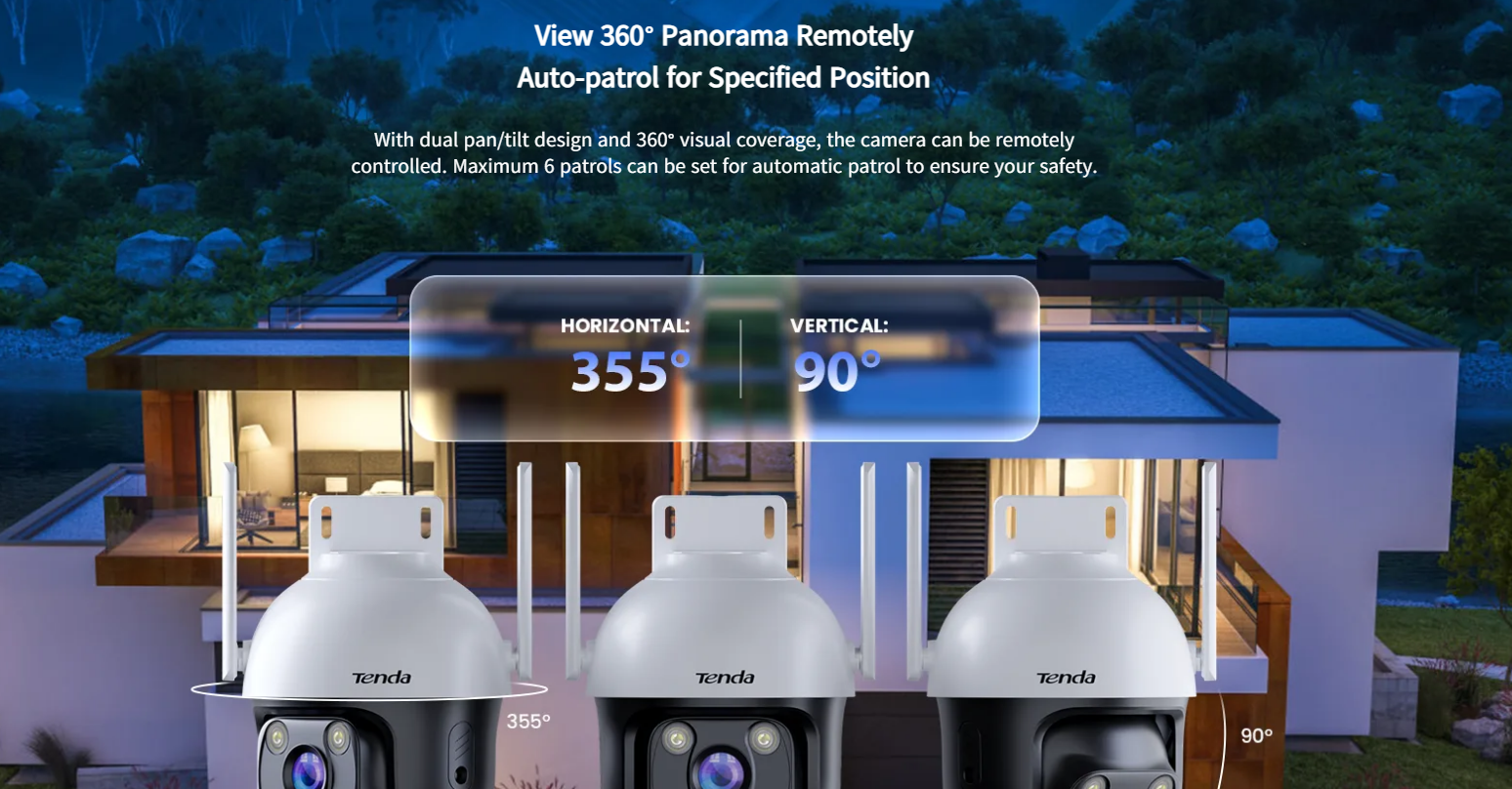

| Pan/Tilt | Horizontal viewing：360° Vertical viewing：137° Horizontal rotation：355° Vertical rotation：90° |
| Ports | Storage: Micro SD card (Up to 256G, Class10 and above) Power: DC 12V 1A Ethernet: One RJ45, 10M/100M auto-negotiation Ethernet port |
| Lens | [email protected], view angle: 108° diagonal, 90° horizontal, 47° vertical |
| Button | Reset x 1 |
| LED Indicator | Dual color (red & blue) LED indicator x 1 |
| Antenna | Dual external antennas |
| Product Size | 138mm*120mm*187mm |
| Video Parameter | |
| Resolution | 2560 x 1440 |
| Frame Rate | Up to 30fps |
| Coding Standard | H.265/H.264 |
| Day and Night Shift Mode | ICR type |
| Noise Reduction | 3D digital noise reduction |
| DWDR | Support |
| Backlight Compensation | Support |
| ROI | Support |
| Wireless Parameter | |
| Wireless Standard | IEEE 802.11b/g/n @2.4GHz |
| Wireless Rate | 300Mbps |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Channel Width | 20/40 MHz |
| Modulation | DSSS/OFDM |
| Frequency Band | 2.4GHz(DSSS/OFDM): 2412MHz-2472MHz(CH1-CH13) |
| Transmit Power | 2.4GHz: <0.04W(EIRP) |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Others | |
| Smart Alarm | Motion detection&Human detection&Human tracking |

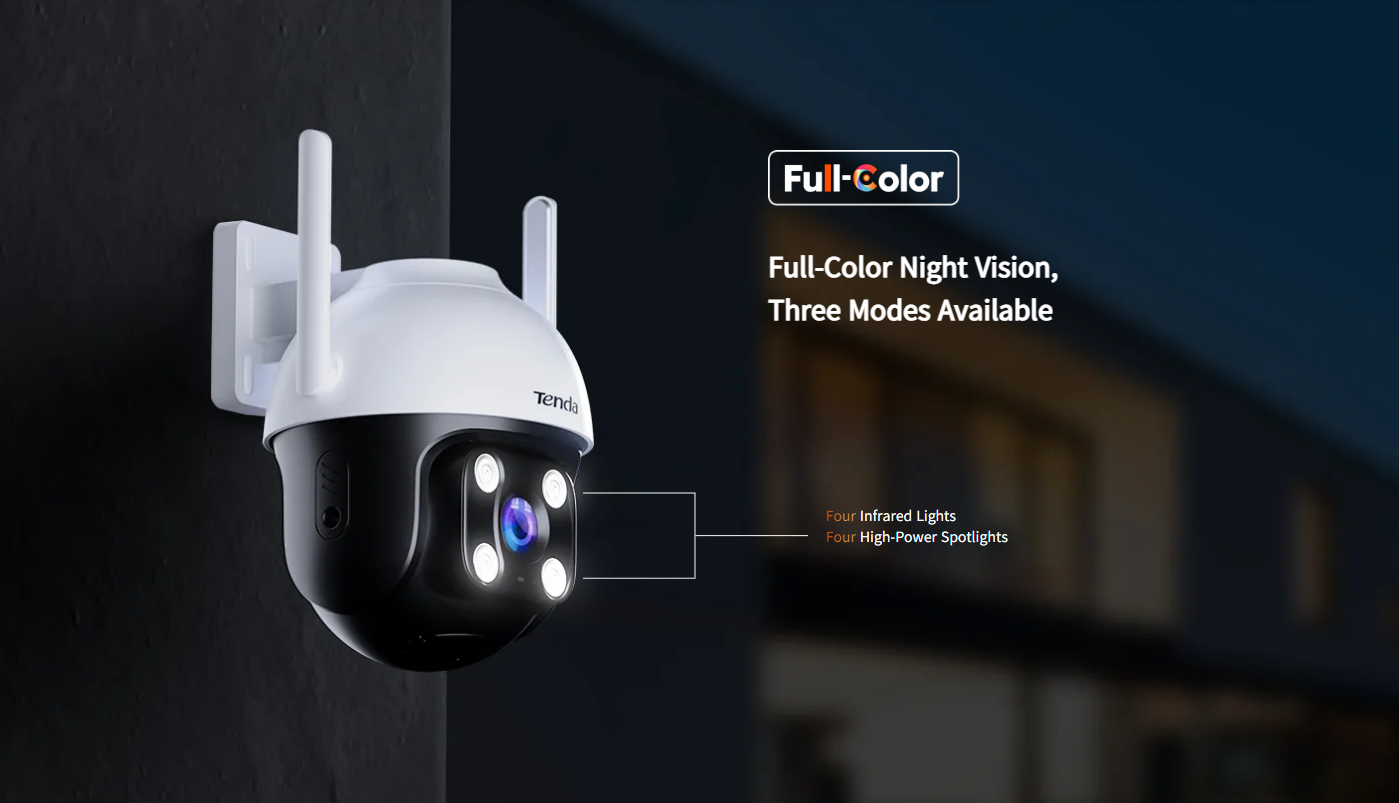

| Supplementary Light | Four IR lights, four spotlights |
| Alarm | Sound&light alarm |
| Audio | Full-duplex two-way audio |
| DIY Audio | Up to 3 customized audio |
| Auto Patrol | Panoramic patrol&Preset patrol |
| Presets | 6 |
| Infrared Night Vision Distance | 30 meters (Depending on environment) |
| ONVIF Protocol | Support |
| Temperature | Operating temperature: -30°C~60°C Storage temperature: -40°C~70°C |
| Humidity | Operating humidity: 10%~95%RH (non-condensing) Storage humidity: 3%~95%RH (non-condensing) |
| Waterproof Level | IP65 |
| Certification | CE, RoHS, FCC, RCM,UKCA |
| Package Contents | Outdoor Wi-Fi Camera Power Adapter (cord length: 3m) Mounting Bracket Mounting Accessories Kit Waterproof Kit Quick Installation Guide |
| Warranty | 2 Year Warranty |
What's in the Box
Warranty
