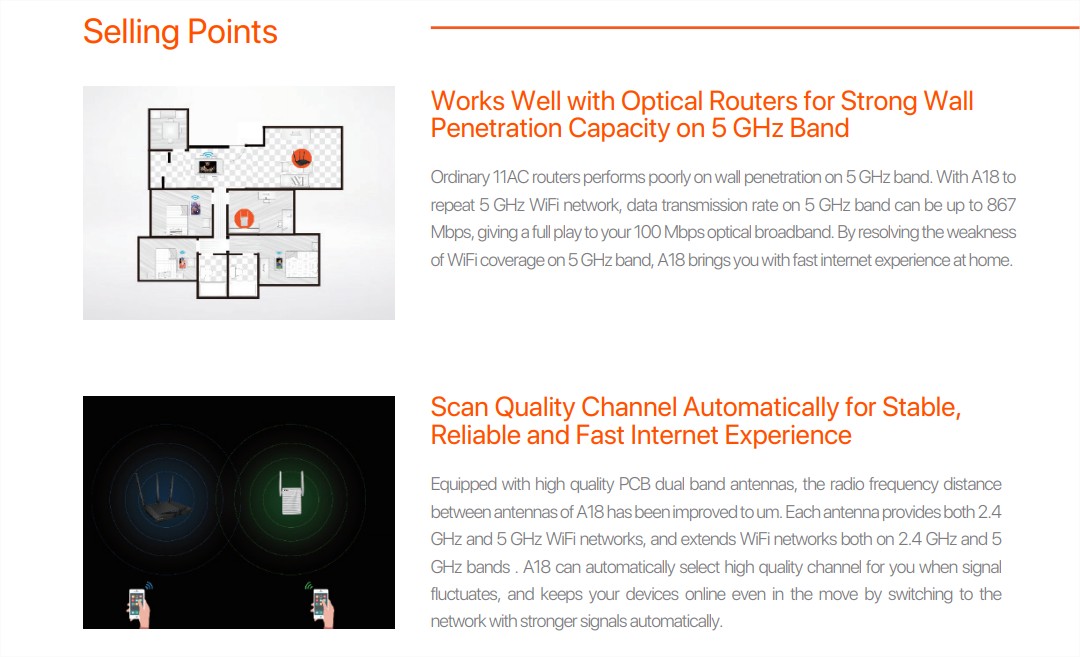

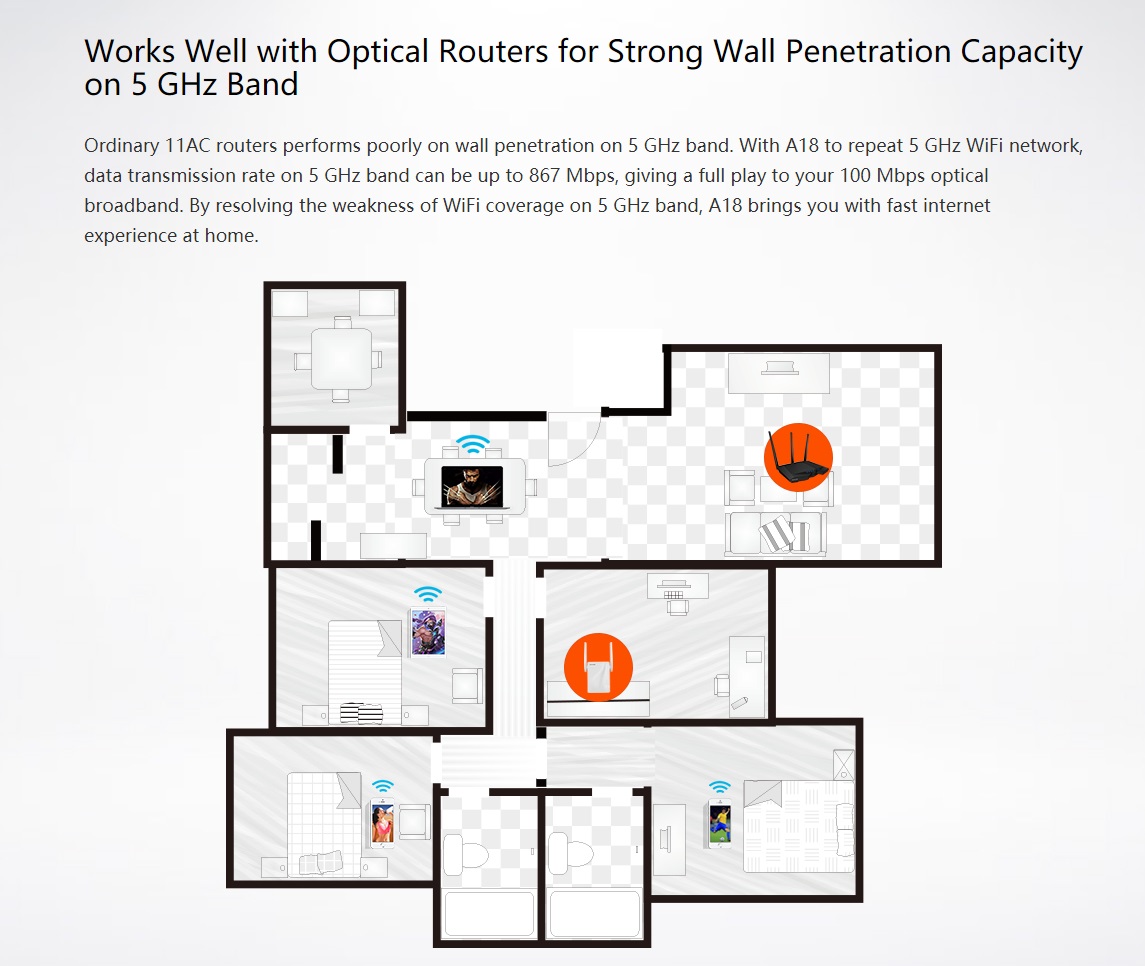

Highlights

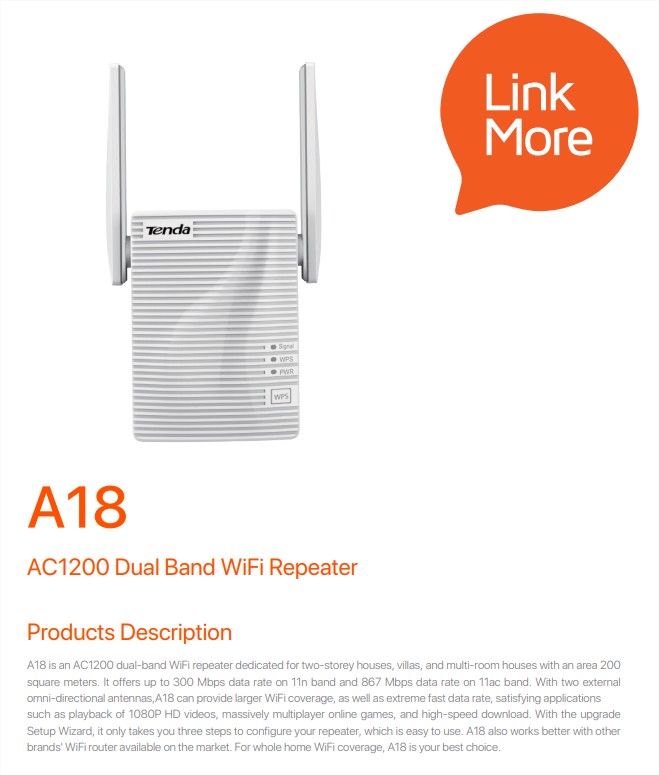

Product Descriptions
Specifications
| Hardware | |

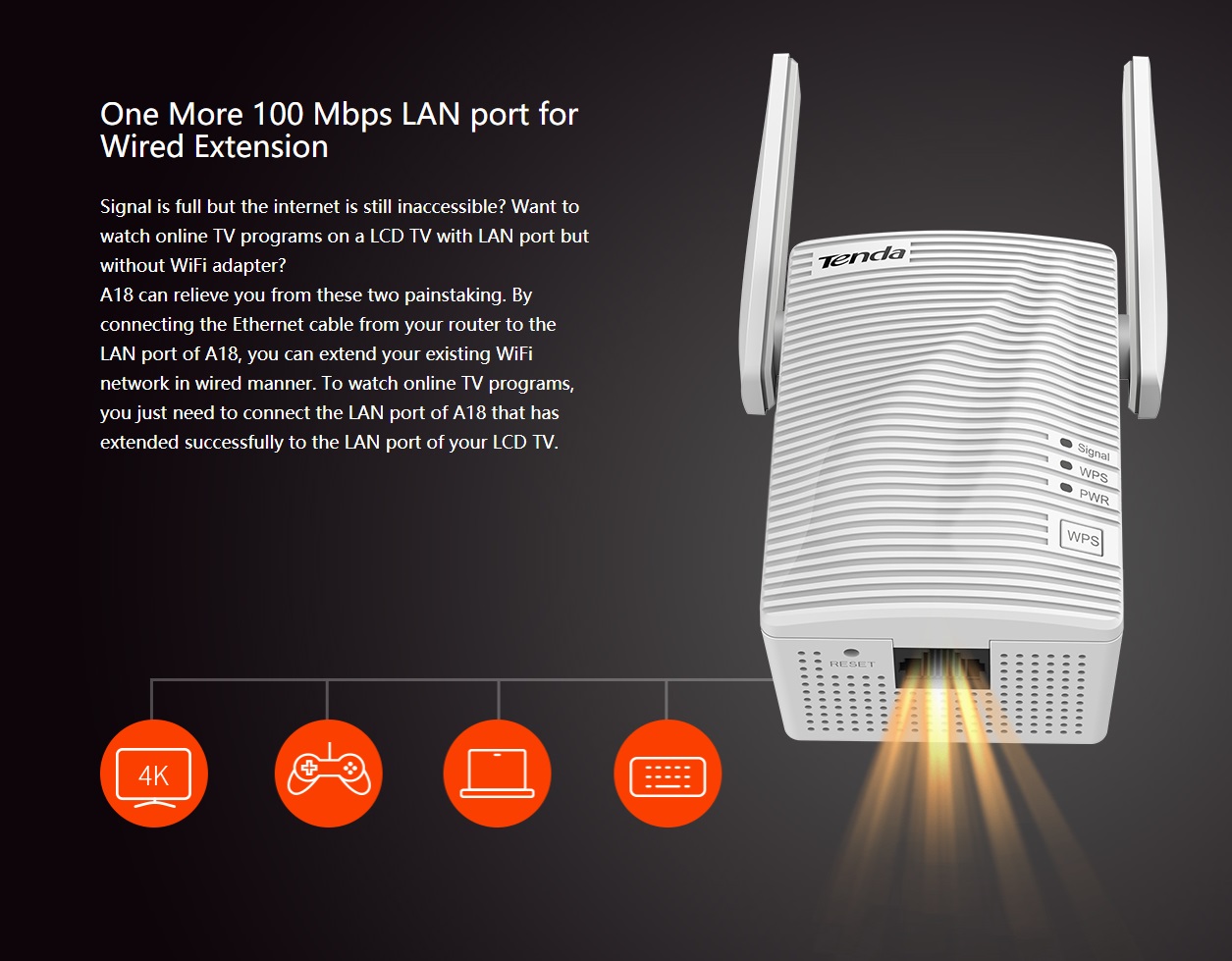

| Port | 1 x 10/100 Mbps RJ45 |
| Button | Reset, WPS |

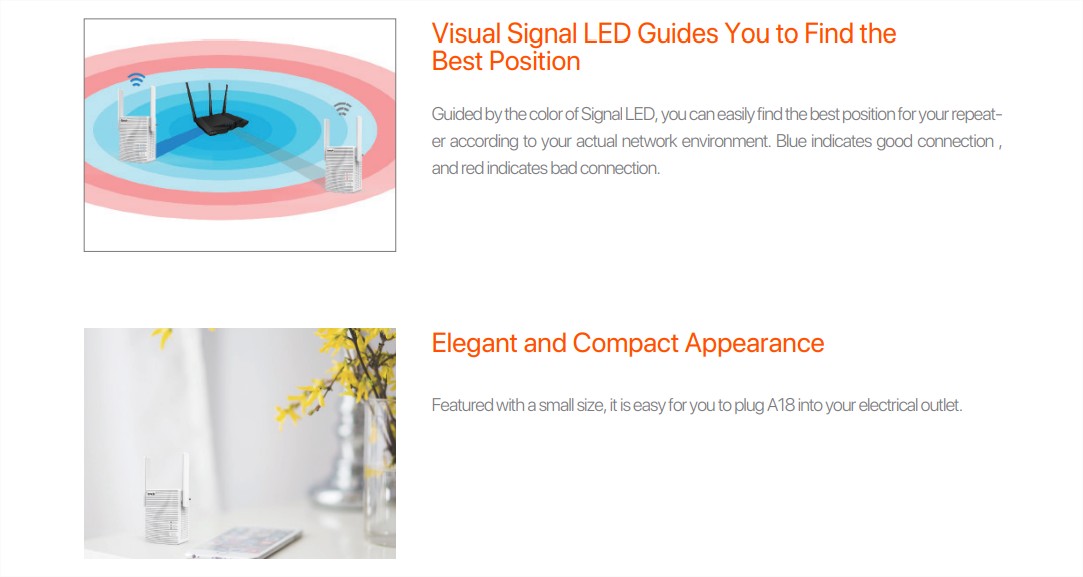

| LED indicator | 1 x Signal LED 1 x WPS LED 1 x Power LED |
| Flash memory | 2MB |
| Memory | 32MB |
| Power supply | 9V 0.8A, built-in |
| Power plug | UK 3 pin |
| Power consumption | No-load: 2.8W, Full-load: 5.2W |
| Wireless | |
| Standard | IEEE 802.11a, IEEE 802.11n, and IEEE 802.11ac wave2 on 5 GHz IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n on 2.4 GHz |
| Data rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps 802.11ac: 867 Mbps |
| Frequency band | 11n: 2.412-2.484 GHz 11ac: 5.15-5.25 GHz, 5.725-5.85GHz |
| Antenna | 2 x External 2dBi dual-band omni-directional antenna (non-detachable) |
| Recommended application scenario | 200 square meters |
| Wireless security protocol | Encryption mode: Mix WPA-PSK/WPA2-PSK WPA algorithm: TKIP&AES |

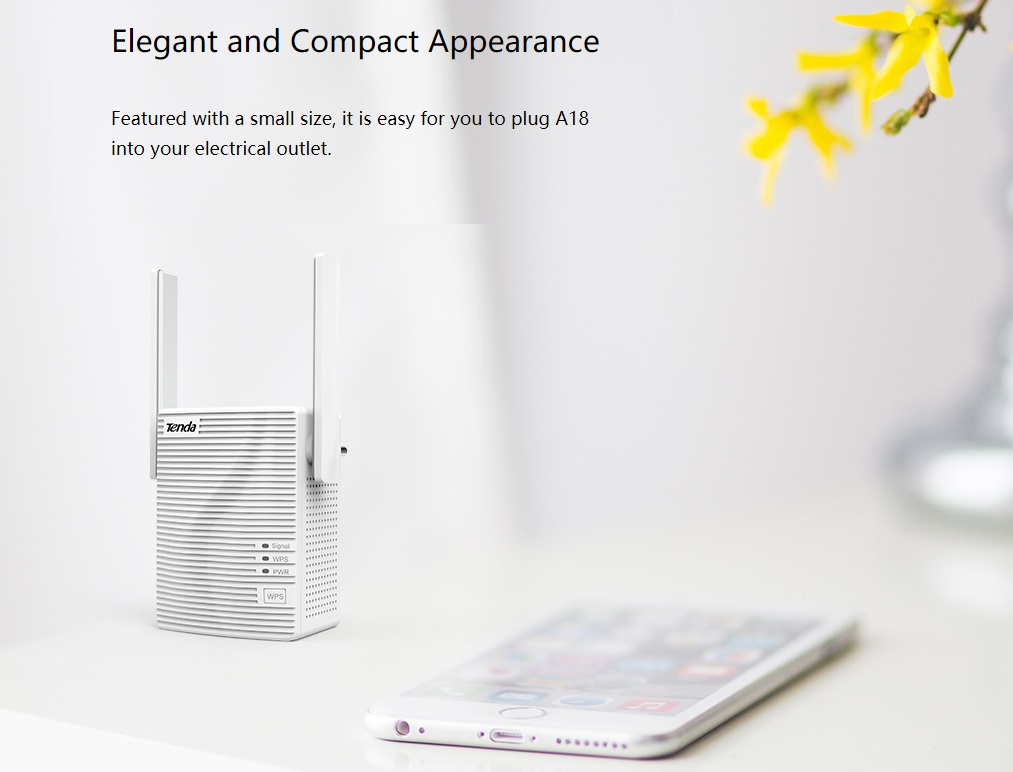

| Dimensions | 80mm x 58mm x 48mm |
| Software | |
| Channel Bandwidth | 11n: 20/40MHz by default 11ac: 80MHz by default |

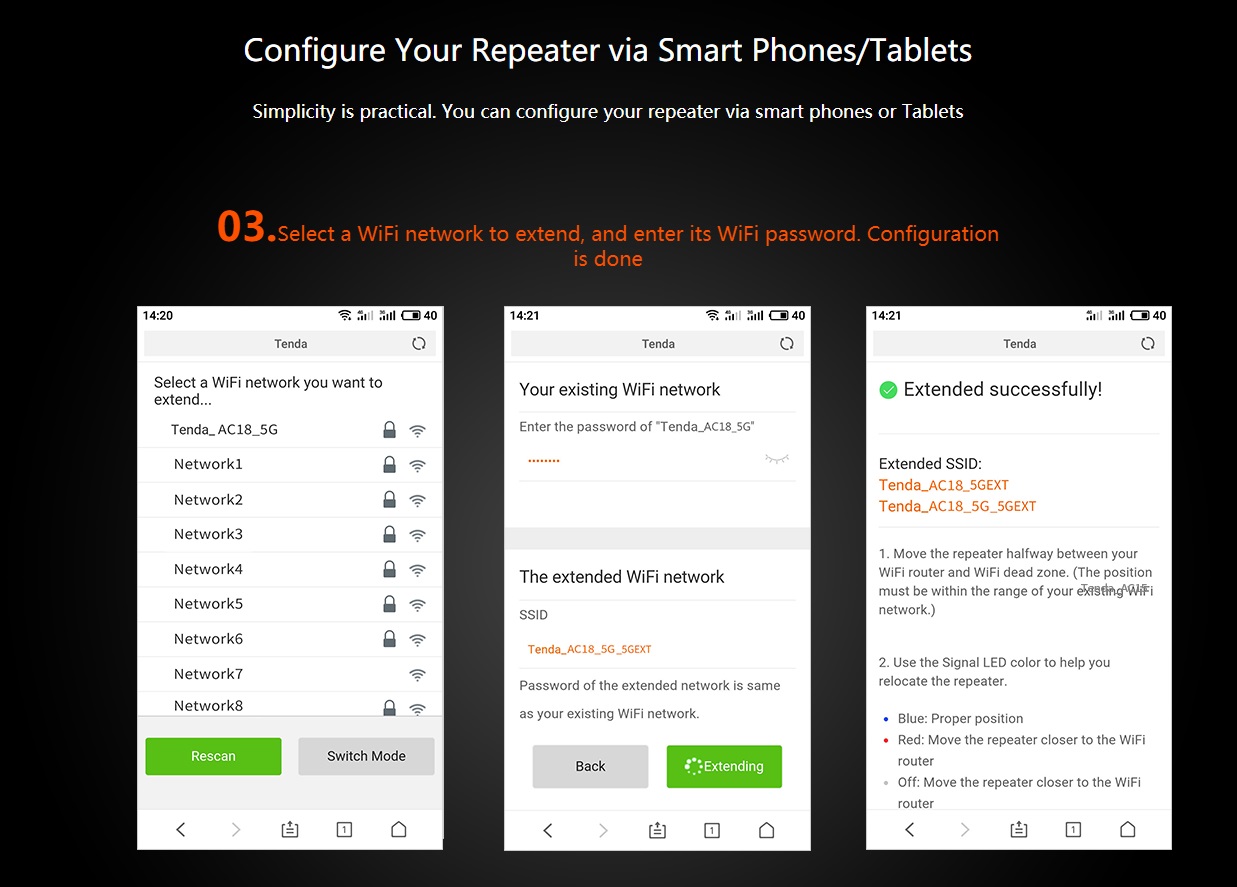

| Operating mode | Repeater Mode AP Mode |

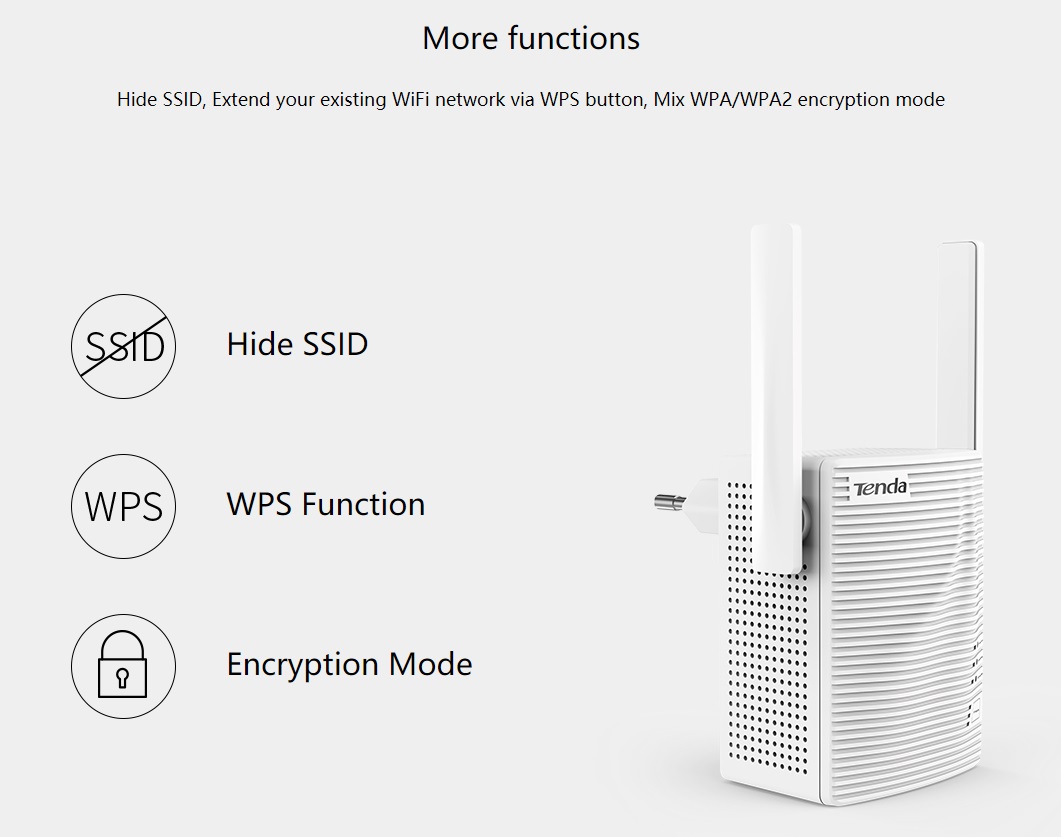

| Wireless security protocol | Default encryption mode: Mix WPA-PSK/WPA2-PSK Blacklist Hide SSID |
| DHCP Server | Supported |
| System Tools | Firmware upgrade, Restore factory settings, Login password, and Reboot |
What's In The Box
Warranty
