Product Description

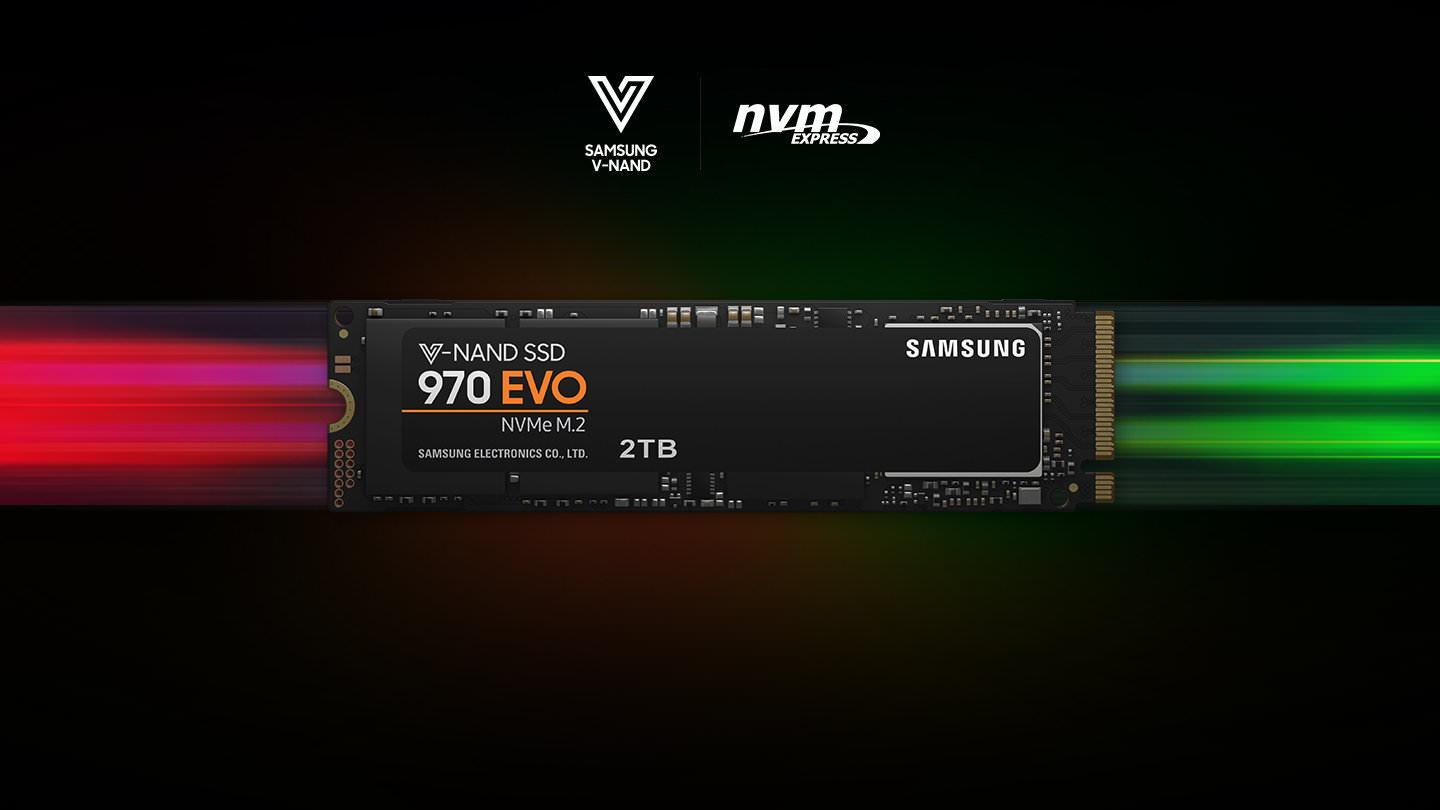

The SSD that goes further
Accelerate into next-gen computing. The Samsung 970 EVO delivers breakthrough speeds, best-in-class reliability, and a broad range of capacity options up to 2TB*. The latest V-NAND, new Phoenix controller, and Intelligent TurboWrite technology enhance high-end gaming and 4K & 3D graphic editing.

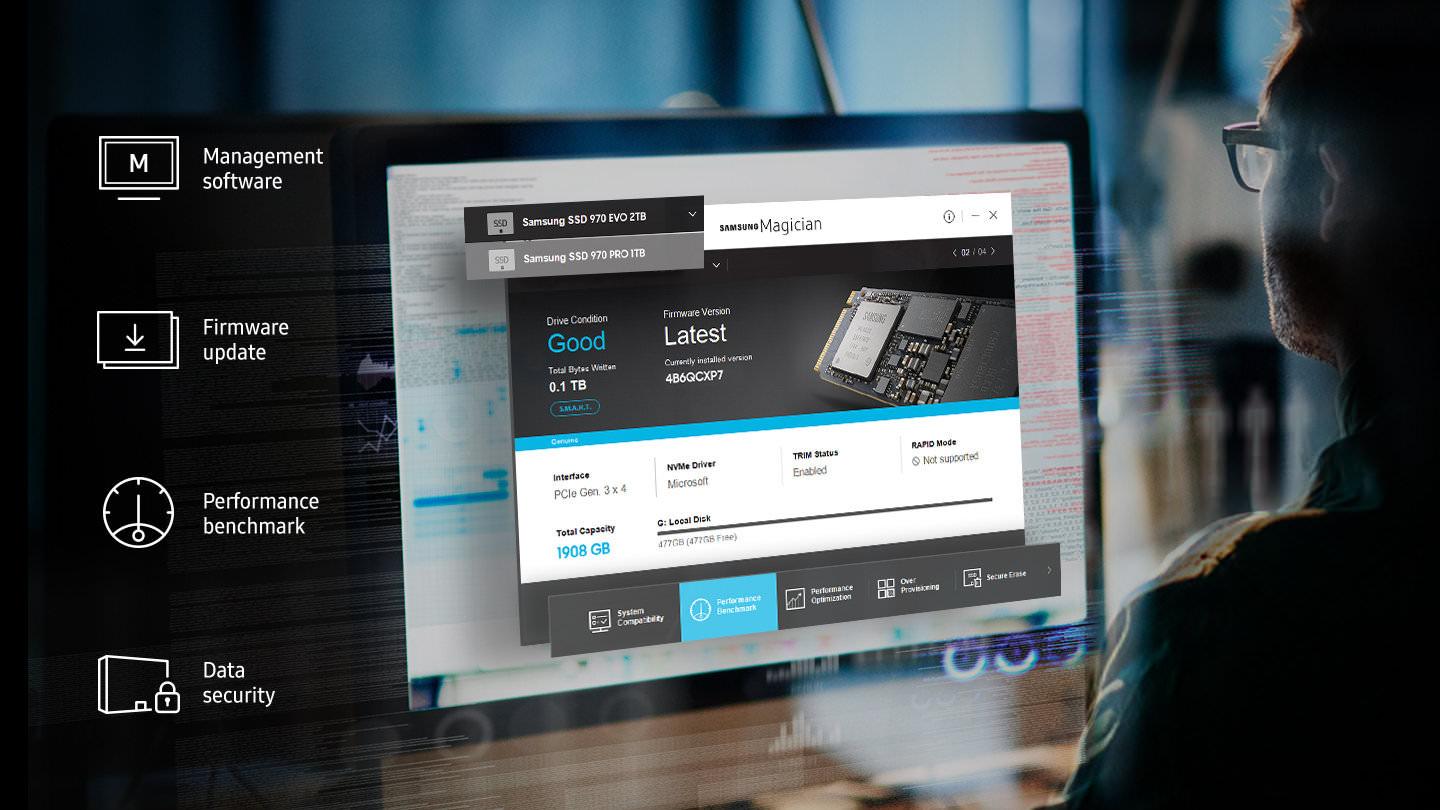

Samsung Magician
Advanced drive management made simple. Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
Specification
Type
Series: SSD 970 EVO
Usage Application: Client PCs
Interface: PCIe Gen 3.0 x4, NVMe 1.3
Storage
Capacity: 250GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features
Sequential Read Speed
Up to 3,400 MB/s
* Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 2,300 MB/s
* Performance may vary based on system hardware & configuration
Random Read Speed
Random Read (4KB, QD32): Up to 370,000 IOPS Random Read
Random Read (4KB, QD1): Up to 15,000 IOPS Random Read
* Performance may vary based on system hardware & configuration
Random Write Speed
Random Write (4KB, QD32): Up to 450,000 IOPS Random Write
Random Write (4KB, QD1): Up to 50,000 IOPS Random Write
* Performance may vary based on system hardware & configuration
Controller: Samsung Phoenix Controller
NAND Flash: Samsung V-NAND 3-bit MLC
Trim Support: Supported
AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Device Sleep Mode Support: Yes
Internal Storage: Yes
Temperature proof: Yes
NVMe: Yes
Gaming SSDs: Yes
General
Average Power Consumption (system level)
* Average: 5.7 W
* Maximum: 10 W (Burst mode)
Power consumption (Idle): Max. 30 mW
Voltage: 3.3 V ± 5 % Allowable voltage
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
* Actual power consumption may vary depending on system hardware & configuration
Environmental Specs
Operating Temperature: 0 - 70 ℃ Operating Temperature
Shock: 1,500 G & 0.5 ms (Half sine)
Form Factor
Product: M.2 (2280)
Dimensions (W x D x H)
Product: 8.02cm x 0.22cm x 2.21cm
Weight
Product: Max 7.93gram
Software
Management SW: Magician Software for SSD management
Warranty
