Specifications
| Hardware | |
| Host Connector | USB-C® / USB™ 2.0 Type-A |
| Image Sensor | 1/2.9” CMOS sensor |

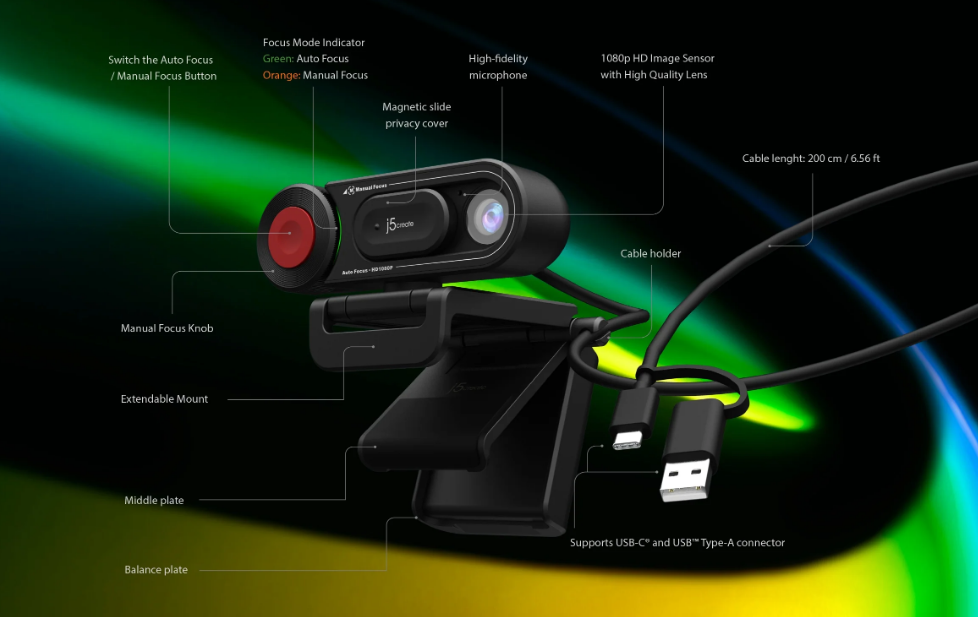

| Led Indicators | -Auto Focus (AF): Green Light -Manual Focus (MF): Orange Light |

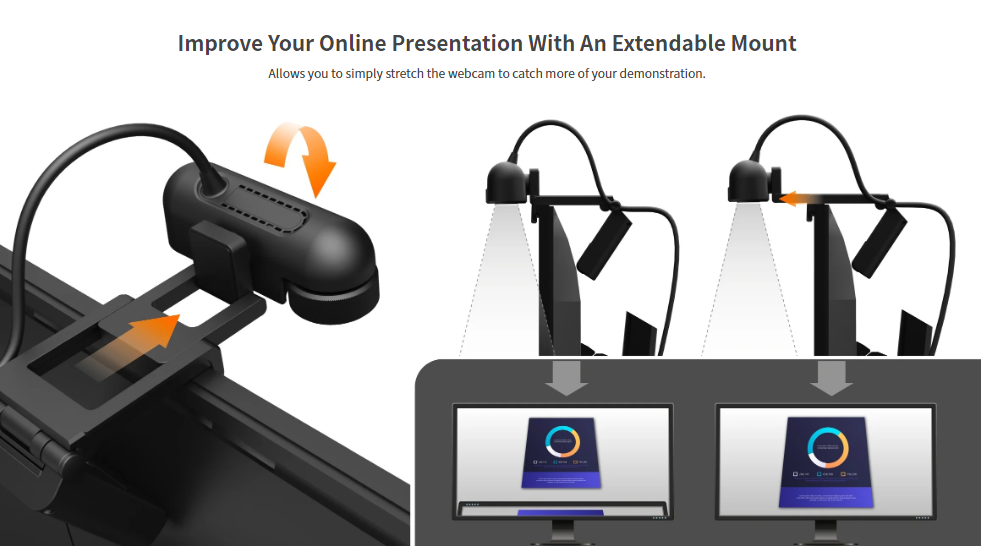

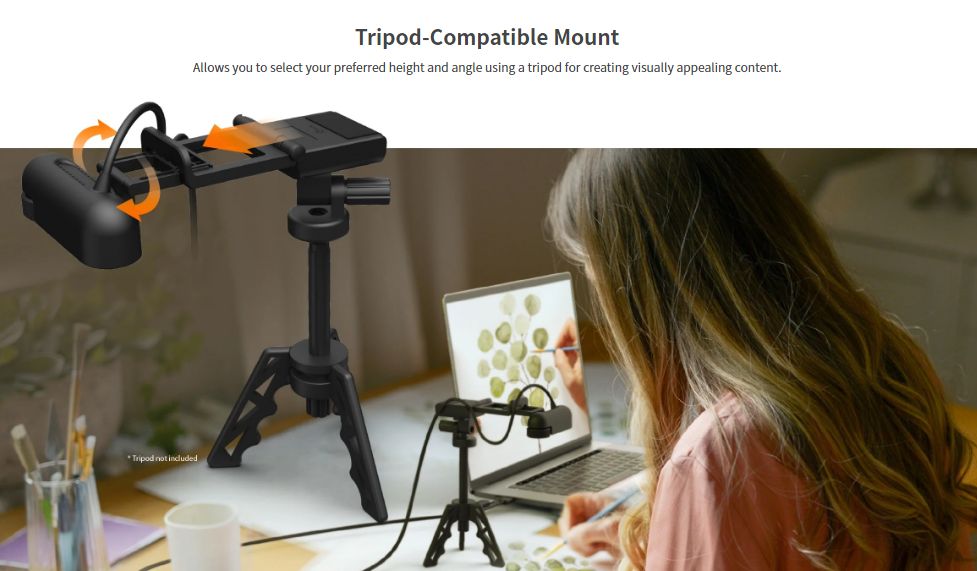

| Mounting Style | Monitor clamp mount and tripod mount with drawer slide |
| Operating Voltage And Current | 5V/280~320 mA ± 5 mA |
| Privacy Cover | Yes |
| Protocol | USB™ 2.0/UVC 1.1/UAC 1.0 |

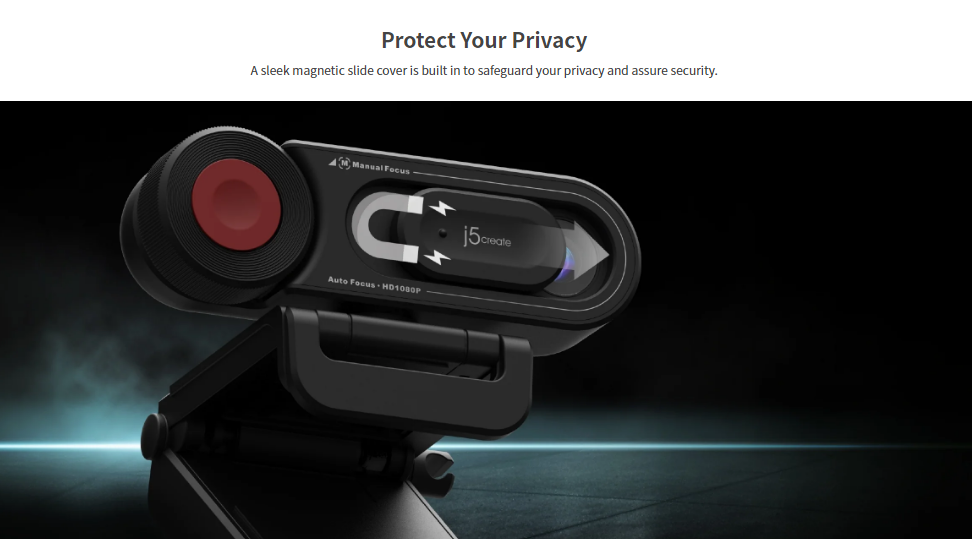

| Shutter Style | Electronic rolling shutter with magnetic slide privacy cover |
| Warranty | 1 Year Limited |
| Performance | |
| Display Fov | 83.3° (Horizontal: 75.4°) |

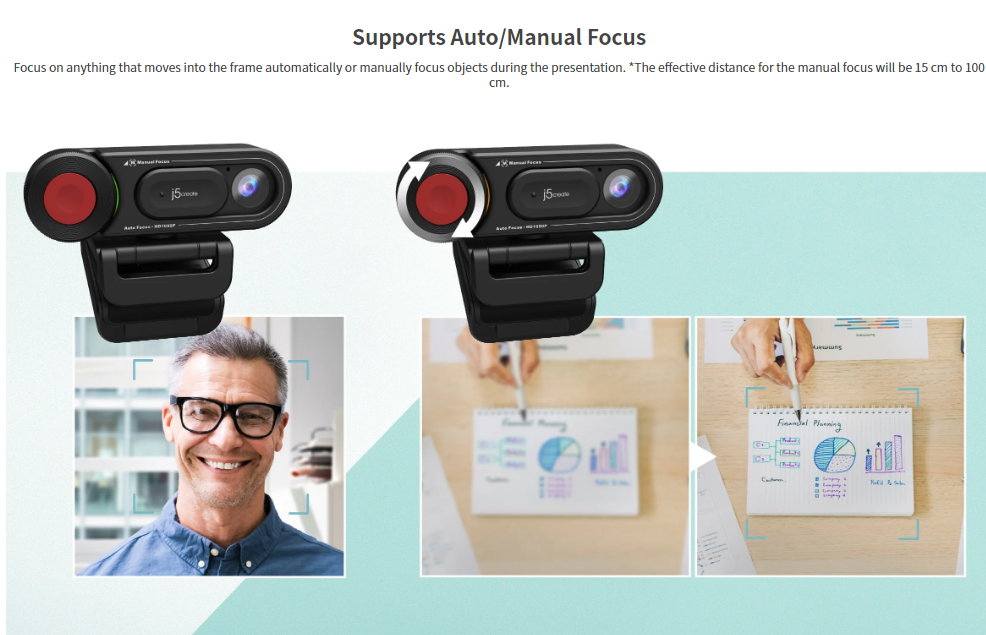

| Display Mode | - Auto Focus - Manual Focus |
| Effective Pixels | 1920(H) × 1080(V) |
| Frame Rate | 1080p/ 720p/ 640p / 480p / 360p @ 30FPS |
| Max Display Refresh Rate | 30 Hz |
| Megapixels | 2 million pixels (2MP) |
| Microphone | Built-in high-fidelity microphone |
| Output Format | H.264, MJPEG, YUV |
| Supported Resolution - Output | H.264: 1920 x 1080 1280 x 720 640 x 480 640 x 360 MJPEG: 1920 x 1080 1280 x 720 640 x 480 640 x 360 YUY2: 640 x 480 |
| Physical Specifications | |

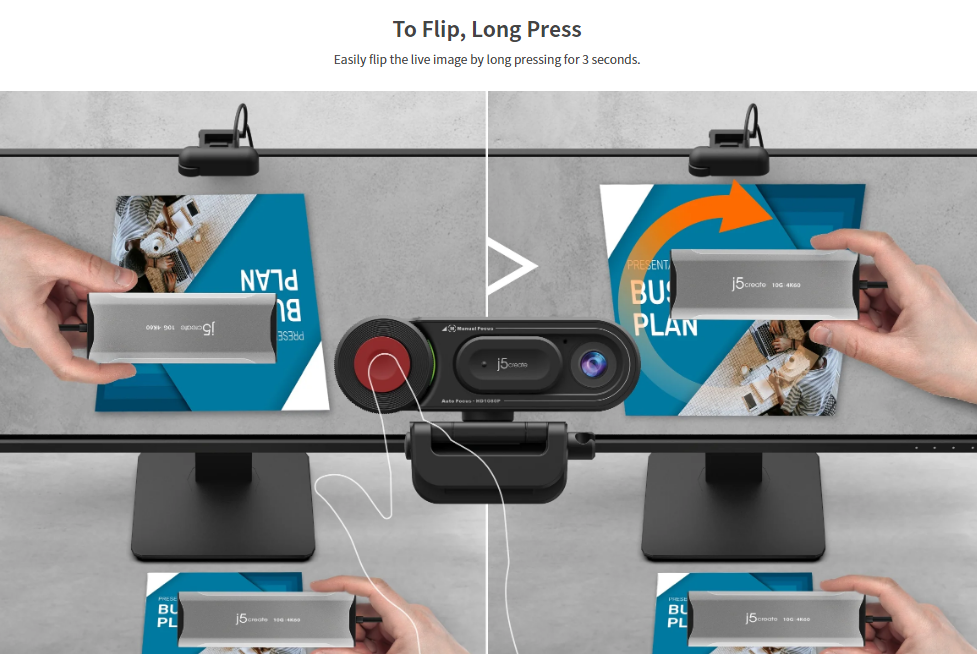

| Buttons | 1 - Button:
1 - Spin Wheel: Focus Adjustment |
| Cable Length | Built-in USB-C® cable with USB™ Type-A converter (200 cm/ 6.56 ft) |
| Color | Black |
| Enclosure Type | ABS (Housing) / PC (Panel) |
| Length | 4 in (100.72 mm) |
| Lens Kit | - LENS: PC+30%GF(Housing) / Glass + COC - VCM (Voice Coil Motor): Holder (LCP) / Stainless Steel piece/ Magnetic Coil |
| Operating Humidity | < 90% non-condensing |
| Operating Temperature | 41°F to 104°F (0°C to 40°C) |
| Storage Humidity | 90% non-condensing |
| Product Depth | 2.7 in. (68.5 mm) |
| Product Height | 2.3 in (58 mm) |
| Product Weight | ≒ 235 g |
| Storage Humidity | < 90% non-condensing |
| Storage Temperature | –4°F to 140°F (-20°C to 60°C) |
