Highlights
Descriptions
Specifications
| Hardware | |
| Audio Supported | Yes: DTS-HD/Dolby® True HD /LPCM7.1/DTS/Dolby®-AC3/DSD |
| Host Connector | HDMI™ Female |
| Led Indicators | Red light shows video signal |

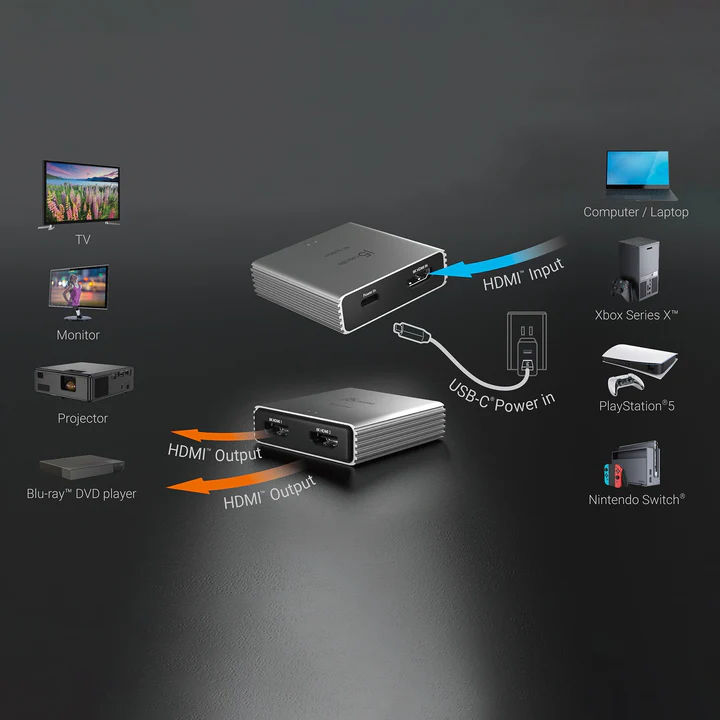

| Ports | 1 - 8K HDMI™ In 2 - 8K HDMI™ Out |
| Power Source | self-powered |
| Usb pass-through | N/A |
| Video Output | HDMI Female |
| Warranty | 2 Year Limited |
| Performance | |
| Audio Channel | 7.1 via HDMI™ |
| Displays Supported | 2 |
| Hdcp compliance | HDCP 2.2/2.3 and HDCP 1.4 |
| hdr supported | HDR 10 / HDR 10+ / Dolby Vision® / HLG |
| Maximum Data Transfer Rate | N/A |
| Max Display Refresh Rate | Maximum Display Refresh Rate (1 Input): Maximum Display Refresh Rate (2 Output): |
| wide screen supported | N/A |
| Power | |
| Power Consumption | ≤ 500 mA |
| Power Delivery | N/A |
| Physical Specifications | |
| Cable Length | N/A |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 104°F (0 to 40°C) |

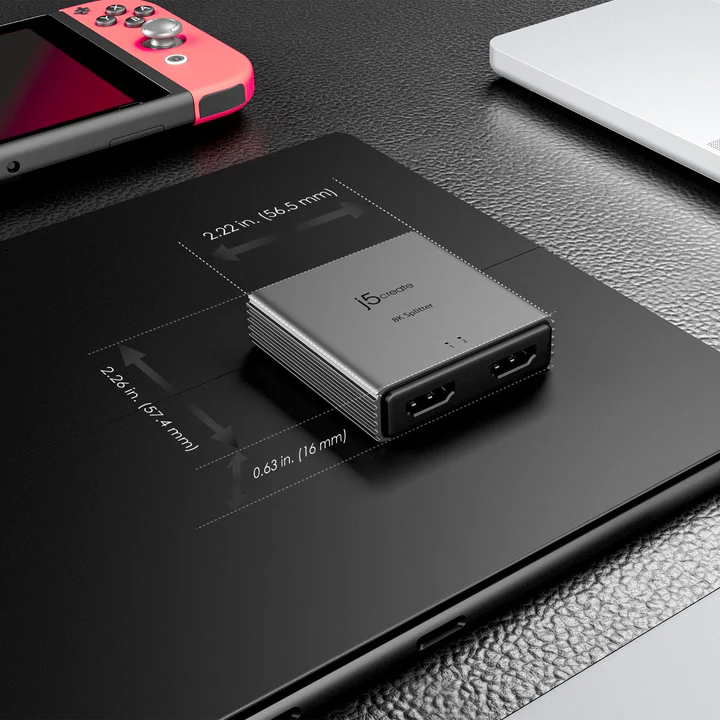

| Product Depth | 2.22 in. (56.5 mm) |
| Product Height | 0.63 in. (16 mm) |
| Product Weight | 1.59 oz (45g) |
| Product Width | 2.26 in. (57.4 mm) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
What's in the Box
Warranty
