j5create JCH453 USB4 8K60 USB Type-C / Type-A 6-in-1 Functions Slim Hub

RM379.00

Product SKU

J5-JCH453

Please select any variant

Quantity

1 unit available

Please input quantity

Highlights

Supports resolutions up to 8K60 and 4K144

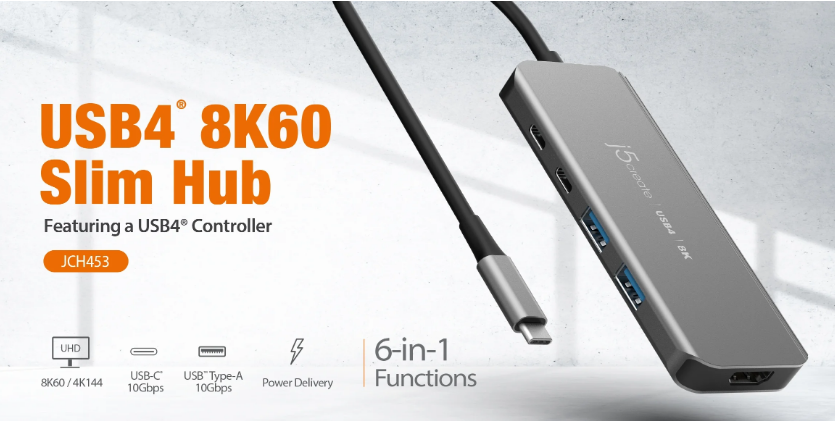

USB4 8K60 Slim Hub
6-in-1 Functions
Compatible with Thunderbolt 4, Thunderbolt 3 or other USB-C host laptops

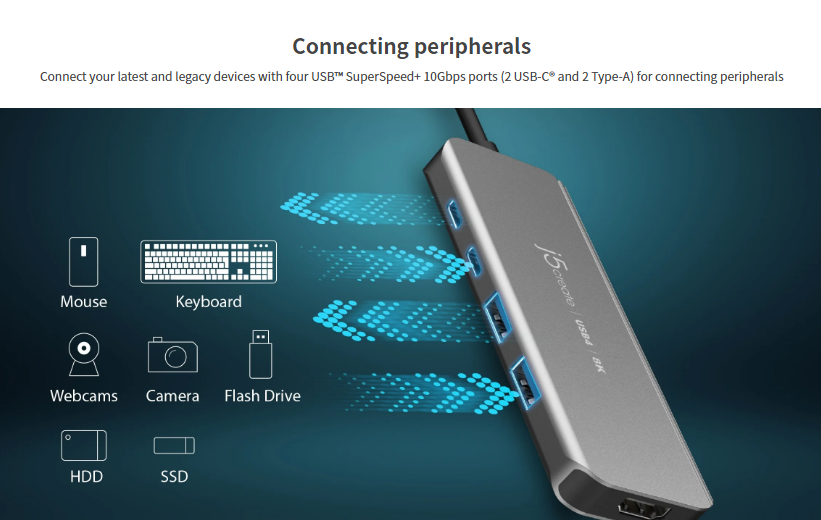

Two SuperSpeed+ USB Type-A 10Gbps port to accommodate modern peripherals
Two USB-C port supports up to 10Gbps data transmission

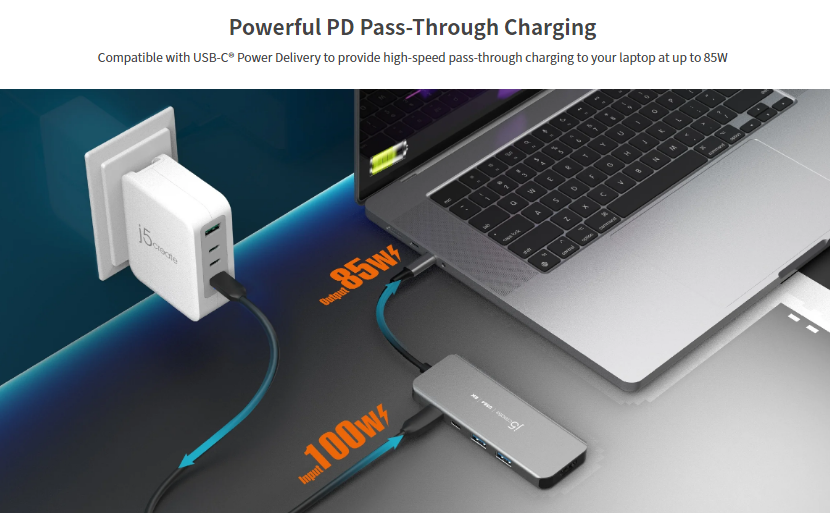

Power Delivery 3.0 offers up to 100W of pass-through charging
Multiple data and display protocols efficiently share bandwidth to offer optimal performance
Wide compatibility with various operating systems and devices
Plug-and-play, no driver installation required
2 Years Local Manufacturer Warranty

Product Descriptions

Specifications

Hardware
Warranty	2 Year Limited
Host Connector	1 - USB4® Male
Power Source	Bus-powered or self-powered
Audio Supported	Yes

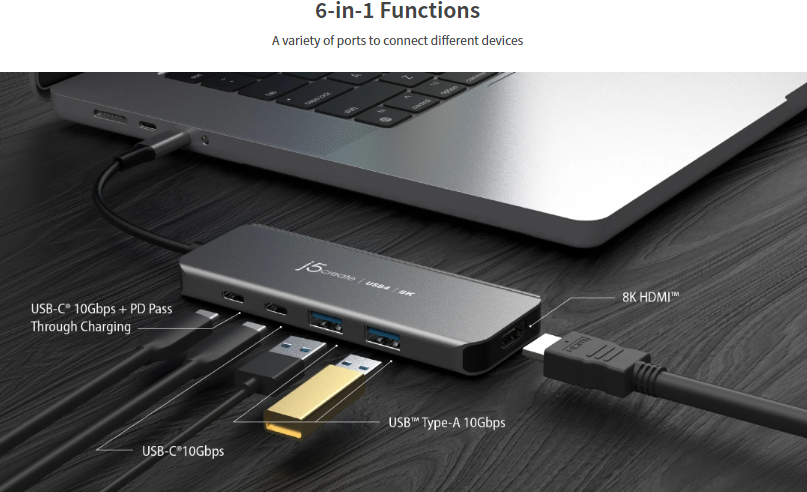

Ports	1- USB-C® 3.2 Gen2 10Gbps data transmission 1- USB-C® power delivery 3.0 100W with 10Gbps data transmission 2- USB™ Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI™
Video Output	1 - HDMI™ Female
Performance
Audio Channel	2.1 via HDMI™
Displays Supported	1
Max Data Transfer Rate	10Gbps
Max Display Refresh Rate	144Hz @ 1920 x 1080 144Hz @ 2560 x 1440 60 Hz @ 3840 x 2160 144 Hz @ 3840 x 2160 (* Only for DSC host) 30 Hz @ 7680 x 4320 60 Hz @ 7680 x 4320 (* Only for DSC host)
Max Display Resolution	7680 x 4320
Power
Power Delivery	Up to 100W via USB-C®
Power Consumption	≤ 900 mA
Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.75A
Output Voltage	Up to 20V
Physical Specifications
Color	Space Grey
Enclosure Type	Aluminum
Cable Length	7.87 in. (200 mm)
Product Height	0.43 in. (11 mm)
Product Width	4.58 in. (116.31 mm)
Product Depth	1.38 in (35mm)
Product Weight	2.6 oz ( 74 g)
Storage Temperature	0 to 155°F (-17 to 68°C)
Storage Humidity	< 85% non-condensing
Operating Temperature	30 to 116°F (-1 to 41°C)
Operating Humidity	< 85% non-condensing

What's in the Box

Warranty

Highlights

Supports resolutions up to 8K60 and 4K144
USB4 8K60 Slim Hub
6-in-1 Functions
Compatible with Thunderbolt 4, Thunderbolt 3 or other USB-C host laptops
Two SuperSpeed+ USB Type-A 10Gbps port to accommodate modern peripherals
Two USB-C port supports up to 10Gbps data transmission
Power Delivery 3.0 offers up to 100W of pass-through charging
Multiple data and display protocols efficiently share bandwidth to offer optimal performance
Wide compatibility with various operating systems and devices
Plug-and-play, no driver installation required
2 Years Local Manufacturer Warranty

Product Descriptions

Specifications

Hardware
Warranty	2 Year Limited
Host Connector	1 - USB4® Male
Power Source	Bus-powered or self-powered
Audio Supported	Yes
Ports	1- USB-C® 3.2 Gen2 10Gbps data transmission 1- USB-C® power delivery 3.0 100W with 10Gbps data transmission 2- USB™ Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI™
Video Output	1 - HDMI™ Female
Performance
Audio Channel	2.1 via HDMI™
Displays Supported	1
Max Data Transfer Rate	10Gbps
Max Display Refresh Rate	144Hz @ 1920 x 1080 144Hz @ 2560 x 1440 60 Hz @ 3840 x 2160 144 Hz @ 3840 x 2160 (* Only for DSC host) 30 Hz @ 7680 x 4320 60 Hz @ 7680 x 4320 (* Only for DSC host)
Max Display Resolution	7680 x 4320
Power
Power Delivery	Up to 100W via USB-C®
Power Consumption	≤ 900 mA
Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.75A
Output Voltage	Up to 20V
Physical Specifications
Color	Space Grey
Enclosure Type	Aluminum
Cable Length	7.87 in. (200 mm)
Product Height	0.43 in. (11 mm)
Product Width	4.58 in. (116.31 mm)
Product Depth	1.38 in (35mm)
Product Weight	2.6 oz ( 74 g)
Storage Temperature	0 to 155°F (-17 to 68°C)
Storage Humidity	< 85% non-condensing
Operating Temperature	30 to 116°F (-1 to 41°C)
Operating Humidity	< 85% non-condensing

What's in the Box

Warranty
