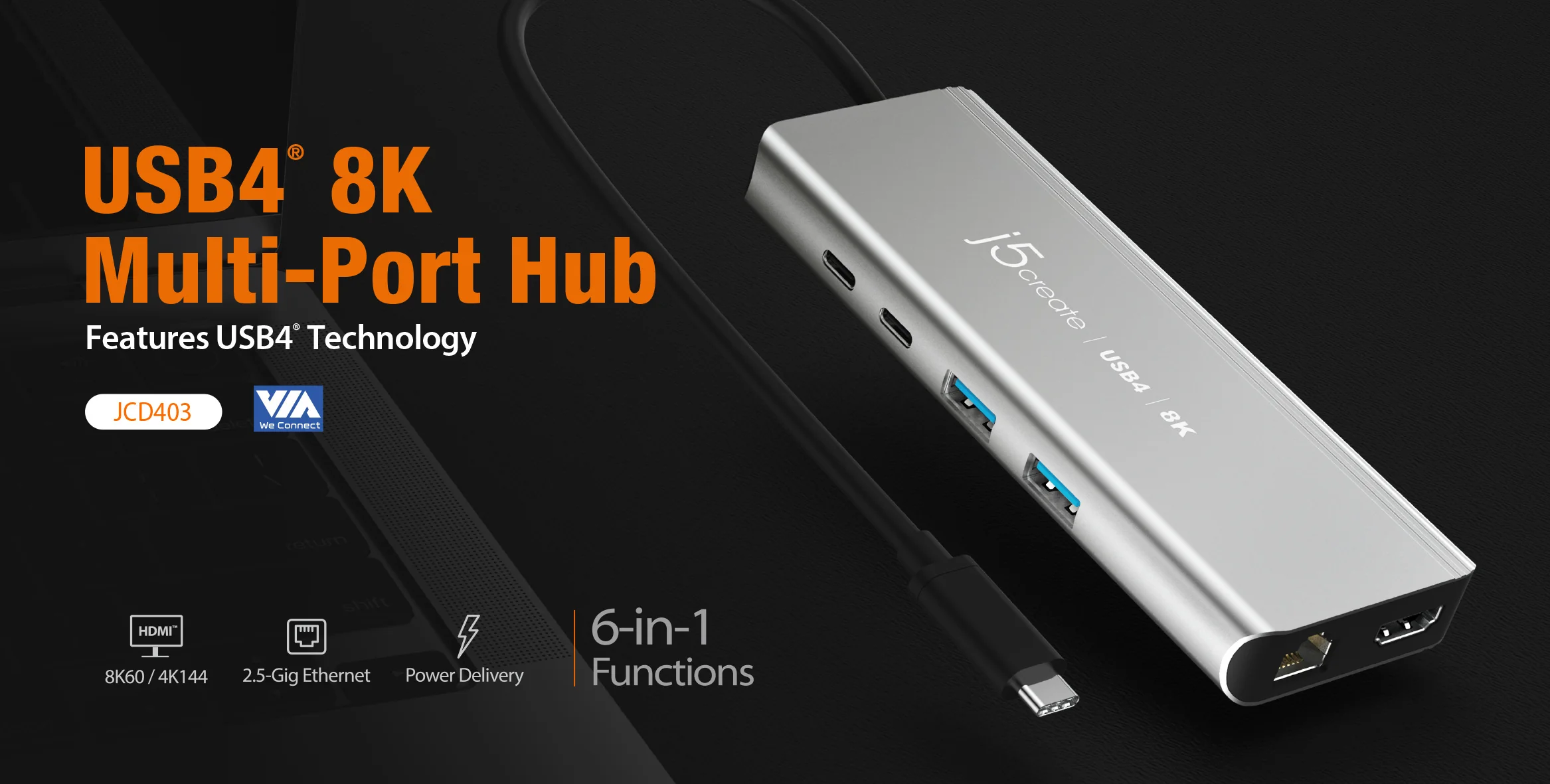

j5create JCD403 USB4 8K Multi Port Hub Supports Up to 4K 60Hz on 8K HDMI Display (Windows / mac-OS Compatible)

Warranty

2 Years Warranty

Host Connector

1 - USB4 Male

Video Output

1 - HDMI Female

Power Source

Bus-powered or self-powered

Network Interface

Yes

Audio Supported

Yes

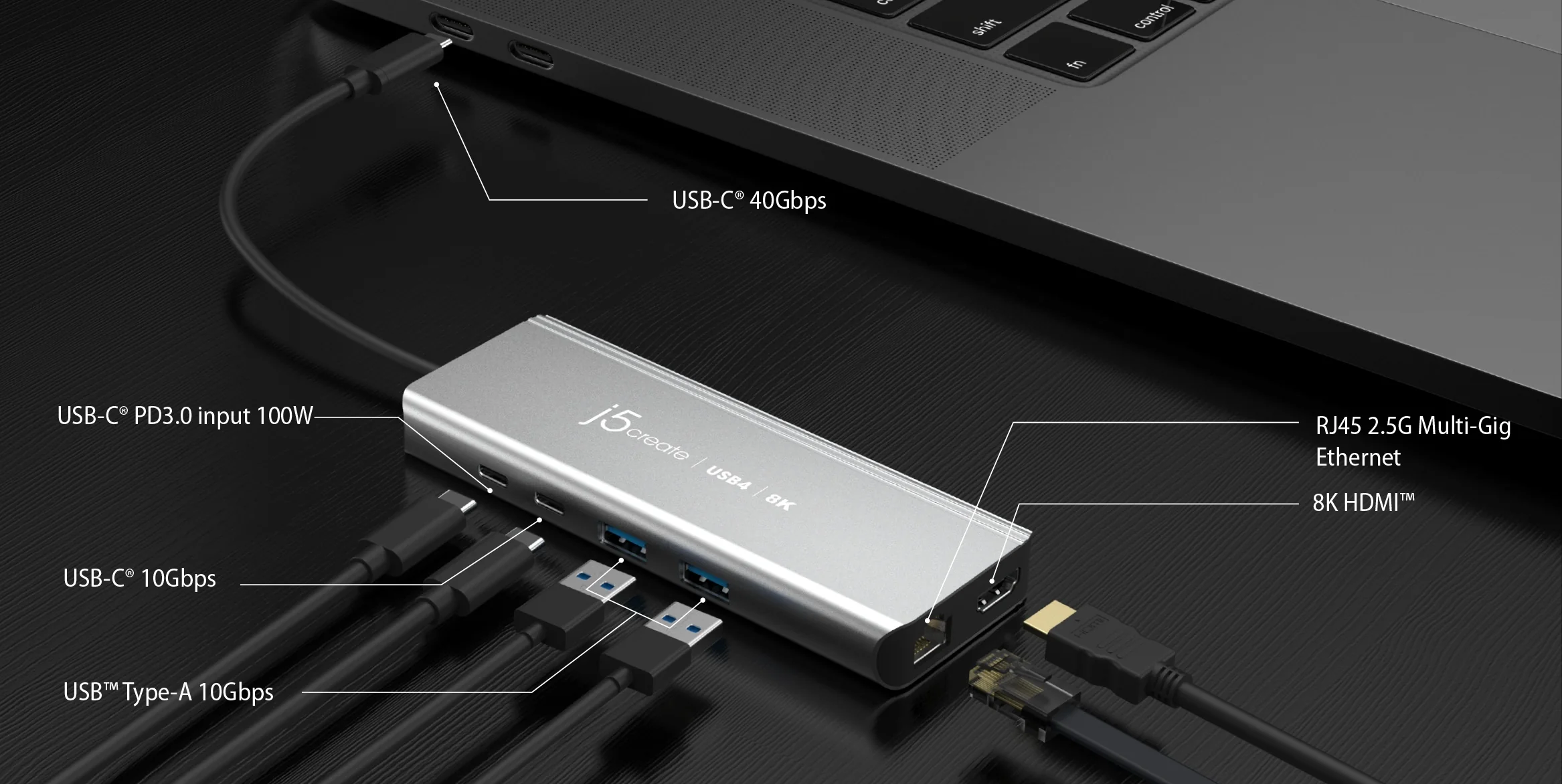

Ports

• 1- USB-C 3.2 Gen2 10Gbps data transmission
• 1- USB-C power delivery 3.0 100W
• 2- USB Type-A 3.2 Gen2 10Gbps data transmission
• 1- 8K HDMI

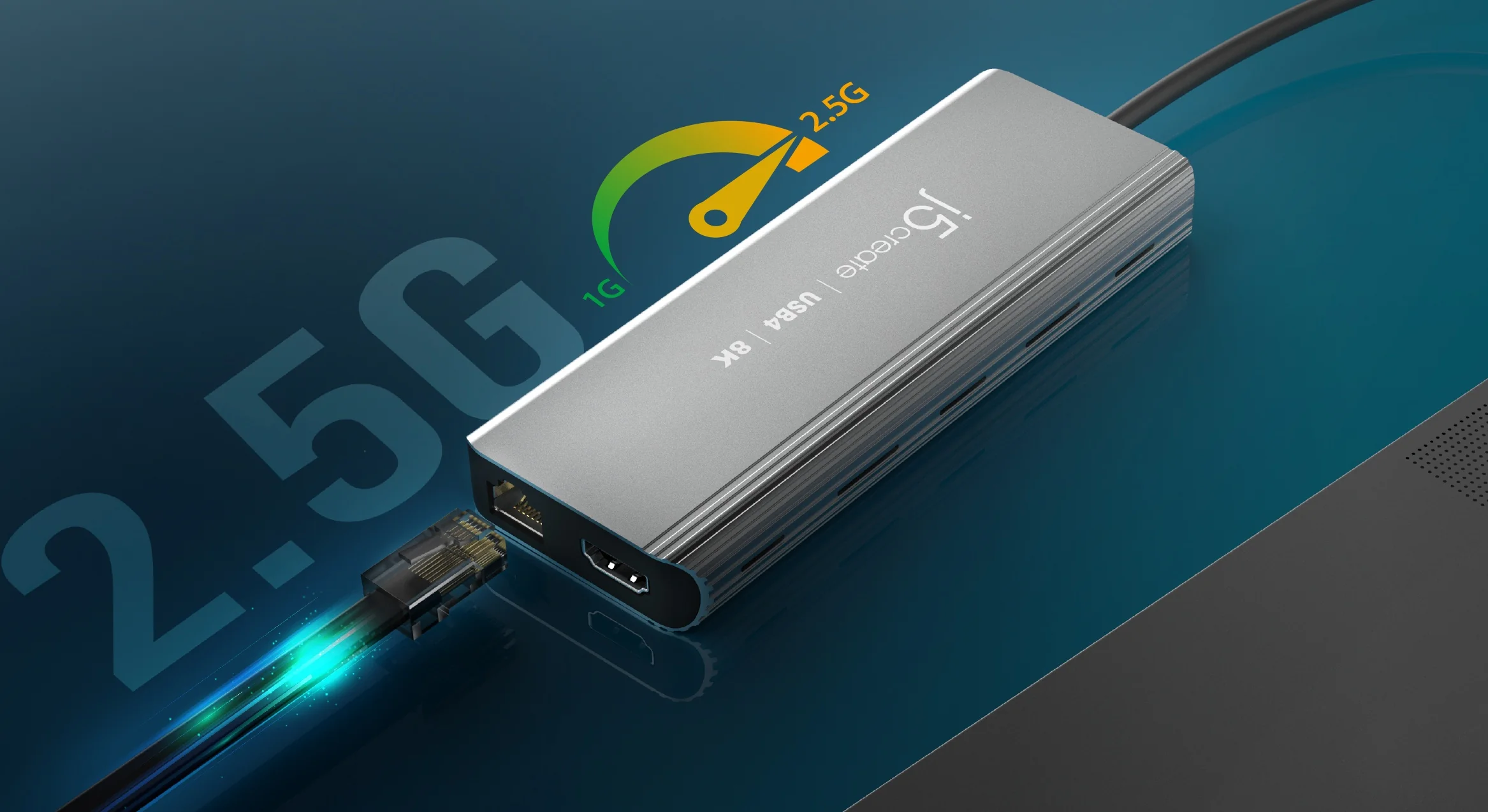

• 1- RJ45 2.5 Gigabit Ethernet

Maximum Display Resolution

7680 x 4320

Maximum Display Refresh Rate

60 Hz 3840 x 2160

144 Hz 3840 x 2160 (* Only for DSC host)

30 Hz 7680 x 4320

60 Hz 7680 x 4320 (* Only for DSC host)

Maximum Data Transfer Rate

10Gbps

Displays Supported

HDMI

Compatible Networks

10M/100M/1000M/2.5 Gigabit

Audio Channel

1 - 2.1 via HDMI

Power Delivery

Up to 100W via USB-C

Power Consumption

≤ 900 mA

Input Current

Up to 5A

Input Voltage

Up to 20V

Output Current

Up to 4.75A

Output Voltage

Up to 20V

Color

Space Grey

Enclosure Type

Aluminum

Cable Length

7.87 in. (200 mm)

Product Height

5.3 in. (135 mm)

Product Width

2 in. (51 mm)

Product Depth

0.59 in. (15 mm)

Product Weight

3.84 oz (109g)

Storage Temperature

0 to 155°F (-17 to 68°C)

Storage Humidity

< 85% non-condensing

Operating Temperature

30 to 116°F (-1 to 41°C)

Operating Humidity

< 85% non-condensing
