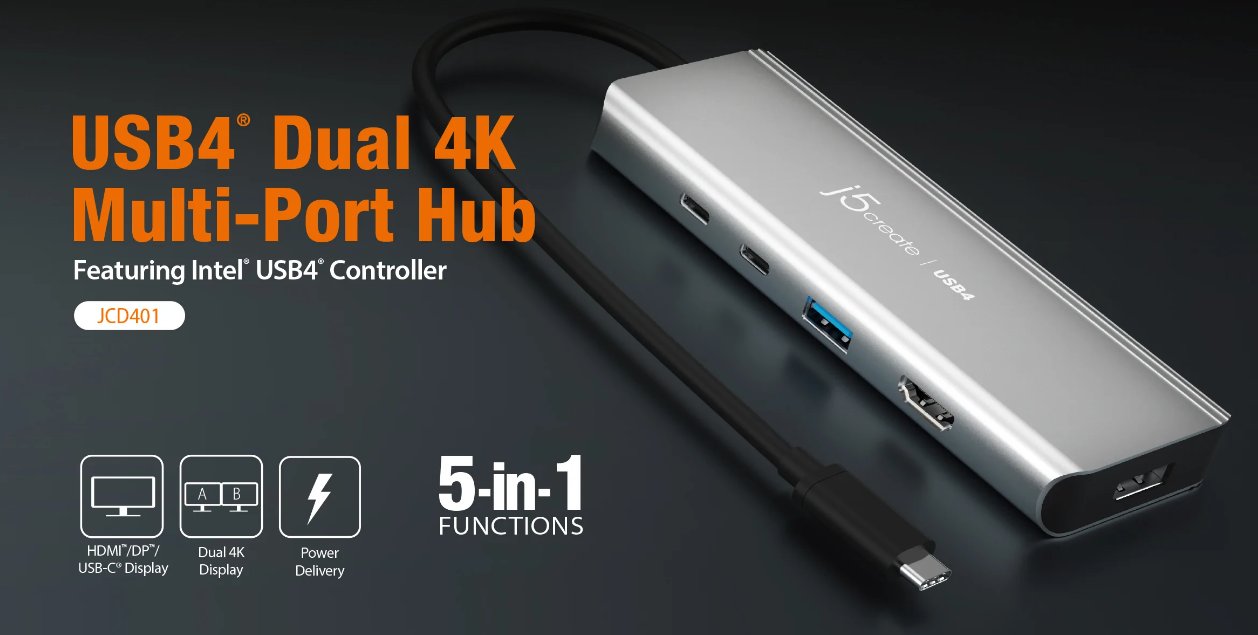

j5create JCD401 5 in 1 USB4 to USB Type-C / HDMI / USB Dual 4K Multi Port Hub

Model

Host Connector

1 - USB4® Male

Video Output

1 - HDMI™ Female

1 - DisplayPort™ Female

1 - USB-C® with DisplayPort™ alt mode

Power Source

Bus-powered or self-powered

Network Interface

No

Audio Supported

No

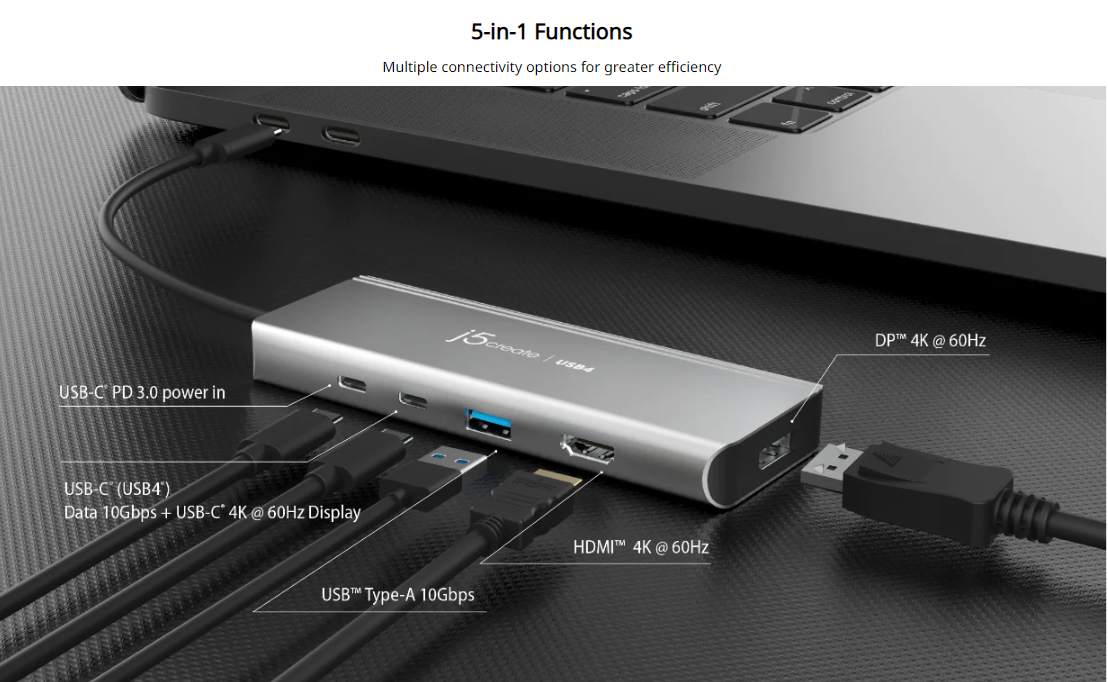

Ports

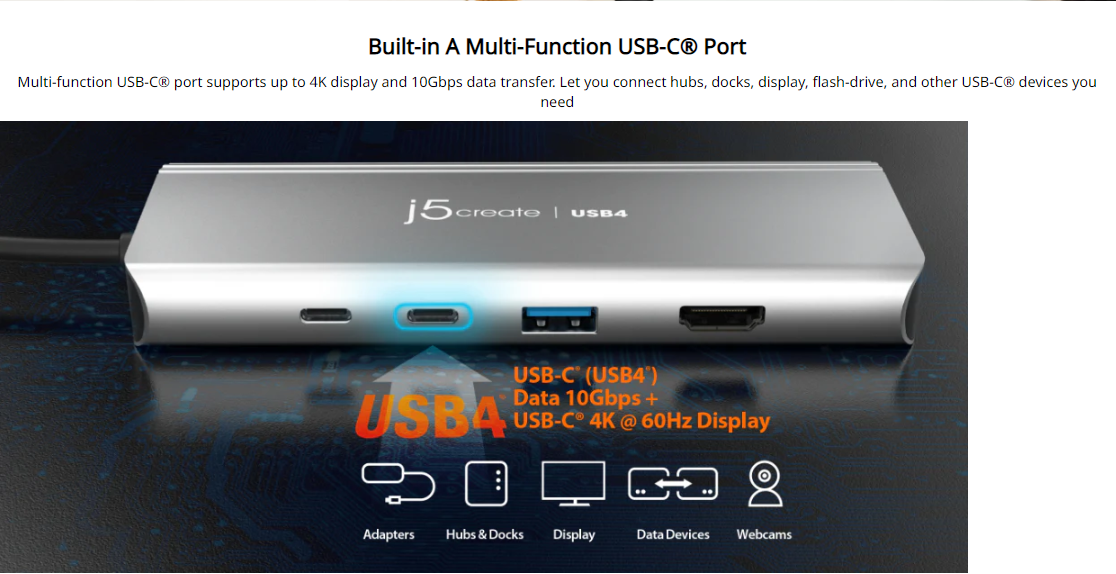

• 1 - USB-C® 3.2 Gen 2 (10Gbps) with DP™ 1.4 Support
• 1 - USB™ Type-A 3.2 Gen 2 (10Gbps)
• 1 - USB-C® Power Delivery 3.0
• 1 - 4K HDMI™
• 1 - DisplayPort™ 1.4

Maximum Display Resolution

3840 x 2160

Maximum Display Refresh Rate

60 Hz

Maximum Data Transfer Rate

10Gbps

Displays Supported

2

Compatible Networks

N/A

Audio Channel

N/A

Power Delivery

Up to 85W via USB-C®

Power Consumption

≤ 900 mA

Input Current

Up to 3A

Input Voltage

Up to 20V

Output Current

Up to 4.25A

Output Voltage

Up to 20V

Color

Space Grey

Enclosure Type

Aluminum

Cable Length

7.87 in. (200 mm)

Product Height

5.3 in. (135 mm)

Product Width

2 in. (51 mm)

Product Depth

0.59 in. (15 mm)

Product Weight

3.84 oz (109g)

Storage Temperature

0 to 155°F (-17 to 68°C)

Storage Humidity

< 85% non-condensing

Operating Temperature

30 to 116°F (-1 to 41°C)

Operating Humidity

< 85% non-condensing
