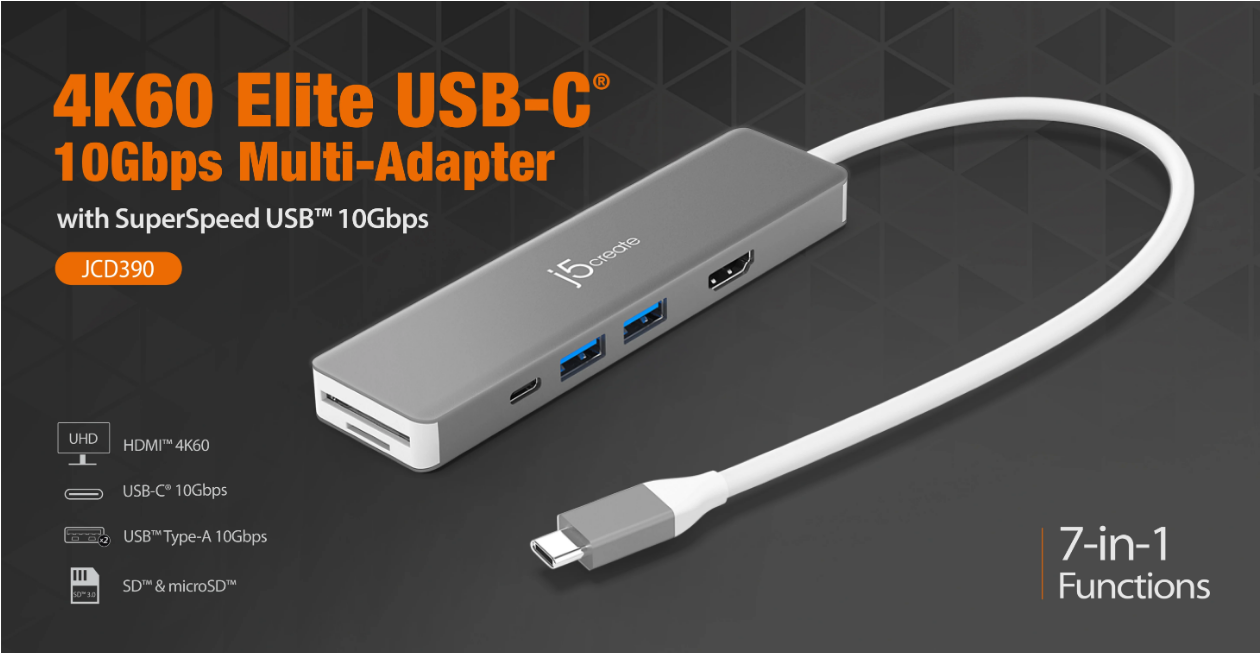

j5create JCD390 7 in 1 4K60 Elite USB-C to 10Gbps Multi-Adapter (Windows / mac-OS / Chrome OS Compatible)-J5-JCD390

Warranty

2 Year Limited

Host Connector

1 - USB-C® Male (PD 3.0 100W)

Video Output

1 - HDMI™ Female

Power Source

Bus-powered or self-powered

Audio Supported

Yes

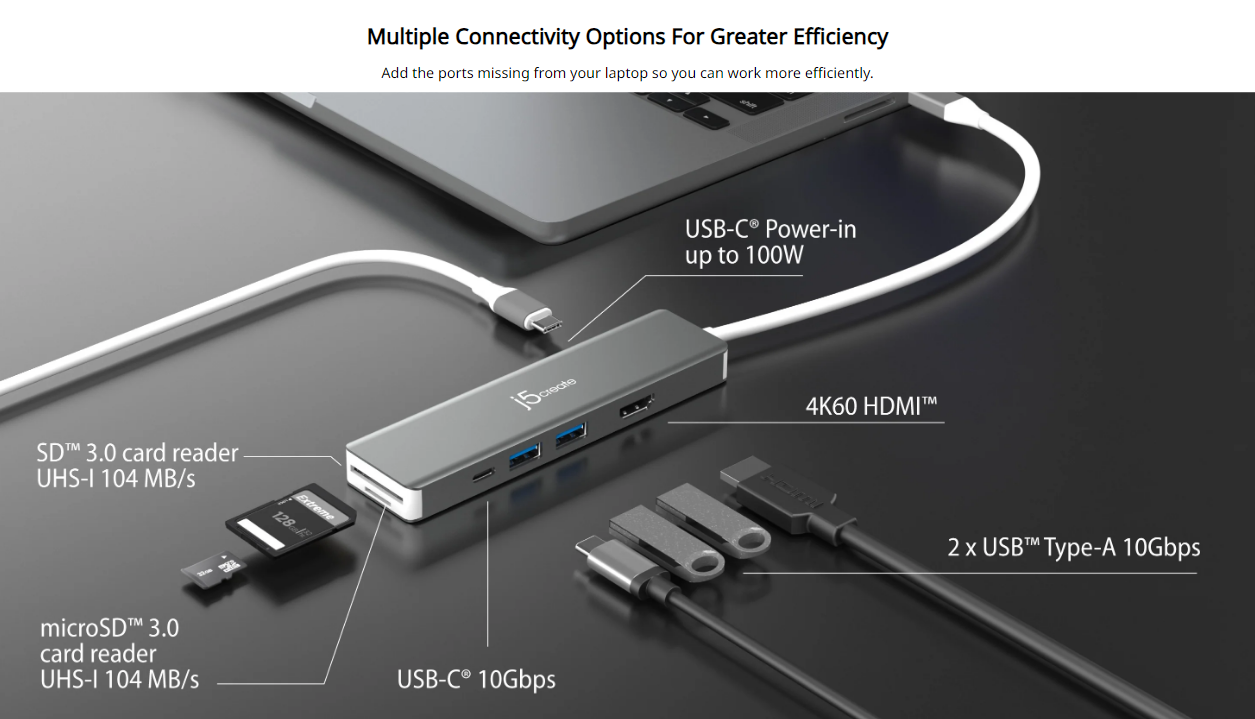

Ports

• • 1 - HDMI™ 4K @ 60 Hz

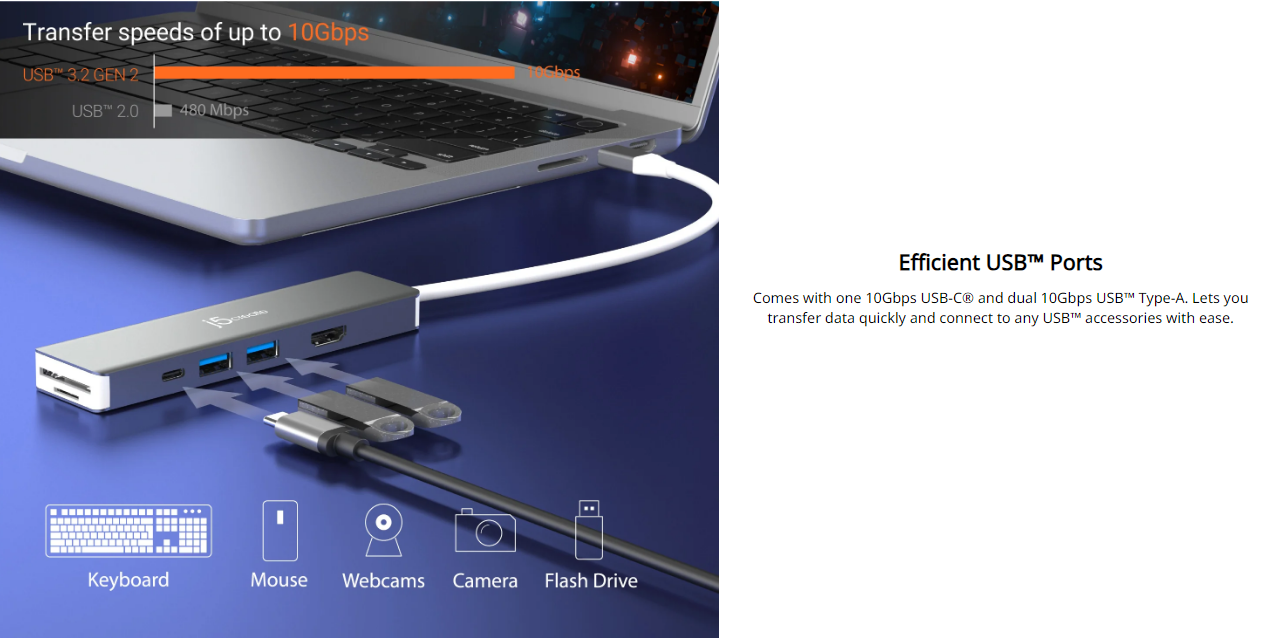

• • 1 - USB-C® 3.2 Gen 2 10Gbps
• • 2 - USB™ Type-A 3.2 Gen 2 10Gbps
• • 1 - USB-C® PD-in with PD 3.0 up to 100W

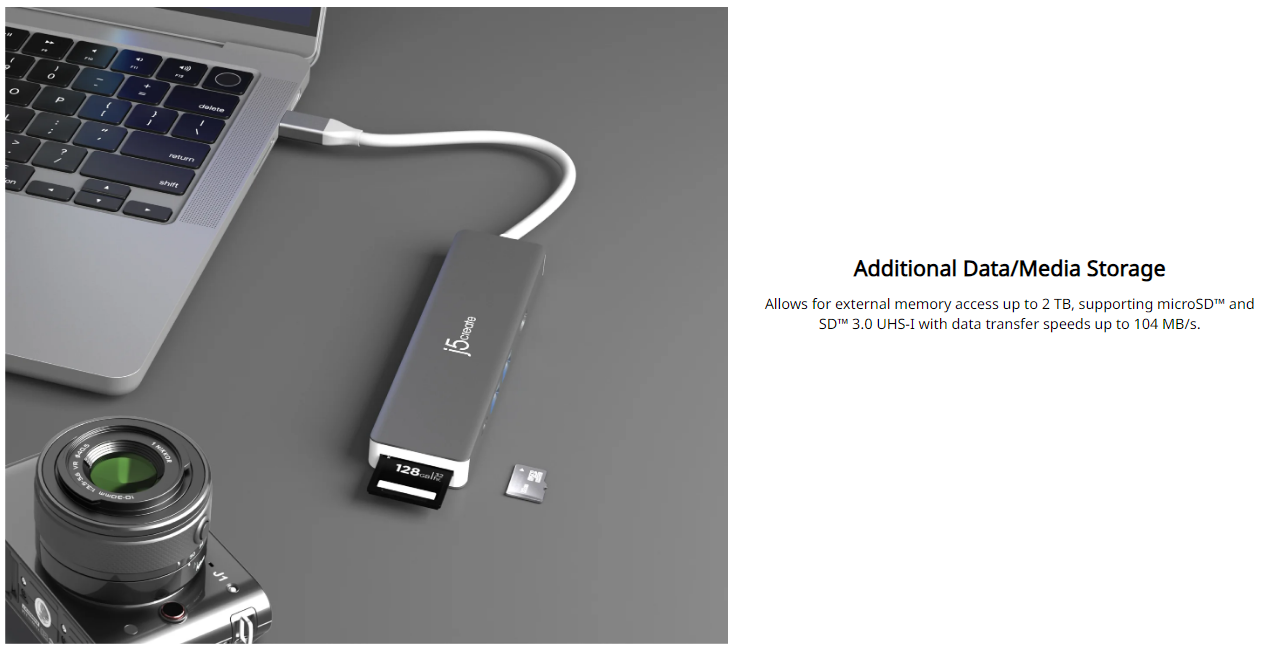

• • 1 - SD™ 3.0 card reader UHS-I 104 MB/s
• • 1 - microSD™ 3.0 card reader UHS-I 104 MB/s

Maximum Display Resolution

3840 x 2160

Maximum Display Refresh Rate

60 Hz

1920 x 1080 @ 144Hz

Maximum Data Transfer Rate

10Gbps

Displays Supported

1

Audio Channel

2.1 via HDMI™

Power Delivery

Up to 100W via USB-C®

Power Consumption

≤ 900 mA

Input Current

Up to 5A

Input Voltage

Up to 20V

Output Current

Up to 4.75A

Output Voltage

Up to 20V

Color

Silver / White

Enclosure Type

Aluminum, ABS Plastic

Cable Length

7.87 in. (200 mm)

Product Height

4.99 in. (126.5 mm)

Product Width

1.28 in. (32.6 mm)

Product Depth

0.48 in. (12.2 mm)

Product Weight

2.49 oz ( 70.5 g)

Storage Temperature

0 to 155°F (-17 to 68°C)

Storage Humidity

< 85% non-condensing

Operating Temperature

30 to 116°F (-1 to 41°C)

Operating Humidity

< 85% non-condensing
