Highlights
Product Description

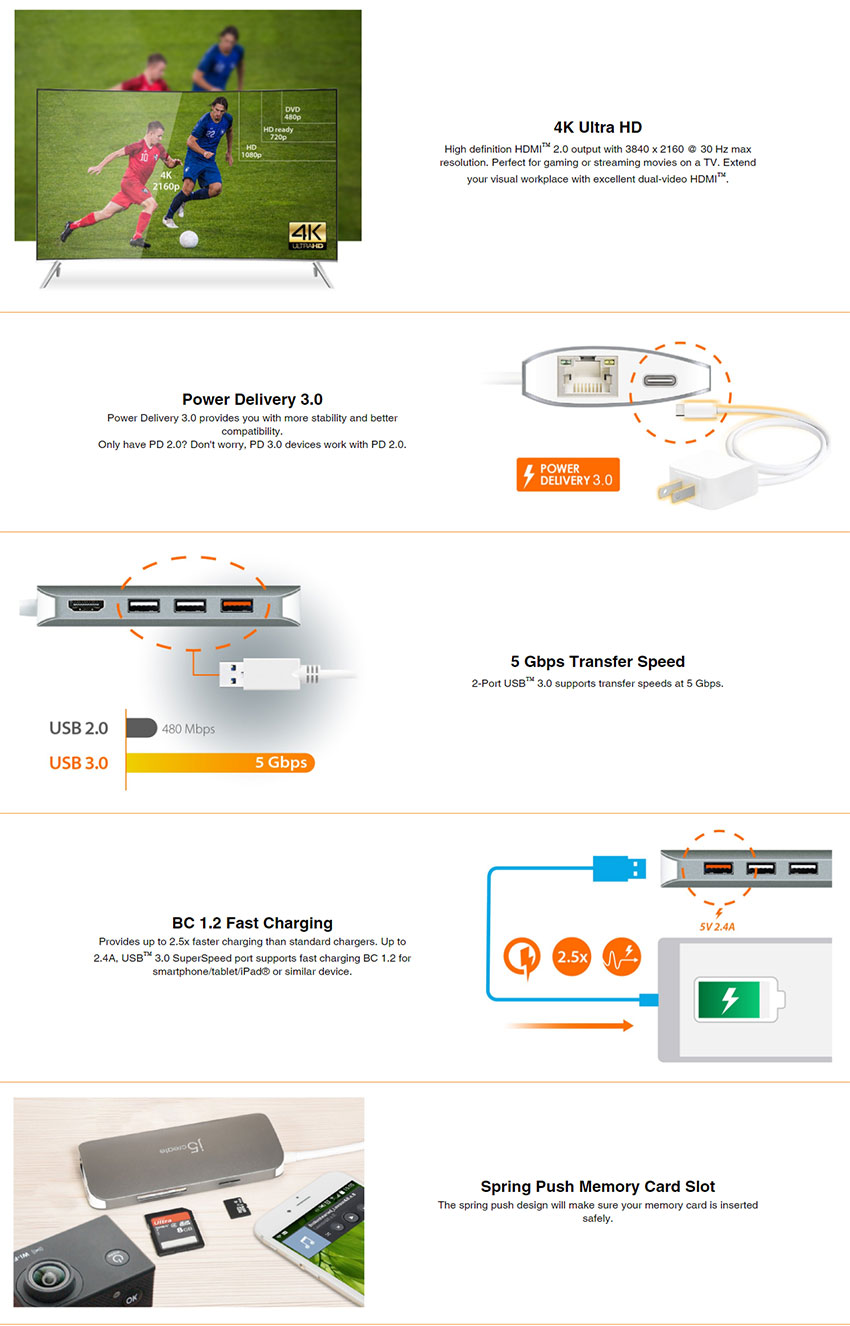

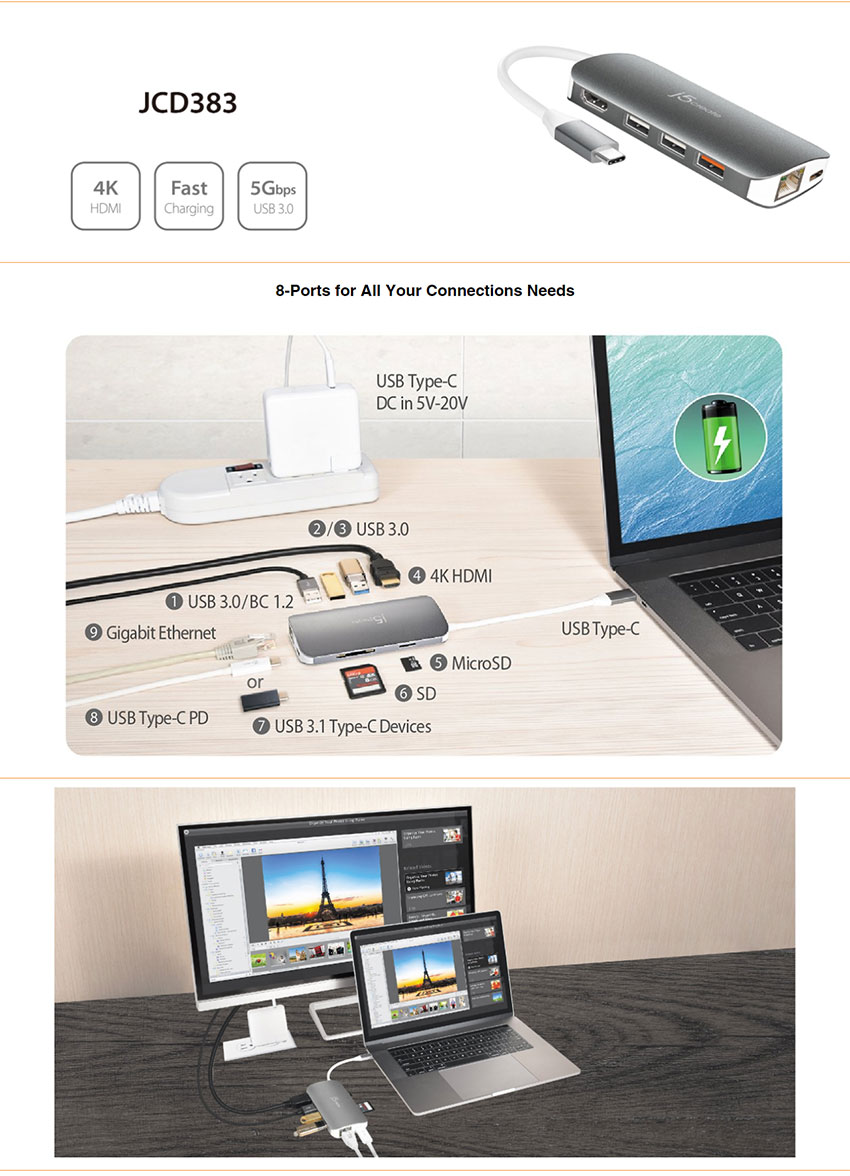

The j5create USB Type-C™ Multi Adapter provides extra connectivity from your computer. These pocket-sized multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™ monitor or Gigabit Ethernet through your USB™ ports. One of the USB™ 3.0 SuperSpeed ports supports fast charging BC 1.2 for smartphone/tablet/iPad®. USB Type-C™ port supports charging, power delivery 3.0 and data transfer. When connected with a power source, the USB Type-C™ input charging port allows you to keep charging your notebook or smartphone. USB Type-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. The USB Type-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C™ offers greater power delivery and faster data transfer rates up to 5 Gbps.


Specifications
| Interface | |
| Host Interface | USB Type-C™ Male Connector |
| Video Interface | HDMI™ Female Connector x 1 |
| USB-C™ Port | USB Type-C™ Female Connector x 1 |
| Ethernet Port |
|
| USB™ Port | USB™ Type-A 3.0 Female Connector |
| Card slots | USB™ 3.0 SD™ x 1 Slot USB™ 3.0 microSD™ x 1 Slot |
| Power | |
| Power Mode | Bus-powered or self-powered |
| Functions | |
| HDMI™ | Display resolution: 4K @ 30 Hz |
| USB-C™ |
|
| USB™ | USB™ Type-A 3.0 port x 3 (USB™ 3.1 Gen 1/5 Gbps) BC 1.2 port x 1 (CDP 1.5A/DCP 2.4A) |
| Ethernet | Transfer Rate:
|
| Physical Specifications | |
| Dimensions | Main body: 0.16 (W) x 0.34 (H) x 0.05 (D) in. 50 (W) x 105 (H) x 16.5 (D) mm |
| Weight | Approximately: 0.23 lbs/105g (including cable) |
| Environmental | |
| Storage Temperature | -10 – 65°C |
| Storage Humidity | < 85% non-condensing |
| Operation Temperature | 0 – 40°C |
| Operation Humidity | < 85% non-condensing |
What's in the box
Warranty
