Search
Highlights
Product Descriptions
Specifications
| Fan Dimension | 120×120×25mm |
| Weight | 170g (Net weight includes the fan only) |
| Rated Voltage | 12VDC |
| Operating Voltage | 10.8～13.2VDC |
| Starting Voltage | 7VDC |
| Rated Current | 0.2A |
| Power Input | 3W |

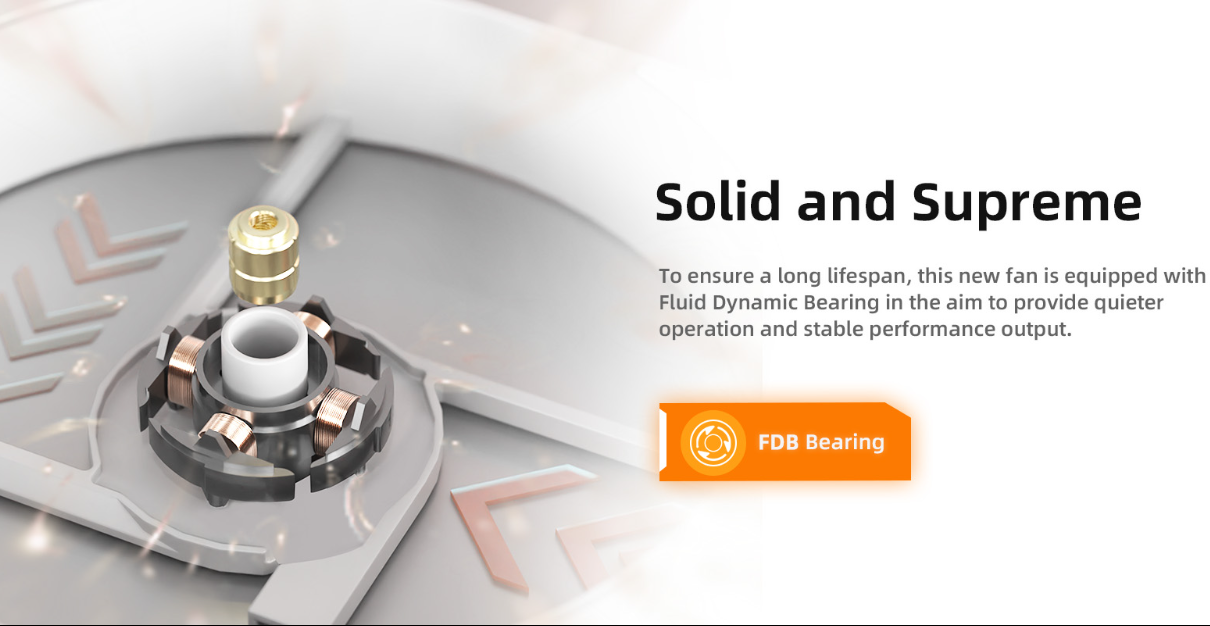

| Bearing Type | Fluid Dynamic Bearing |
| Fan Speed | 500±200~2000RPM±10% |
| Max. Air Pressure | 2.68mmH2O |
| Max. Air Flow | 78.25CFM |
| Noise | 29.85dB(A) Max. |

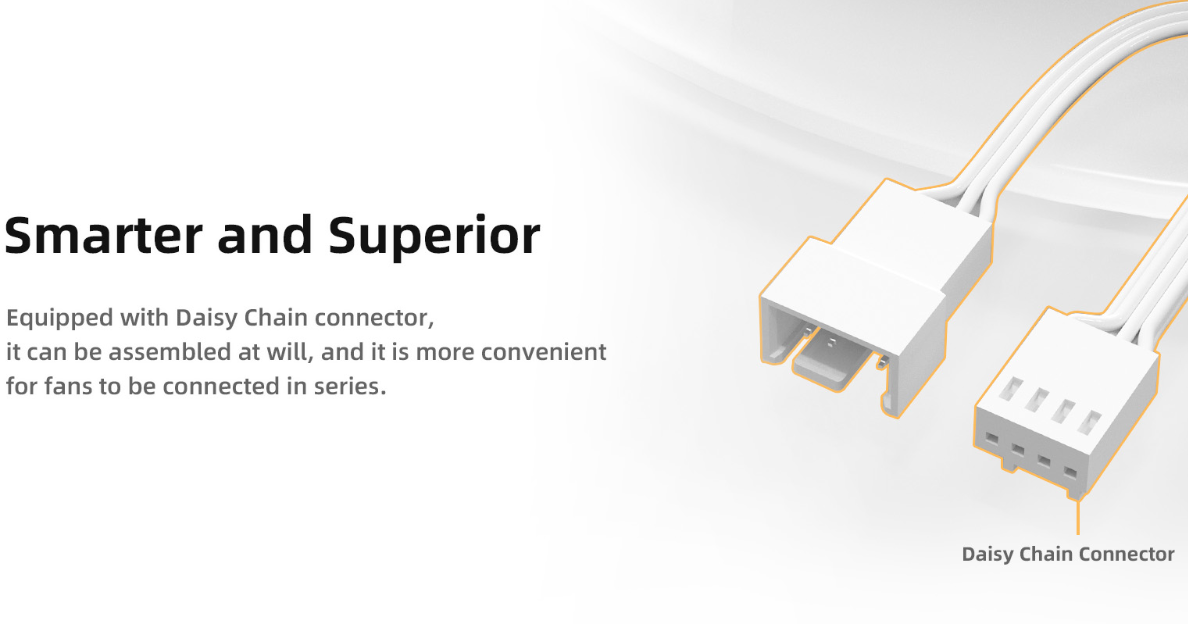

| Connector | 4Pin PWM |
What's in the Box
Warranty
