| Model | CS-H8C (1080P / 4MP) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-Adaptive shutter |
| Lens | 4mm F2.0, viewing angle : 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm F2.0, viewing angle : 28° (Vertical), 52° (Horizontal), 60° (Diagonal) |
| Lens Mount | M12 |

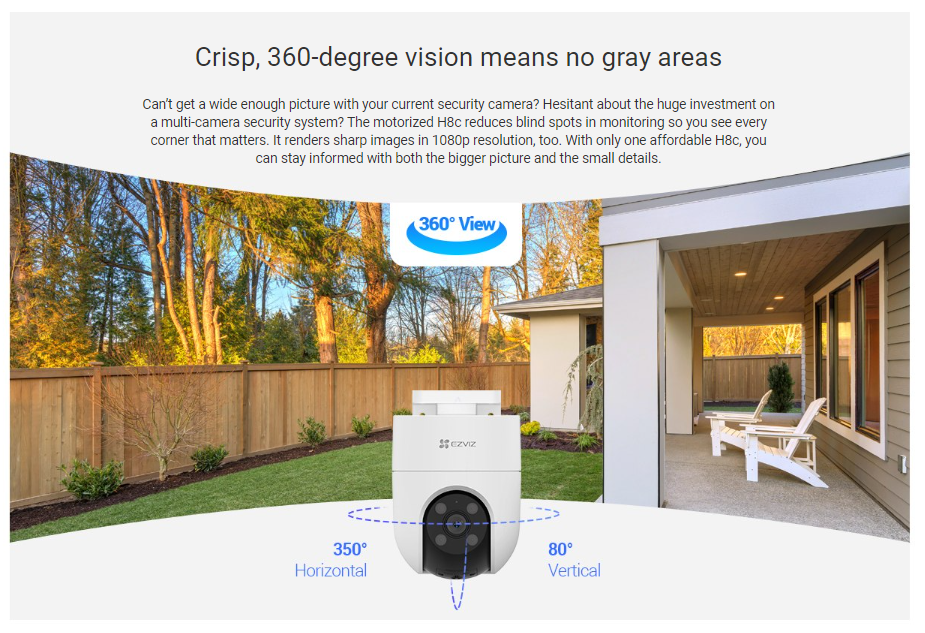

| PT Angle | Pan : 350°, Tilt : 80° |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision | 30 m |
| Video & Audio | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max : 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Network | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | MicroSD card slot (Up to 512GB) |
| Cloud Storage | EZVIZ Cloud Storage (Subscription Required) |
| General | |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 12.0 W |
| Product Dimensions | 100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch) |
| Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
| Net Weight | 0.42kg (14.80 oz) |
| Package Contents | H8C Camera Screw Kit Waterproof Kit Drill Template Power Adapter Regulatory Information Quick Start Guide |
| Certificates | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
| Warranty | 2 Years Ezviz Local Manufacturer Warranty |
