Specifications
| Model | CS-H8-R100-1J5WKFL |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm - F1.6, Viewing angle: 46° (Vertica), 89° (Horizontal), 104° (Diagonal) 6mm - F1.6, Viewing angle:28° (Vertica), 54° (Horizontal), 62° (Diagonal) |

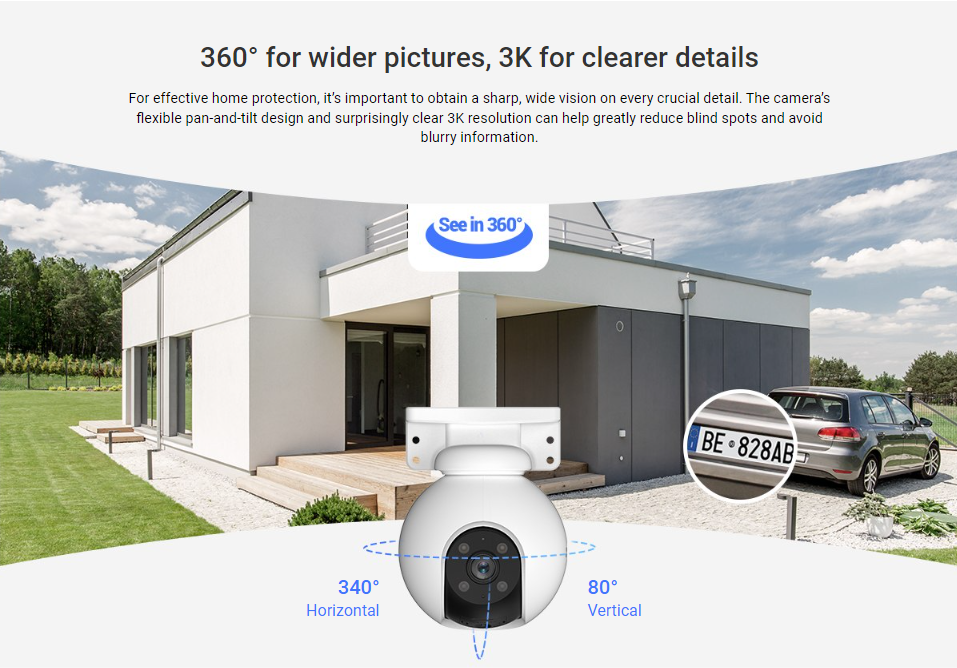

| PT Angle | Pan: 340°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision | Up to 30m / 98ft |
| Video & Audio | |
| Max. Resolution | 2880 × 1620 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265/H.264 |
| Video Bit Rate | Quad HD+; Full HD; Hi-Def; Standard. Adaptive bit rate |
| Max. Bitrate | 4 Mbps |
| Function | |
| Smart Alarm | AI Powered Human / Vehicle Detection / Waving-Hand Recognition &Control |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Network | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| Storage | |
| Local Storage | Supports Micro SD card (Up to 512GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20 °C to 50°C ( -4 °F to 122 °F ), humidity 95% or less (non-condensing) |

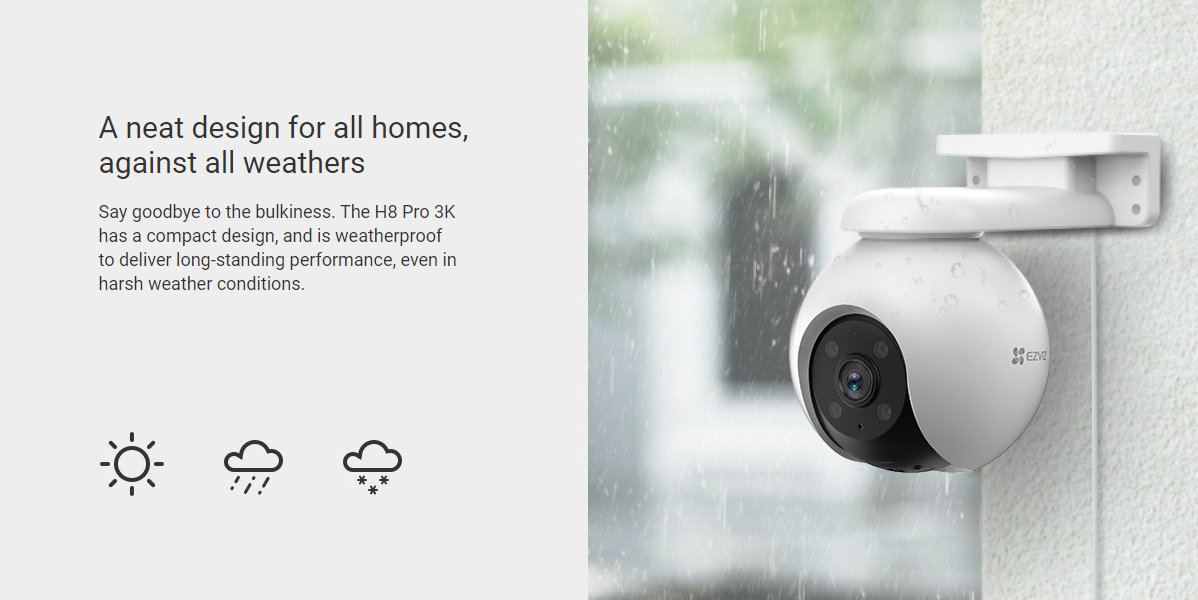

| IP Grade | Weatherproof Design |
| Power Supply | DC 5V / 1A |
| Power Consumption | MAX. 6W |
| Product Dimensions | 116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch) |
| Packaging Dimensions | 187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch) |
| Net Weight | 592 g (20.88 oz) |
| Weight (With Package) | 943 g (33.26 oz) For EU Standard Version |
| Package Contents | H8 Pro 3K Camera Power Adapter Screw Kit Waterproof Kit Drilling Template Regulatory Information Quick Start Guide |
| Certificates | UL / FCC / CE / WEEE / RoHS / UKCA |
| Warranty | 2 Years Ezviz Local Manufacturer Warranty |
