Cooler Master Elite 500 Mid Tower Case Casing With ODD Steel / Without ODD TG Left Panel

RM223.00 - RM238.00

Voucher

RM10.00 OFF
RM20.00 OFF
RM50.00 OFF
RM100.00 OFF
RM120.00 OFF
RM150.00 OFF

Product SKU

CM-E500-KXXN-S00

Brand

Cooler Master

color_family

Without ODD TG
With ODD Steel

Please select any variant

Quantity

4 unit available

Please input quantity

Description
Product Reviews

Highlights

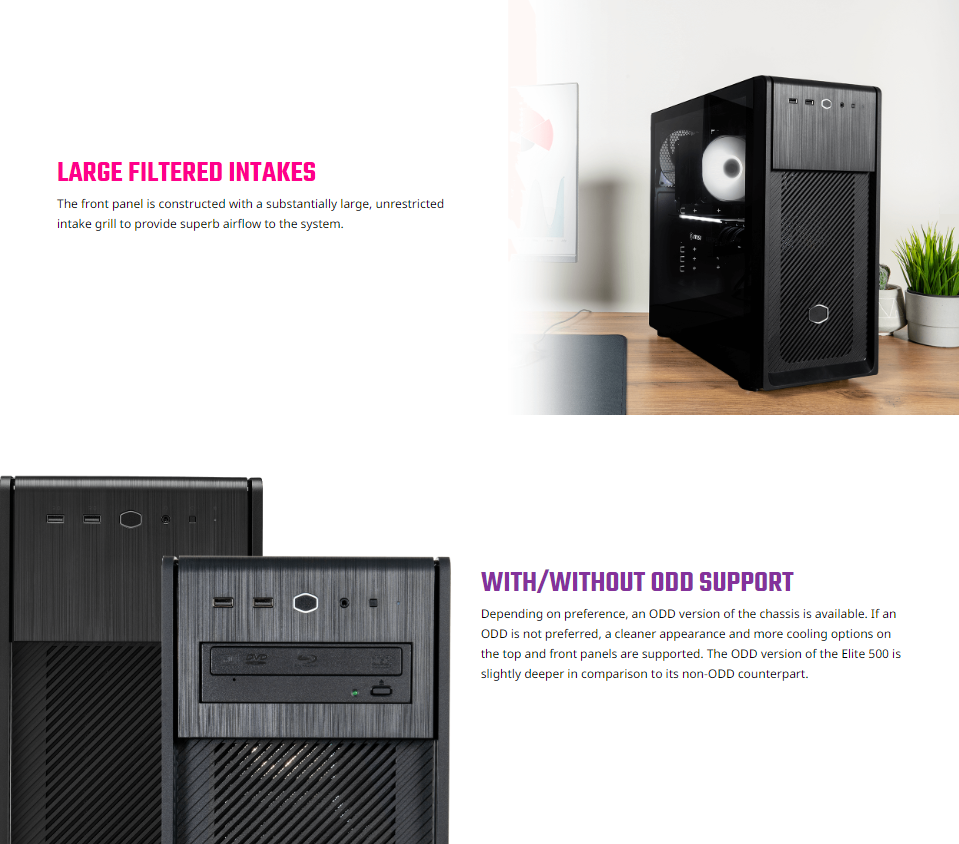

Large Filtered Intakes
With/Without ODD Support

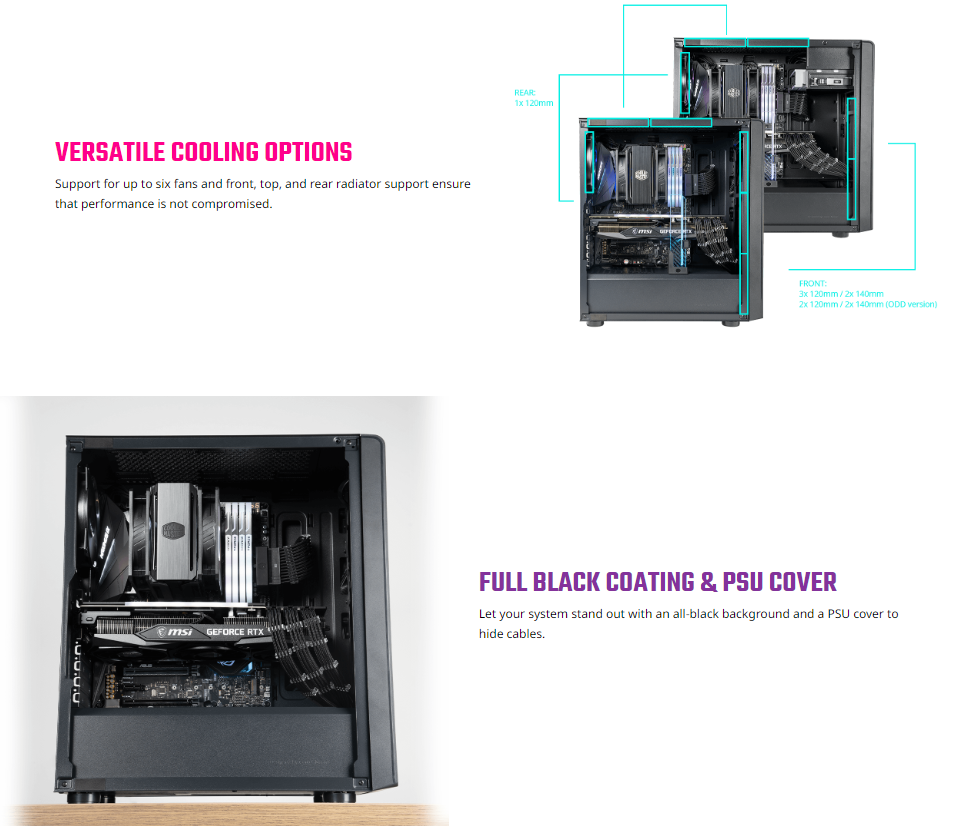

Versatile Cooling Options
Full Black Coating & PSU Cover

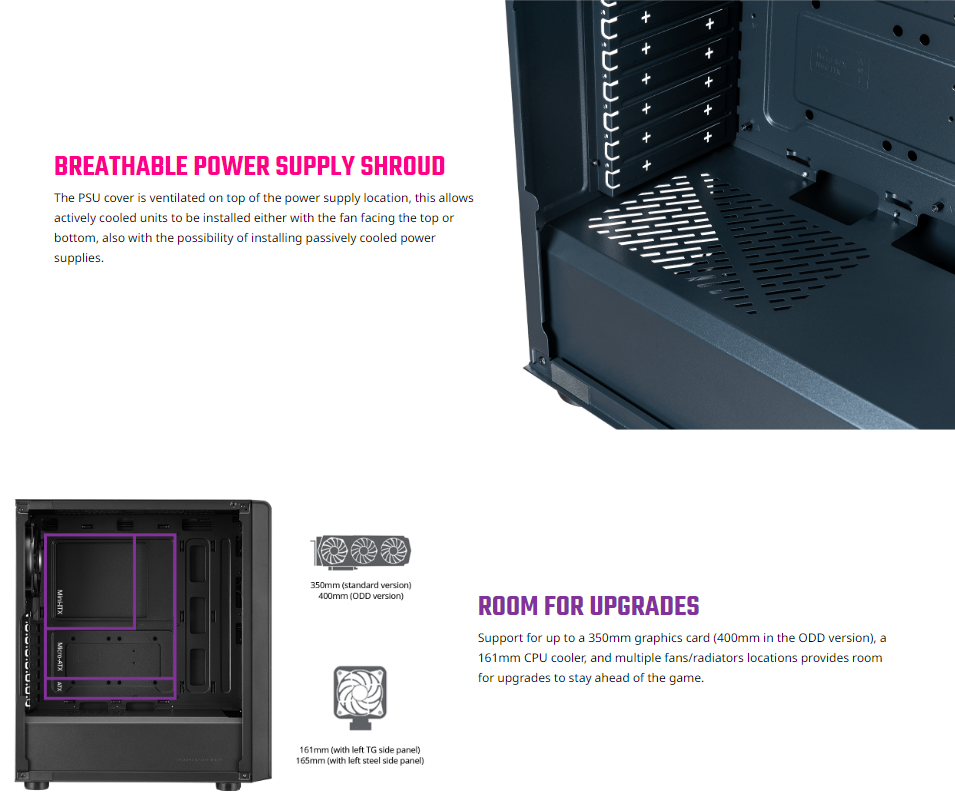

Breathable Power Supply Shroud
Room For Upgrades

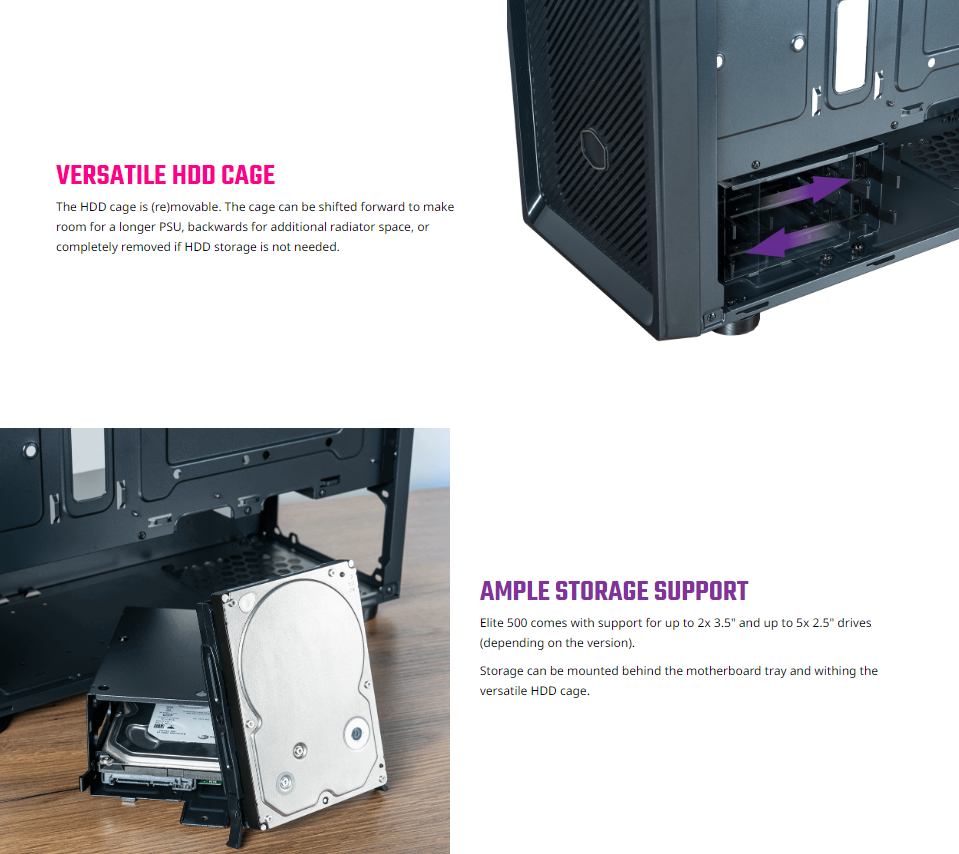

Removable HDD Cage
2 Years Cooler Master Local Manufacturer Warranty

Product Descriptions

Specifications

MODEL	E500-KGNN-S00 (TG), E500-KN5N-S00 (Steel, ODD)
Motherboard Support	Mini ITX, Micro ATX, ATX
Materials	Steel, Plastic, Tempered Glass
Dimensions (L x W x H)	409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)
Volume	37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
Expansion Slots	7
Kensington Lock	37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
5.25" Drive Bays	0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)
2.5" / 3.5" Drive Bays (Combo)	2
2.5" Drive Bays	3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)
I/O Panel	2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Rear	1x 120mm
Fan Support - Top	2x 120mm, 2x 140mm
Fan Support - Front	2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
Fan Support - Rear	1x 120mm
Radiator Support - Front	120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
Radiator Support - Top	120 / 240mm (32mm max motherboard component height)
Radiator Support - Rear	120mm
Clearance - CPU Cooler	TG: 161mm, Steel: 163mm
Clearance - PSU	160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)
Clearance - GFX	350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)
Cable Routing	18.5mm
Dust Filters	Front, Top, Bottom
Series	Elite Series
Size	Mid Tower
Power Supply Support	Bottom Mount, ATX
Remark	2 Years Cooler Master Local Manufacturer Warranty

What's in the Box

1 x Cooler Master Elite 500 Mid Tower Case Casing With ODD Steel / Without ODD TG Left Panel
1 x Free Exclusive Mystery Gift

Warranty

2 Years Cooler Master Local Manufacturer Warranty

Highlights

Large Filtered Intakes
With/Without ODD Support
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
Room For Upgrades
Removable HDD Cage
2 Years Cooler Master Local Manufacturer Warranty

Product Descriptions

Specifications

MODEL	E500-KGNN-S00 (TG), E500-KN5N-S00 (Steel, ODD)
Motherboard Support	Mini ITX, Micro ATX, ATX
Materials	Steel, Plastic, Tempered Glass
Dimensions (L x W x H)	409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)
Volume	37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
Expansion Slots	7
Kensington Lock	37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
5.25" Drive Bays	0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)
2.5" / 3.5" Drive Bays (Combo)	2
2.5" Drive Bays	3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)
I/O Panel	2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Rear	1x 120mm
Fan Support - Top	2x 120mm, 2x 140mm
Fan Support - Front	2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
Fan Support - Rear	1x 120mm
Radiator Support - Front	120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
Radiator Support - Top	120 / 240mm (32mm max motherboard component height)
Radiator Support - Rear	120mm
Clearance - CPU Cooler	TG: 161mm, Steel: 163mm
Clearance - PSU	160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)
Clearance - GFX	350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)
Cable Routing	18.5mm
Dust Filters	Front, Top, Bottom
Series	Elite Series
Size	Mid Tower
Power Supply Support	Bottom Mount, ATX
Remark	2 Years Cooler Master Local Manufacturer Warranty

What's in the Box

1 x Cooler Master Elite 500 Mid Tower Case Casing With ODD Steel / Without ODD TG Left Panel
1 x Free Exclusive Mystery Gift

Warranty

2 Years Cooler Master Local Manufacturer Warranty
