Product Description
| Measuring range | ±10kPa |
| Accuracy | ±0.3%FSO(25℃) |
| Repeatability | ±0.2%(Maximum＋/－0.5 FSO) |
| Linearity/hysteresis | ±0.29 FSO |
| Response | Typical 0.5 s |

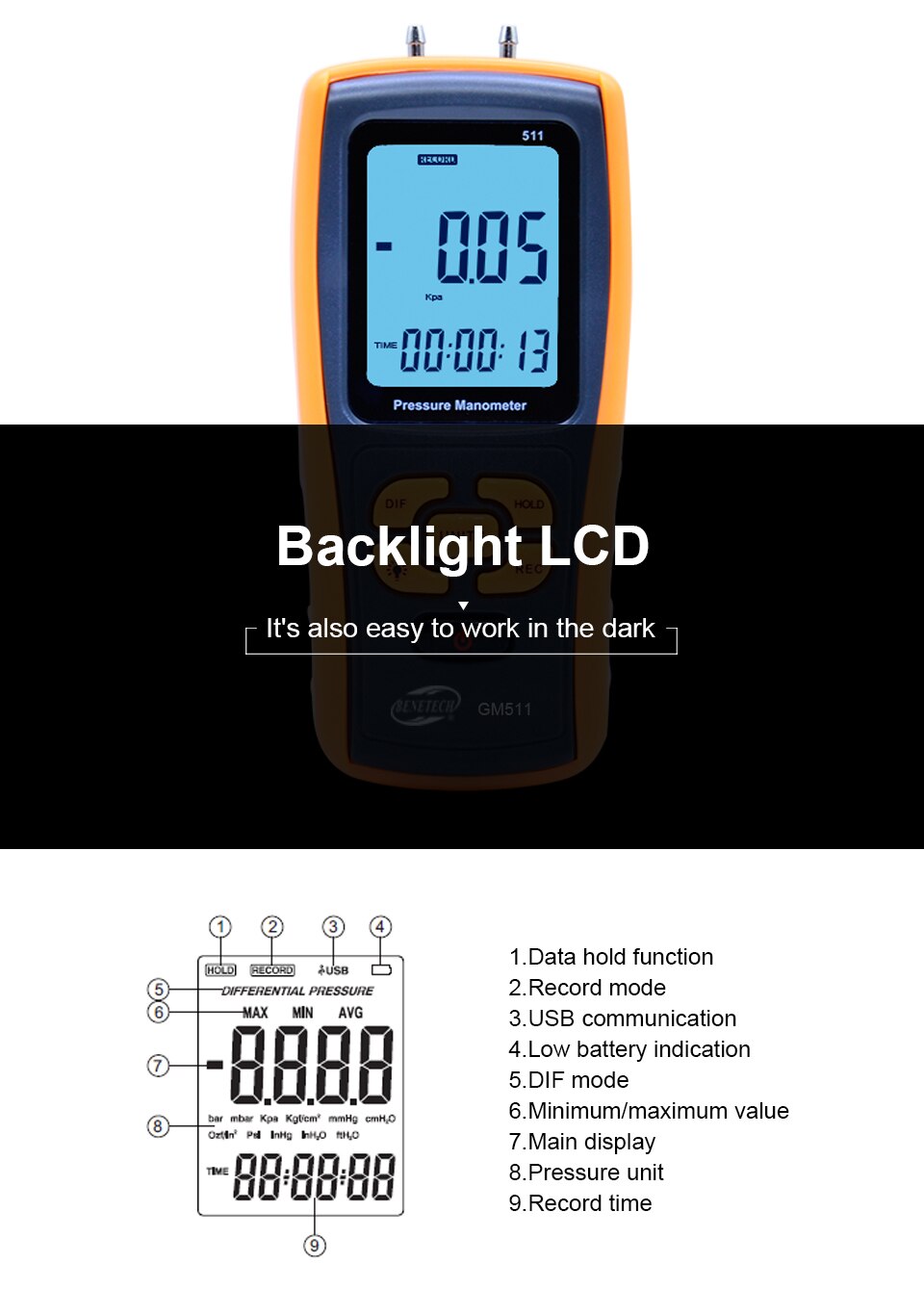

| Low battery indication | Yes |
| Up overload indication | Err1 |
| Down overload indication | Err2 |
| Operating temperature | 0~50℃ |
| Storage temperature | -10~60℃ |
| Power supply | 1.5V AAA battery*4 |

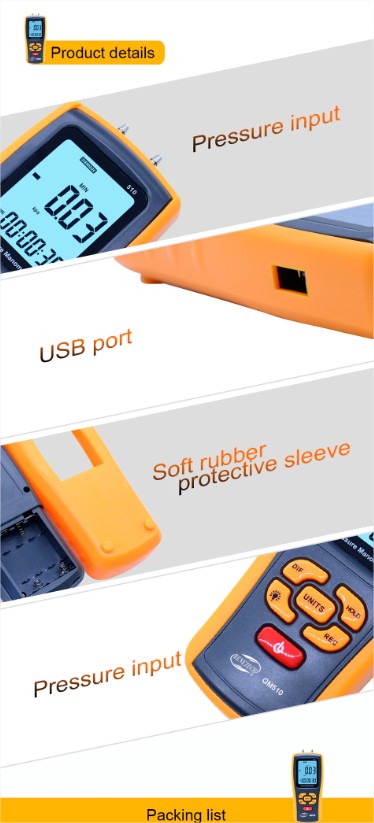

| USB communication | Yes |

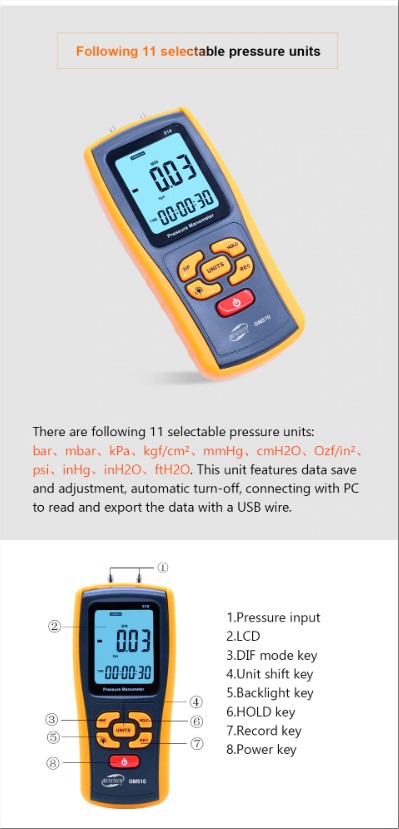

| Unit | Range | Resolution | Maximum pressure |
| bar | 0.100 | 0.001 | 0.500 |
| mbar | 100.0 | 0.1 | 500.0 |
| kPa | 10.00 | 0.01 | 50 |
| kgf/cm² | 0.101 | 0.001 | 0.509 |
| mmHg | 75.0 | 0.1 | 375.0 |
| cmH2O | 101.9 | 0.1 | 509.5 |
| Ozf/in² | 23.20 | 0.01 | 116.00 |
| psi | 1.450 | 0.001 | 7.251 |
| inHg | 2.95 | 0.01 | 14.76 |
| inH2O | 40.1 | 0.1 | 200.5 |
| ftH2O | 3.34 | 0.01 | 16.70 |
| Environmental temperature compensation | |||
What's in the Box
