Product Description
Size : 50 x 50 MM / 145 x 145 MM
Thickness: 0.5 MM / 1.0 MM / 1.5 MM
Material : APT2560
Color : Blue
Hardness : 25 Shore OO
Continuous Use Temperature : -40~200 ℃
Specific Gravity : 3.2 g/cm³
Thermal Conductivity : 6.0 W/(m K)
Dielectric Constant @1MHz : 13.0264
Volume Resistance : 1 X 10^12 Ω-cm
Flammability Rating : UL 94 V-0
The thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads.
In a test conducted by PC Games Hardware (11/2018), the pads‘ "excellent processability and reusability in every respect" were praised. Because of its fair pricing and good performance, our thermal pad was recommended as a "price-performance recommendation".

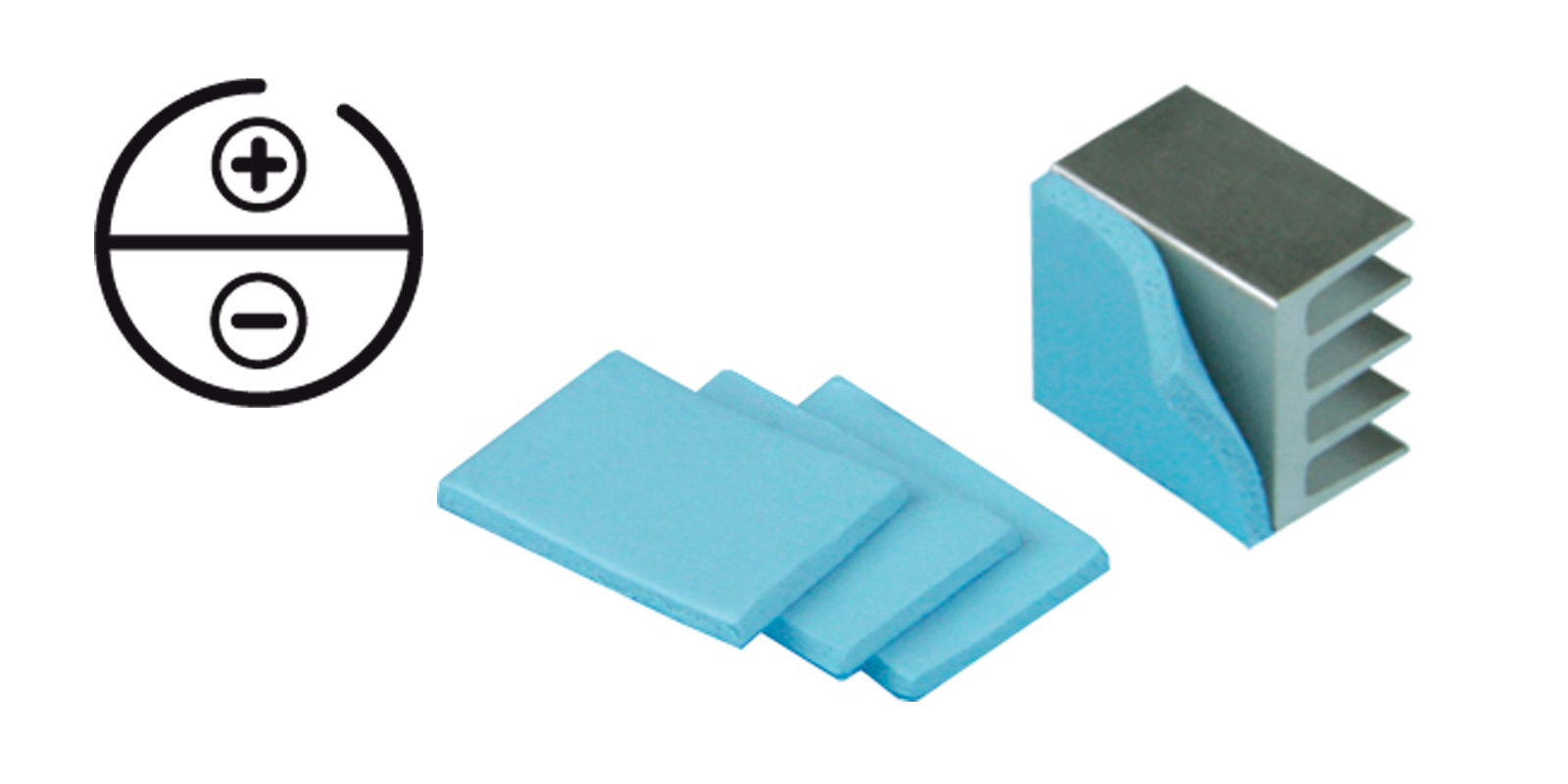

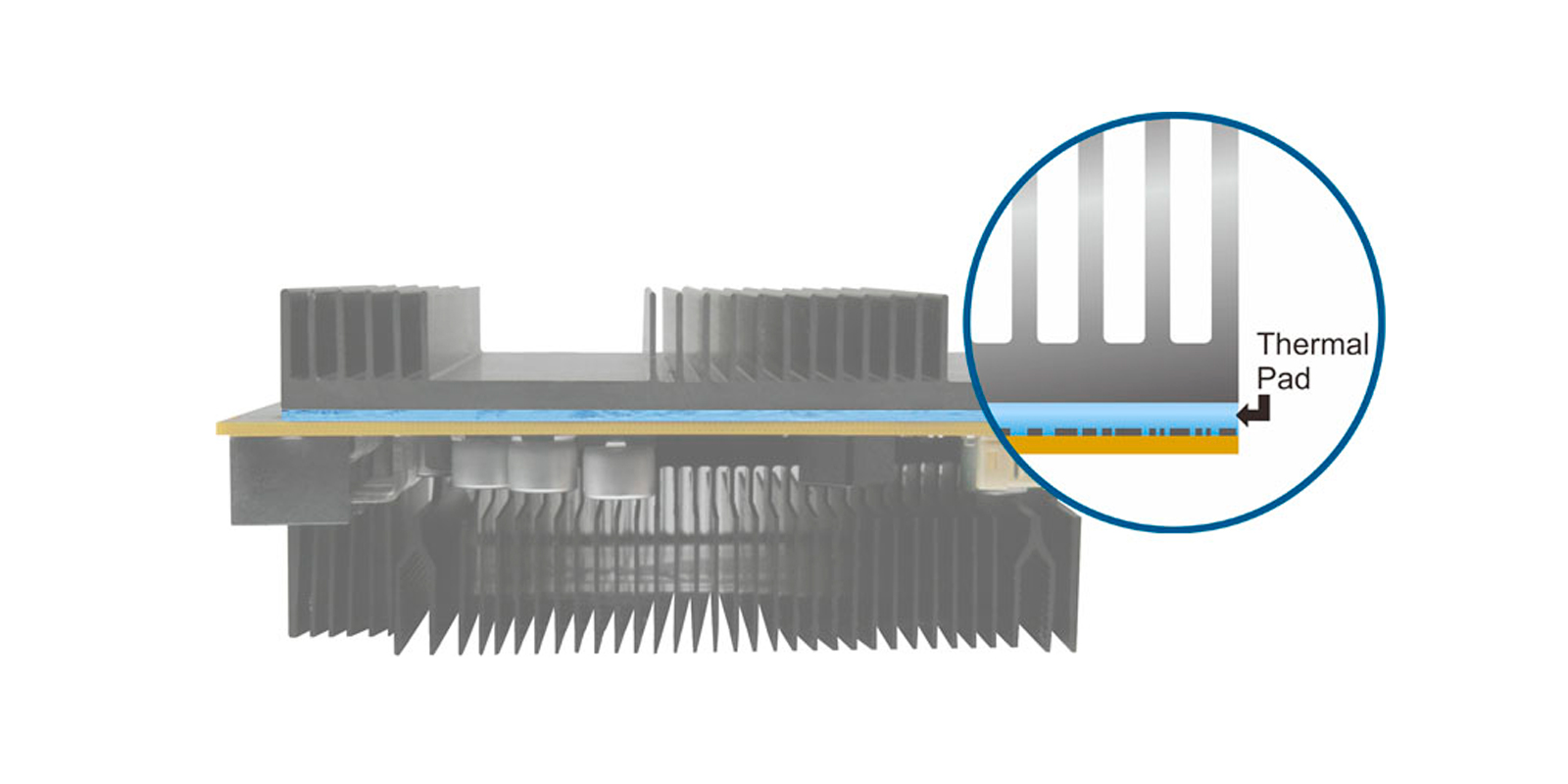

Thanks to its low rigidity and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.
The ARCTIC Thermal Pads are non-adhesive and can therefore be placed precisely.
The pad contains no metal particles, is electrically insulating and not capacitive. This makes handling them safe, since contact with electrical parts does not lead to damage.

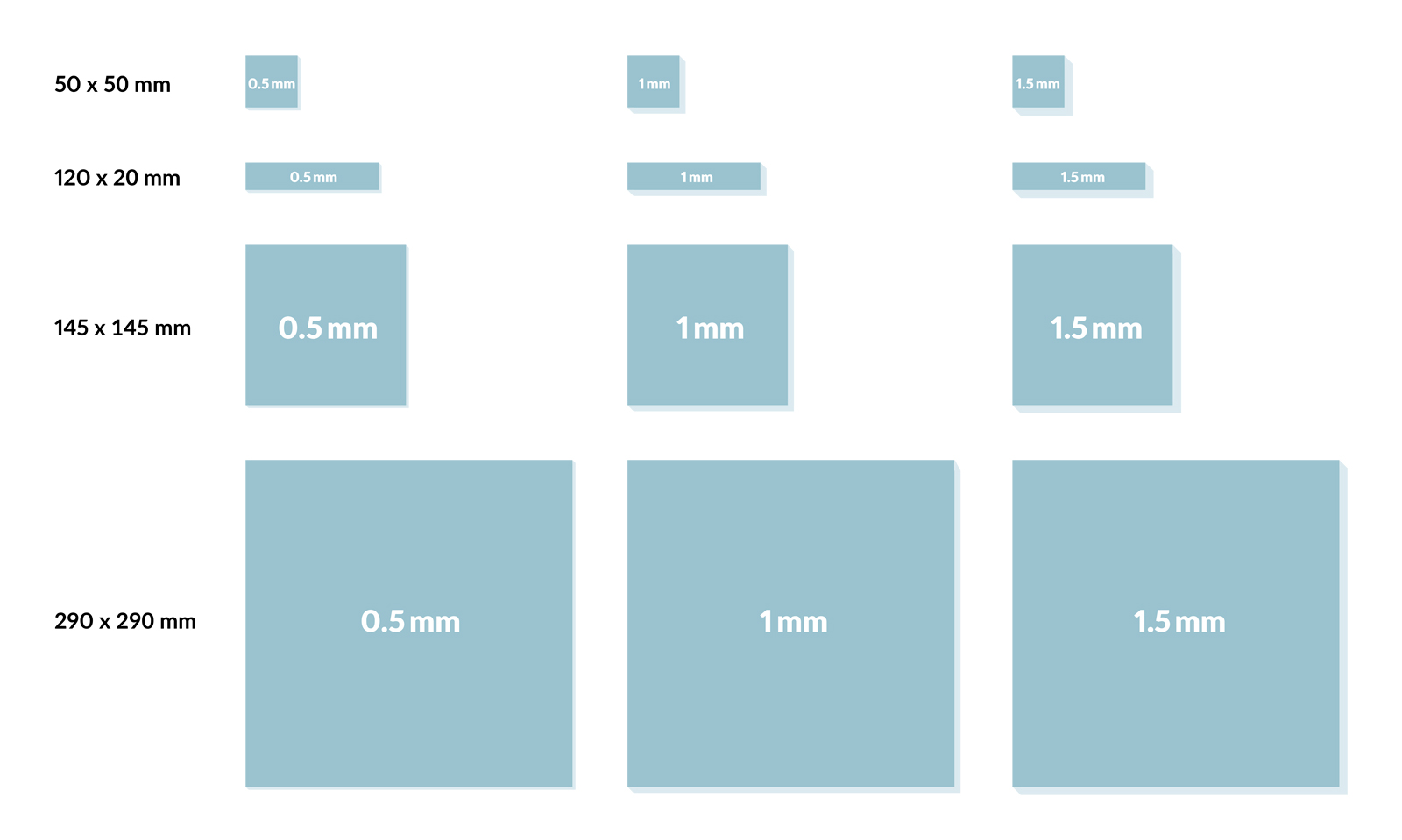

Our thermal pads are available in 0.5 mm, 1.0 mm and 1.5 mm. Its slimness makes the 0.5 mm variant an excellent alternative to heat-conducting film. Depending on the thickness of the pads, they are available in different sizes.
